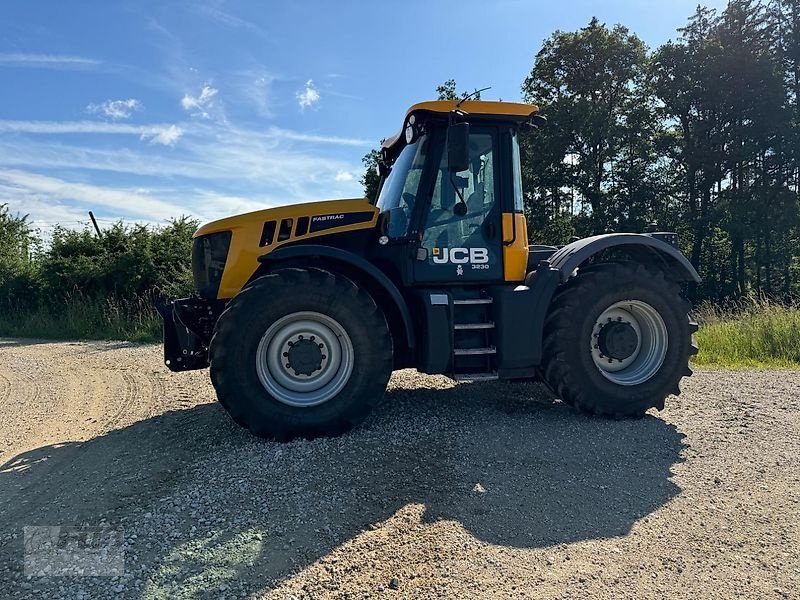

JCB 3230 XTRA 4WD
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The JCB 3230 XTRA is a tractor from the JCB 4WD Tractor series. The six-cylinder engine produces 193 hp (164.1 kW). Rated speed is 2,100 rpm.
It measures 5.20 m in length and 2.37 m in width. Wheelbase is 3.06 m.
The engine is water-cooled. Within the range, rated power spans from 157 to 284 hp; with 193 hp, the 3230 XTRA sits in the mid-field. Directly alongside are the Fastrac 3170 with 175 hp below and the Fastrac 3190 with 196 hp above.
Technical data
Engine
| Engine make | AGCO Powercorrect |
|---|---|
| Engine model | 74 AWFcorrect |
| Power | 192.6 hp (164.1 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 960.1correct |
| Cylinders | 6correct |
| Aspiration | Turbocharged and intercooledcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,200.1correct |
|---|---|
| Width | 2,371.3correct |
| Wheelbase | 3,060.2correct |
| Ground clearance | 330.2correct |
Drivetrain and chassis
| Gearbox type | 2 range continuously variable transmission with 6 modes of operation.correct |
|---|---|
| Tyre size | Width(1.38m, 4\'6 ft\'in)correct |
Frequently asked questions
How much power does the JCB 3230 XTRA have?
The JCB 3230 XTRA delivers 193 hp.
What engine does the JCB 3230 XTRA have?
6 cylinders.
What are the dimensions of the JCB 3230 XTRA?
5,200 mm × 2,371 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
