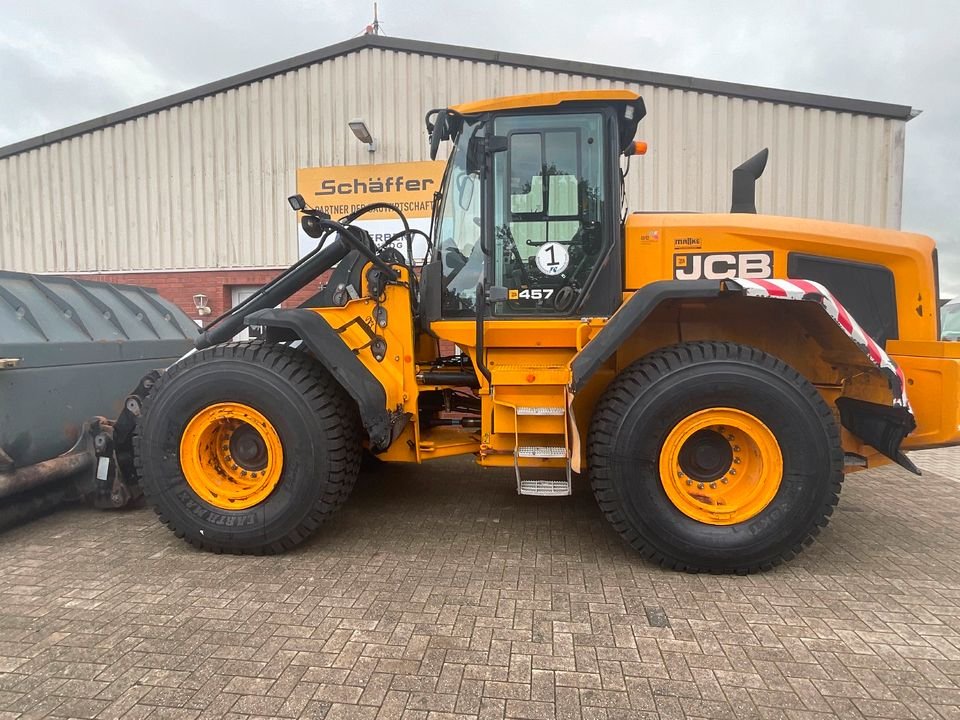

JCB 457 HT

Series: JCB Wheel Loader

Source: https://www.kleinanzeigen.de/s-anzeige/jcb-457-ht-radlader-l

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB Wheel Loader series from JCB includes the 457 HT. The engine delivers 261.6 hp (190.9 kW), has 6 cylinders, with a displacement of 7,700.3 cm³. Rated speed is 1,600 rpm. The unladen weight is 20,534 kg. The wheelbase measures 3,301 mm. Ground clearance is 475.5 mm. The tank holds 300.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,600 rpm. The pump delivers 153.3 l/min. The hydraulic tank holds 135.1 litres. The cooling system holds 42 litres. The electrical system runs on 24 V. The engine fitted is the 6R1000. The JCB Wheel Loader series covers 64 models. Rated output within it ranges from 36.5 to 261.6 hp; the 457 HT sits at the top of that range with 261.6 hp. Its immediate neighbours are the 435S below it with 233.2 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 20 verified figures from 1 source are on file.

Technical data

Engine

Engine model6R1000correct
Power261.6 hp (190.9 kW)correct
Rated speed1,600 rpmcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement7,700.3 cm³correct
AspirationTurbo Chargedcorrect
Coolant capacity42 lcorrect

Dimensions and weights

Wheelbase3,301correct
Ground clearance475.5correct
Unladen weight20,534 kgcorrect

Drivetrain and chassis

Gearbox type4 speed non-lock up converter ZF 4WG210correct
Forward gears4correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow153.3 l/mincorrect
Hydraulic oil capacity135.1 lcorrect
Fuel tank capacity300.2 lcorrect

Other data

Height3,435.1correct

Where this model stands

Power-to-weight ratio: 9.3 kW/t (191 kW / 20.5 t)

Stronger than 83% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB 457 HT have?

The JCB 457 HT delivers 262 hp.

How much does the JCB 457 HT weigh?

The unladen weight is 20,534 kg.

What engine does the JCB 457 HT have?

6 cylinders, 7,700 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
