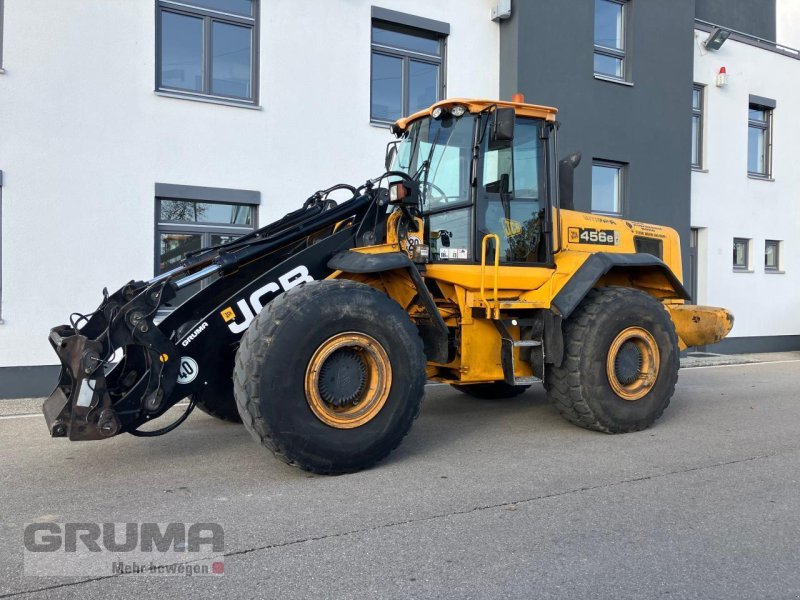

JCB 456BZX

Series: JCB Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255/jcb-590

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 456BZX from JCB is part of the JCB Wheel Loader series. The engine delivers 207.8 hp (141.7 kW), has 6 cylinders, with a displacement of 8,300 cm³. Torque is 872.1 Nm. Rated speed is 2,200 rpm. The wheelbase measures 3,200.4 mm. Ground clearance is 451.1 mm. The tank holds 325.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 329.3 l/min. The hydraulic tank holds 215 litres. The cooling system holds 38.2 litres. The electrical system runs on 24 V. The engine fitted is the 6CT8,33-C. Tyre size: 23,5X25X12 PLY (L2). The JCB Wheel Loader series covers 64 models. Rated output within it ranges from 36.5 to 261.6 hp; the 456BZX sits in the upper part of that range with 207.8 hp. Its immediate neighbours are the 456ZX High Lift below it with 199.7 hp and the 456HT High Lift above it with 209.9 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine model6CT8.33-Ccorrect
Power207.8 hp (141.7 kW)correct
Rated speed2,200 rpmcorrect
Torque872.1correct
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement8,300 cm³correct
Aspirationturbochargedcorrect
Coolant capacity38.2 lcorrect

Dimensions and weights

Wheelbase3,200.4correct
Ground clearance451.1correct

Drivetrain and chassis

Gearbox typefull powershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Tyre size23.5X25X12 PLY (L2)correct
System voltage24 Vcorrect

Working data

Pump flow329.3 l/mincorrect
Hydraulic oil capacity215 lcorrect
Fuel tank capacity325.2 lcorrect

Other data

Height3,240correct

Frequently asked questions

How much power does the JCB 456BZX have?

The JCB 456BZX delivers 208 hp.

What engine does the JCB 456BZX have?

6 cylinders, 8,300 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
