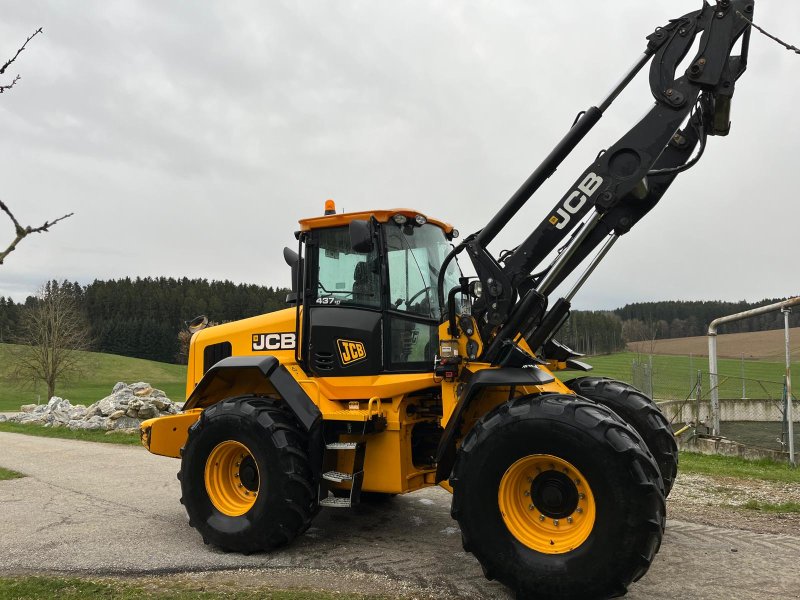

JCB 437 HT HL

Series: JCB Wheel Loader

Source: https://www.technikboerse.com/marke/jcb-590

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB Wheel Loader series from JCB includes the 437 HT HL. The engine delivers 185.5 hp (120.1 kW), has 6 cylinders, with a displacement of 6,700.7 cm³. Rated speed is 2,100 rpm. The unladen weight is 15,216 kg. The wheelbase measures 3,051 mm. Ground clearance is 472.4 mm. The tank holds 270.3 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 126.1 l/min. The hydraulic tank holds 210.1 litres. The electrical system runs on 24 V. The engine fitted is the QSB. The JCB Wheel Loader series covers 64 models. Rated output within it ranges from 36.5 to 261.6 hp; the 437 HT HL sits in the upper part of that range with 185.5 hp. Its immediate neighbours are the 427 ZX below it with 181.5 hp and the 446ZX High Lift above it with 195.7 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelQSBcorrect
Power185.5 hp (120.1 kW)correct
Rated speed2,100 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement6,700.7 cm³correct
AspirationTurbo Chargedcorrect

Dimensions and weights

Wheelbase3,051correct
Ground clearance472.4correct
Unladen weight15,216 kgcorrect

Drivetrain and chassis

Gearbox type4 speed non-lock up converter 4WGcorrect
Forward gears4correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow126.1 l/mincorrect
Hydraulic oil capacity210.1 lcorrect
Fuel tank capacity270.3 lcorrect

Other data

Height3,361.9correct

Where this model stands

Power-to-weight ratio: 7.9 kW/t (120 kW / 15.2 t)

Stronger than 61% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB 437 HT HL have?

The JCB 437 HT HL delivers 186 hp.

How much does the JCB 437 HT HL weigh?

The unladen weight is 15,216 kg.

What engine does the JCB 437 HT HL have?

6 cylinders, 6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
