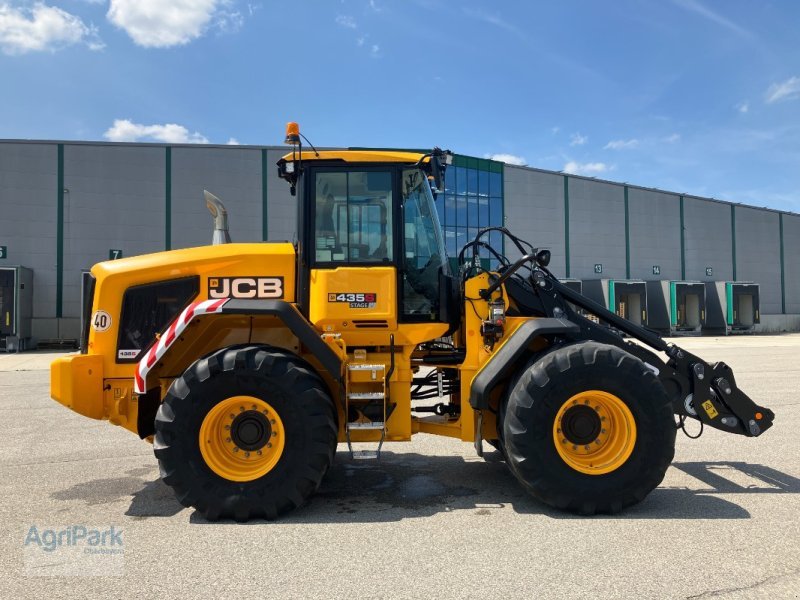

JCB 435S HL

Series: JCB Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB 435S HL belongs to the JCB Wheel Loader series. The engine delivers 233.2 hp (153.6 kW), has 6 cylinders, with a displacement of 6,700.7 cm³. Rated speed is 2,100 rpm. The unladen weight is 14,265 kg. The wheelbase measures 3,051 mm. Ground clearance is 493.8 mm. The tank holds 400.1 litres. The gearbox has 6 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 132.1 l/min. The hydraulic tank holds 210.1 litres. The electrical system runs on 24 V. The engine fitted is the QSB. The JCB Wheel Loader series covers 64 models. Rated output within it ranges from 36.5 to 261.6 hp; the 435S HL sits at the top of that range with 233.2 hp. Its immediate neighbours are the 456HT High Lift below it with 209.9 hp and the 457 HT SHL above it with 261.6 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelQSBcorrect
Power233.2 hp (153.6 kW)correct
Rated speed2,100 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement6,700.7 cm³correct
AspirationTurbo Chargedcorrect

Dimensions and weights

Wheelbase3,051correct
Ground clearance493.8correct
Unladen weight14,265 kgcorrect

Drivetrain and chassis

Gearbox type6 speed with lock up converter ZF 6WG210correct
Forward gears6correct
Reverse gears3correct
System voltage24 Vcorrect

Working data

Pump flow132.1 l/mincorrect
Hydraulic oil capacity210.1 lcorrect
Fuel tank capacity400.1 lcorrect

Other data

Height3,742.9correct

Where this model stands

Power-to-weight ratio: 10.8 kW/t (154 kW / 14.3 t)

Stronger than 75% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB 435S HL have?

The JCB 435S HL delivers 233 hp.

How much does the JCB 435S HL weigh?

The unladen weight is 14,265 kg.

What engine does the JCB 435S HL have?

6 cylinders, 6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
