Start › Wheel loaders › JCB › 426HTM

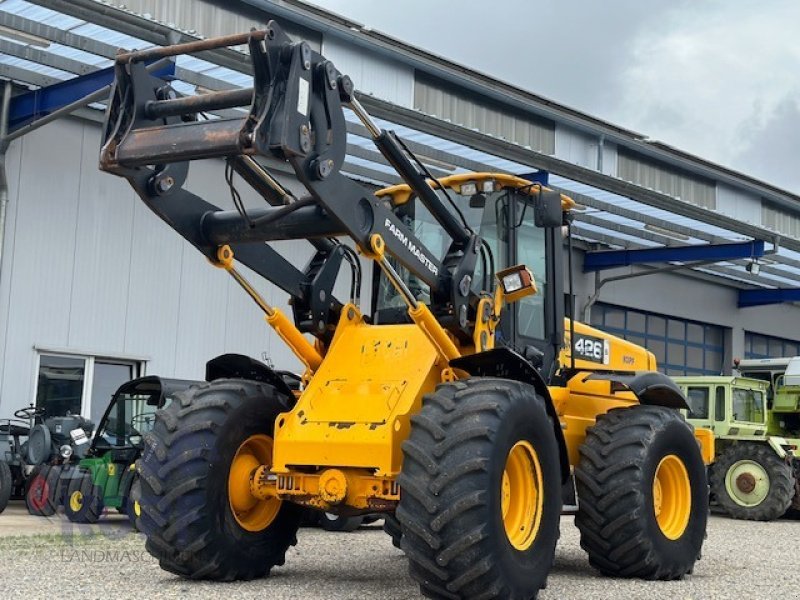

JCB 426HTM

Series: JCB Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255/jcb-590

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB Wheel Loader series from JCB includes the 426HTM. The engine delivers 154.1 hp (111.9 kW), has 6 cylinders, with a displacement of 5,901 cm³. Torque is 617 Nm. Rated speed is 2,200 rpm. The unladen weight is 14,210 kg. The wheelbase measures 3,002.3 mm. Ground clearance is 445 mm. The tank holds 230.2 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,600 rpm. The pump delivers 132.1 l/min. The hydraulic tank holds 210.1 litres. The cooling system holds 35.2 litres. The electrical system runs on 24 V. The engine fitted is the BTAA5,9C. Tyre size: 20,5r25 HXA (L3). The JCB Wheel Loader series covers 64 models. Rated output within it ranges from 36.5 to 261.6 hp; the 426HTM sits in the middle of that range with 154.1 hp. Its immediate neighbours are the 414S below it with 152.3 hp and the 436BHT above it with 162.2 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelBTAA5.9Ccorrect
Power154.1 hp (111.9 kW)correct
Rated speed2,200 rpmcorrect
Torque617correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement5,901 cm³correct
Aspirationturbochargedcorrect
Coolant capacity35.2 lcorrect

Dimensions and weights

Wheelbase3,002.3correct
Ground clearance445correct
Unladen weight14,210 kgcorrect

Drivetrain and chassis

Gearbox typesmooth powershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Tyre size20.5r25 HXA (L3)correct
System voltage24 Vcorrect

Working data

Pump flow132.1 l/mincorrect
Hydraulic oil capacity210.1 lcorrect
Fuel tank capacity230.2 lcorrect

Other data

Height3,316.2correct

Where this model stands

Power-to-weight ratio: 7.9 kW/t (112 kW / 14.2 t)

Stronger than 57% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB 426HTM have?

The JCB 426HTM delivers 154 hp.

How much does the JCB 426HTM weigh?

The unladen weight is 14,210 kg.

What engine does the JCB 426HTM have?

6 cylinders, 5,901 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
