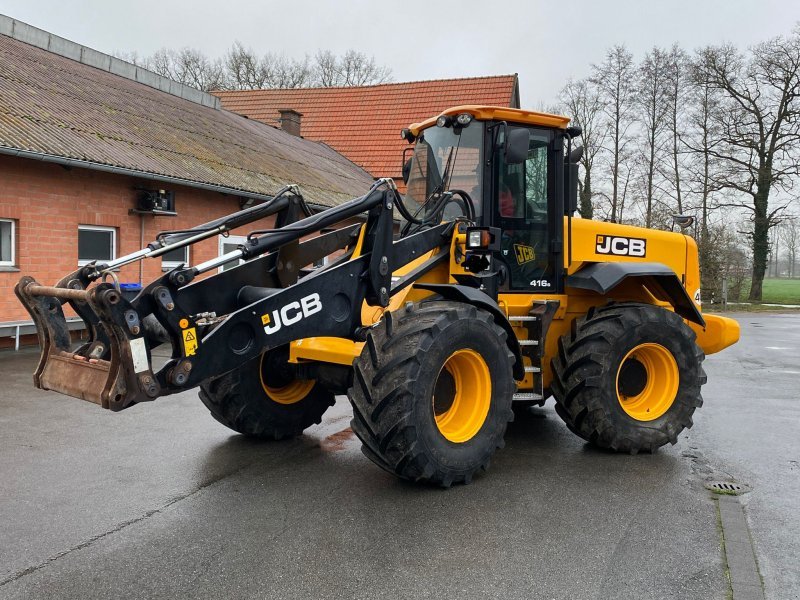

JCB 416S

Series: JCB Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255/jcb-590

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB 416S is a model in the JCB Wheel Loader series. The engine delivers 152.1 hp (105.9 kW), has 6 cylinders, with a displacement of 5,901 cm³. Torque is 617 Nm. Rated speed is 2,200 rpm. The unladen weight is 10,100 kg. The wheelbase measures 2,801.1 mm. Ground clearance is 362.7 mm. The tank holds 140.1 litres. The gearbox has 6 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,600 rpm. The pump delivers 220.3 l/min. The hydraulic tank holds 130.2 litres. The cooling system holds 21.6 litres. The electrical system runs on 24 V. The engine fitted is the BTAA5,9C. Tyre size: 19LR24 XM27. The JCB Wheel Loader series covers 64 models. Rated output within it ranges from 36.5 to 261.6 hp; the 416S sits in the middle of that range with 152.1 hp. Its immediate neighbours are the 413S HT below it with 147.2 hp and the 414S above it with 152.3 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelBTAA5.9Ccorrect
Power152.1 hp (105.9 kW)correct
Rated speed2,200 rpmcorrect
Torque617correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement5,901 cm³correct
Aspirationturbochargedcorrect
Coolant capacity21.6 lcorrect

Dimensions and weights

Wheelbase2,801.1correct
Ground clearance362.7correct
Unladen weight10,100 kgcorrect

Drivetrain and chassis

Gearbox typesmooth shift powershift transmissioncorrect
Forward gears6correct
Reverse gears3correct
Tyre size19LR24 XM27correct
System voltage24 Vcorrect

Working data

Pump flow220.3 l/mincorrect
Hydraulic oil capacity130.2 lcorrect
Fuel tank capacity140.1 lcorrect

Other data

Height2,971.8correct

Where this model stands

Power-to-weight ratio: 10.5 kW/t (106 kW / 10.1 t)

Stronger than 54% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB 416S have?

The JCB 416S delivers 152 hp.

How much does the JCB 416S weigh?

The unladen weight is 10,100 kg.

What engine does the JCB 416S have?

6 cylinders, 5,901 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
