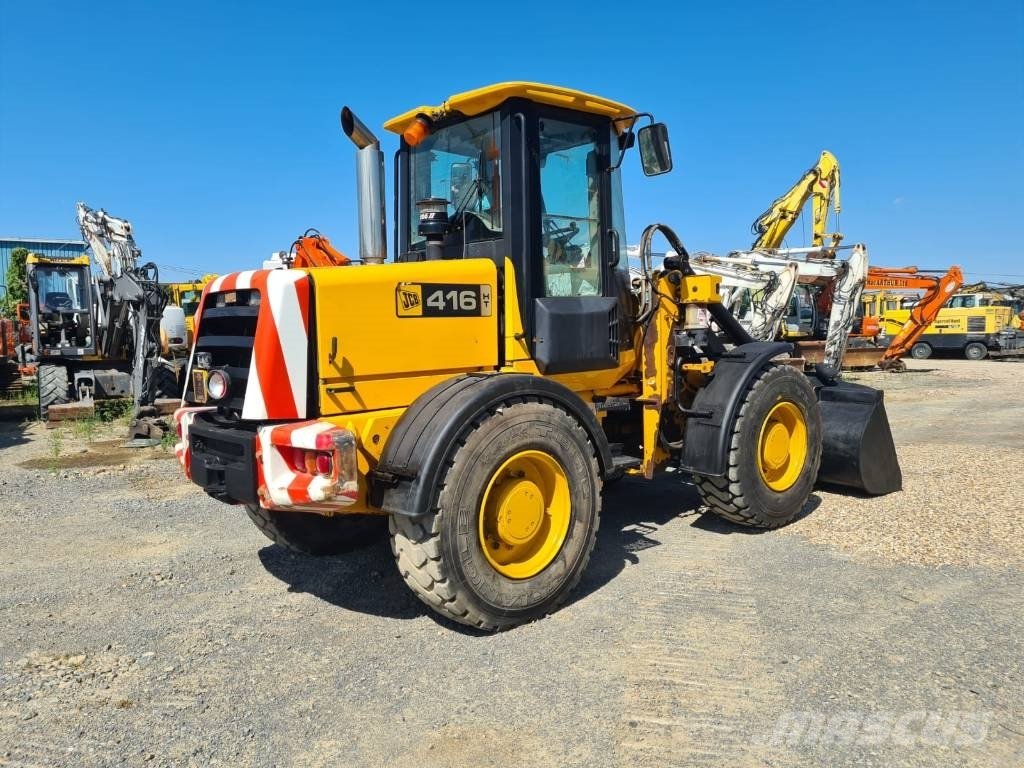

JCB 416HT

Series: JCB Wheel Loader

Source: https://www.mascus.at/baumaschinen/radlader/jcb-416ht/7pgvct

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 416HT, JCB offers a model from the JCB Wheel Loader series. The engine delivers 91.8 hp (62.9 kW), has 4 cylinders, with a displacement of 4,401.6 cm³. Torque is 434.1 Nm. Rated speed is 2,200 rpm. The unladen weight is 10,159 kg. The wheelbase measures 2,801.1 mm. Ground clearance is 448.1 mm. The tank holds 140.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 156.3 l/min. The hydraulic tank holds 125.3 litres. The cooling system holds 23.1 litres. The electrical system runs on 24 V. Tyre size: Michelin 17,5R25 XHA (L3). The JCB Wheel Loader series covers 64 models. Rated output within it ranges from 36.5 to 261.6 hp; the 416HT sits in the lower part of that range with 91.8 hp. Its immediate neighbours are the 411BHT below it with 91.2 hp and the 411HT High Lift above it with 93.3 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Power91.8 hp (62.9 kW)correct
Rated speed2,200 rpmcorrect
Torque434.1correct
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement4,401.6 cm³correct
Aspirationturbochargedcorrect
Coolant capacity23.1 lcorrect

Dimensions and weights

Wheelbase2,801.1correct
Ground clearance448.1correct
Unladen weight10,159 kgcorrect

Drivetrain and chassis

Gearbox typesmooth shift powershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Tyre sizeMichelin 17.5R25 XHA (L3)correct
System voltage24 Vcorrect

Working data

Pump flow156.3 l/mincorrect
Hydraulic oil capacity125.3 lcorrect
Fuel tank capacity140.1 lcorrect

Other data

Height3,154.7correct

Where this model stands

Power-to-weight ratio: 6.2 kW/t (63 kW / 10.2 t)

Stronger than 32% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB 416HT have?

The JCB 416HT delivers 91.8 hp.

How much does the JCB 416HT weigh?

The unladen weight is 10,159 kg.

What engine does the JCB 416HT have?

4 cylinders, 4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
