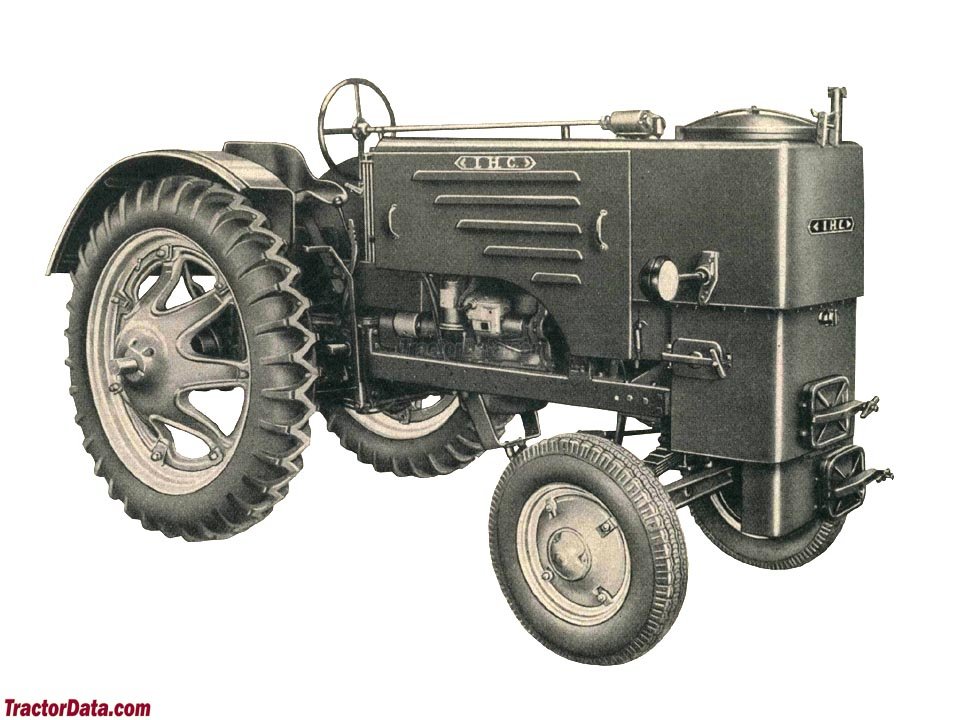

International Harvester HG

Built: 1943–1944 · Series: Holzgas

More machines from model year 1943

Source: https://www.tractordata.com/farm-tractors/004/6/3/4636-inter

The International Harvester HG is a model in the Holzgas series. Production: 1943–1944. The engine delivers 15 hp (11 kW), has 4 cylinders, with a displacement of 2,043 cm³. Rated speed is 1,650 rpm. The machine is 3,500 mm long, 2,000 mm wide and 1,900 mm high. The wheelbase measures 1,990 mm. Ground clearance is 320 mm. Top speed is 12 km/h. Transmission: 4V/1R. The engine is water-cooled. Tyres: front 6.00-16, rear 9.00-40. The fuel is Holz. The bore measures 80 mm. The stroke is 101.6 mm. Around 144 units were built. Rated output across the International Harvester range ranges from 13.4 to 335 hp; the HG sits at the bottom of that range with 15 hp. Its immediate neighbours are the DLD 2 below it with 14 hp and the 8-16 Junior above it with 16.2 hp. Rated output across the International Harvester range ranges from 9.9 to 246.4 kW; here the HG sits at the bottom of that range with 11 kW. 391 International Harvester models across 45 series are on record.

International Harvester Holzgas HG and HS – wartime tractors from Neuss with a wood-gas generator instead of fuel, four-cylinder engine of 2,043 cm³ and 11 kW

During the war years fuel shortages forced even International Harvester to convert tractors to wood gas: a generator gasifies wood or charcoal into a combustible gas that drives the petrol engine in place of liquid fuel. The HG and HS types from the Neuss plant represent these wartime versions, with a four-cylinder engine of 2,043 cm³ and 11 kW at 1,650 rpm. The switch to wood gas was not an IH peculiarity but affected numerous German makers of cars, trucks and tractors alike during the war, since liquid fuel was reserved mainly for the armed forces. After the merger with Case in 1985, the Neuss site remained a plant for combine harvesters.

Read on 3 more paragraphs

The register lists 2 versions of 11 kW each from a four-cylinder engine of 2,043 cm³ at 1,650 rpm, a length of 3,500 mm, a width of 2,000 mm and a height of 1,900 mm.

Wood-gas tractors such as the HG and HS kept farming running during fuel rationing, but lost markedly in power and responsiveness compared with running on liquid fuel, and disappeared from the market quickly once the war ended.

Surviving examples are museum rarities today; on a used example what counts is the originality of the wood-gas generator and its filters, the condition of the converted carburettor and rust on the bodywork and chassis, with parts available in practice only through collectors and reproduction.

Sources: SpecCodex register, model data: International Harvester Holzgas

Technical data

Engine

Fuel	Holzcorrect
Power	15 hp (11 kW)correct
Rated speed	1,650 rpmcorrect
Cylinders	4correct
Displacement	2,043 cm³correct
Bore	80 mmcorrect
Stroke	101.6 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,500 mmcorrect
Width	2,000 mmcorrect
Height	1,900 mmcorrect
Wheelbase	1,990 mmcorrect
Ground clearance	320 mmcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	4V/1Rcorrect
Front tyres	6.00-16correct
Rear tyres	9.00-40correct
Top speed	12 km/hcorrect

Origin and approval

Units built	144correct

Frequently asked questions

How much power does the International Harvester HG have?

The International Harvester HG delivers 15 hp.

What engine does the International Harvester HG have?

4 cylinders, 2,043 cm³ displacement, Holz.

How fast does the International Harvester HG go?

Top speed is 12 km/h.

What are the dimensions of the International Harvester HG?

3,500 mm × 2,000 mm × 1,900 mm.

When was the International Harvester HG built?

Production years: 1943–1944.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
