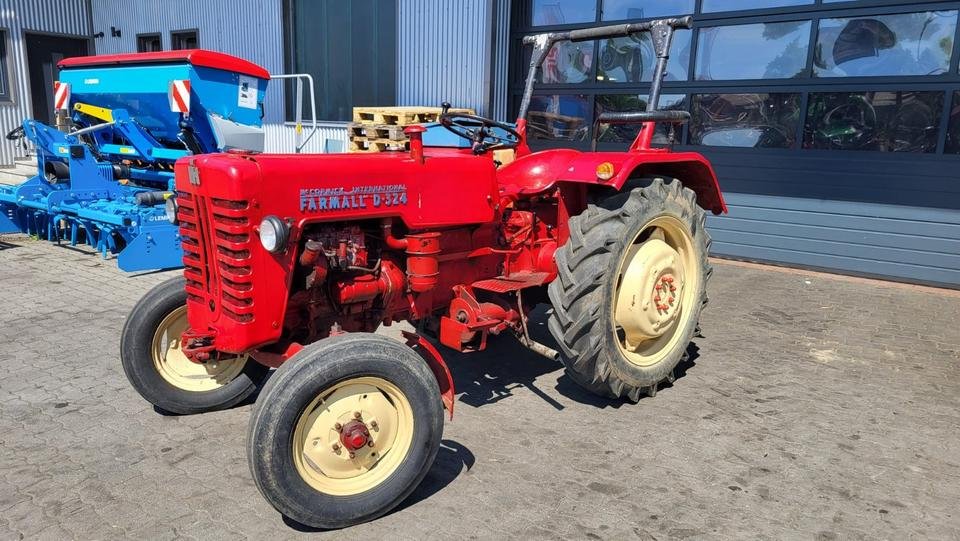

International Harvester D 324 (F/S)
Built: 2/1956–4/1962 · Series: D-Reihe
More machines from model year 1956
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
International Harvester D-Reihe – diesel field tractors from the IHC Neuss plant: types D-322 to D 439, three- and four-cylinder engines of 1,631 to 2,434 cm³, 14.6 to 26.4 kW
In the 1950s International Harvester built the D range for the European market at its plant in Neuss on the Rhine, diesel field tractors developed specifically for Europe's more fragmented farm structure. The types D-322, D 324, D 439 and DED (3) recorded in the register carry IHC Neuss's typical letter-and-number combination, in which the number indicates the approximate displacement or power class.
Read on 3 more paragraphs
The register lists 4 versions with 14.6 to 26.4 kW from three- and four-cylinder diesel engines of 1,631 to 2,434 cm³ displacement, unladen weights from 1,230 to 1,542 kg and rated speeds from 1,750 to 1,900 rpm; lengths range from 2,732 to 2,930 mm, widths from 1,630 to 1,640 mm, heights from 1,550 to 1,585 mm.
The D range positioned International Harvester in the West German and European market of the 1950s against domestic manufacturers such as Fendt, Deutz and Hanomag, and was meant to give the American group a foothold in Europe's small-tractor market, which differed markedly in scale and requirements from the large North American field tractors.
On a used IHC D-range tractor, the condition of the diesel engine's injection pump and injectors, rust on the frame and mudguards, the tightness of the gearbox and axles, and the function of the hydraulics all count; because production has ended, parts for this European IHC range are mostly only available through specialist dealers and collector circles.
Sources: SpecCodex register, model data: International Harvester D-Reihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 24 hp (17.6 kW)correct |
| Rated speed | 1,900 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,825 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,750 mmcorrect |
|---|---|
| Width | 1,640 mmcorrect |
| Height | 1,550 mmcorrect |
| Wheelbase | 1,779 mmcorrect |
| Ground clearance | 383 mmcorrect |
| Unladen weight | 1,318 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6+1 or 8+2 "Agriomatik"correct |
| Front tyres | 4.50-16 ASFcorrect |
| Rear tyres | 8-32 AScorrect |
| Top speed | 19 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 24,490correct |
Where this model stands
Power-to-weight ratio: 13.4 kW/t (18 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 10% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the International Harvester D 324 (F/S) have?
The International Harvester D 324 (F/S) delivers 24 hp.
How much does the International Harvester D 324 (F/S) weigh?
The unladen weight is 1,318 kg.
What engine does the International Harvester D 324 (F/S) have?
3 cylinders, 1,825 cm³ displacement, Diesel.
How fast does the International Harvester D 324 (F/S) go?
Top speed is 19 km/h.
What are the dimensions of the International Harvester D 324 (F/S)?
2,750 mm × 1,640 mm × 1,550 mm.
When was the International Harvester D 324 (F/S) built?
Production years: 2/1956–4/1962.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
