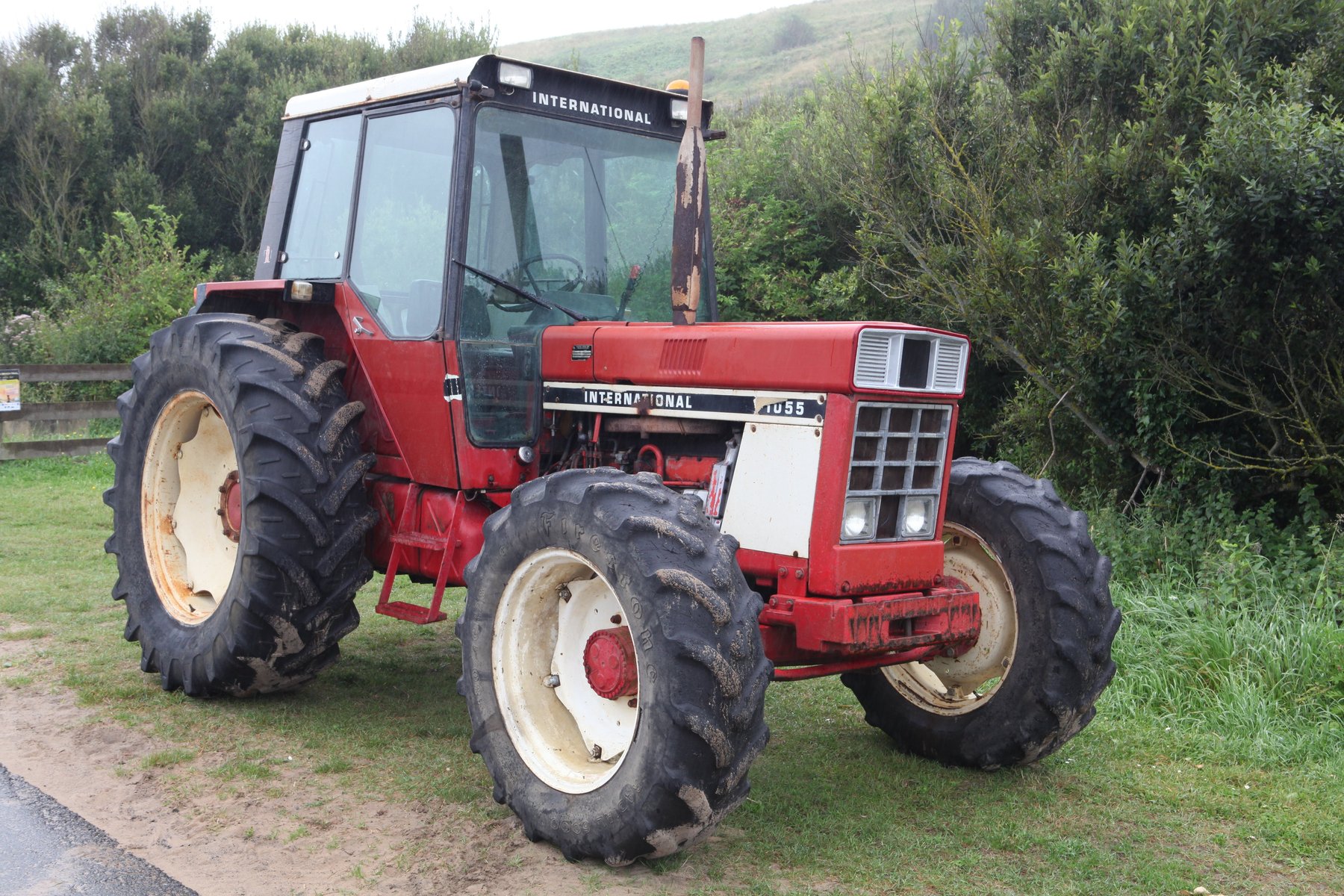

International Harvester 1055

Built: 5/1977–6/1982 · Series: C-Familie

More machines from model year 1977

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 1055 from International Harvester is part of the C-Familie series. Production: 5/1977–6/1982. The engine delivers 100 hp (74 kW), has 6 cylinders, with a displacement of 5,867 cm³. Torque is 381 Nm. Rated speed is 2,200 rpm. The machine is 4,194 mm long, 2,049 mm wide and 2,649 mm high. The unladen weight is 4,290 kg. The wheelbase measures 2,626 mm. Ground clearance is 516 mm. Top speed is 30 km/h. Transmission: 16V/8R. The engine is water-cooled. Tyres: front 7.50- 18 (A: 11.2/10-28), rear 18.4/15-34. The fuel is diesel. The bore measures 98.4 mm. The stroke is 128.5 mm. Maximum torque is reached at 1,301 rpm. Construction: unit construction (no separate frame). Around 3518 units were built. The C-Familie series covers 5 models. Rated output within it ranges from 85 to 100 hp; the 1055 sits at the top of that range with 100 hp. Its immediate neighbours are the 955 XL below it with 90 hp. Unladen weight within it ranges from 3,600 to 4,370 kg; here the 1055 sits at the top of that range with 4,290 kg. 391 International Harvester models across 45 series are on record.

International Harvester 946 to 1055XL (1970s) – the six-cylinders from Doncaster: XL for the comfort cab, throughout a 5.1 to 5.9-litre diesel, 62 to 74 kW, 318 to 381 Nm

International Harvester built its own range of larger six-cylinder field tractors for the European market at its British Doncaster plant, to which the 946, 955 and 1055 models belong. The number in the type designation orders the power class in ascending order, the XL suffix marks the more comfortable cab specification against the base version – the 955XL and 1055XL offered a roomier, better-insulated cab compared with the 946 and 955, with largely the same engines underneath.

Read on 3 more paragraphs

The register lists 5 versions uniformly with six cylinders, engines of 5,073 to 5,867 cm³, outputs of 62.2 to 74 kW and a rated speed around 2,200 rpm. On four models torque falls between 318.8 and 381 Nm; service weights range from 3,600 to 4,370 kg, lengths from 3,912 to 4,194 mm.

The Doncaster six-cylinders occupied the upper mid segment of European field tractors in the 1970s, competing with Ford, Massey Ferguson and the then-strengthening Fendt range; IH tractors were technically regarded as solid, if less widespread than the established European brands. After the sale of IH's agricultural division to Case in the early 1980s, the Doncaster models were carried over into Case IH ranges.

On used tractors, operating hours, the condition of clutch and multi-stage gearbox, hydraulic pump and linkage, the tightness of the cab glazing on XL models, and rust on frame and wings count; parts supply runs through Case IH as legal successor.

Sources: SpecCodex register, model data: International Harvester C-Familie, Case IH (Rechtsnachfolger International Harvester)

Technical data

Engine

Fuel	dieselcorrect
Power	100 hp (74 kW)correct
Rated speed	2,200 rpmcorrect
Torque	381 Nmcorrect
Speed at max. torque	1,301 rpmcorrect
Cylinders	6correct
Displacement	5,867 cm³correct
Bore	98.4 mmcorrect
Stroke	128.5 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,194 mmcorrect
Width	2,049 mmcorrect
Height	2,649 mmcorrect
Wheelbase	2,626 mmcorrect
Ground clearance	516 mmcorrect
Unladen weight	4,290 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	16V/8Rcorrect
Front tyres	7.50- 18 (A: 11.2/10-28)correct
Rear tyres	18.4/15-34correct
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct
Units built	3,518correct

Where this model stands

Power-to-weight ratio: 17.2 kW/t (74 kW / 4.3 t)

Power class: Universal (40–100 hp)

Stronger than 66% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the International Harvester 1055 have?

The International Harvester 1055 delivers 100 hp.

How much does the International Harvester 1055 weigh?

The unladen weight is 4,290 kg.

What engine does the International Harvester 1055 have?

6 cylinders, 5,867 cm³ displacement, Diesel.

How fast does the International Harvester 1055 go?

Top speed is 30 km/h.

What are the dimensions of the International Harvester 1055?

4,194 mm × 2,049 mm × 2,649 mm.

When was the International Harvester 1055 built?

Production years: 5/1977–6/1982.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
