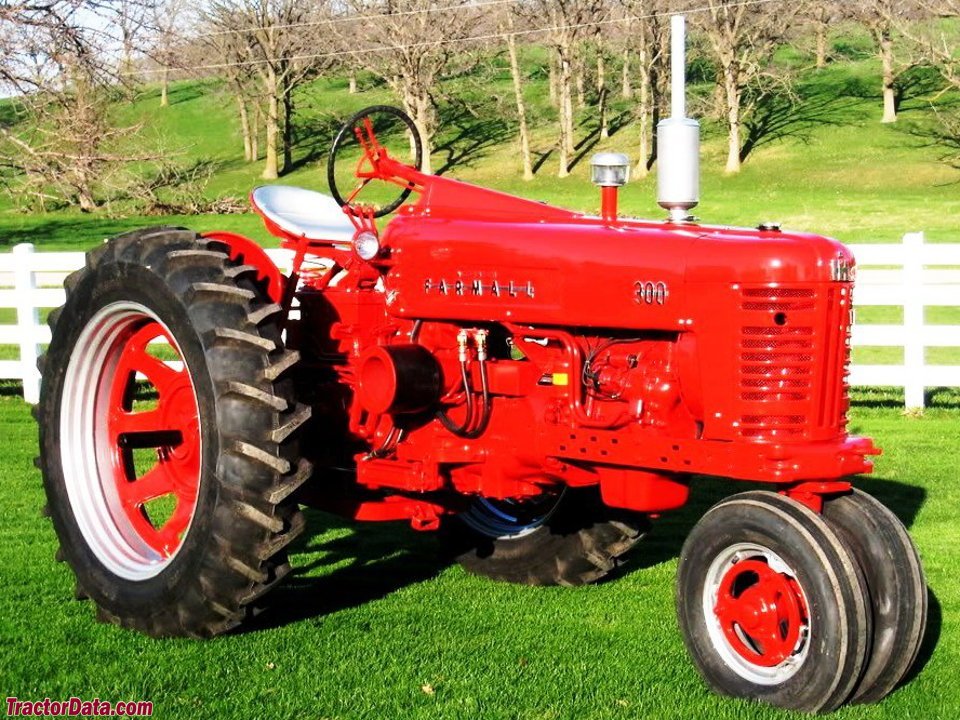

International Harvester FARMALL 300
Built: 1954–1956 · Series: 100 er-Baureihe
More machines from model year 1954
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
International Harvester 100 series (1954–1956) – the successors to the Farmall letters: Farmall 100 to 400 and W-400, the number as size class, the Torque Amplifier of 1954, petrol, LPG and the first diesels, 14 to 46 kW
The 100 series replaced in 1954 the Farmall letter tractors with which International Harvester had led the American market since the 1930s: the Farmall 100 followed the Super A, the 200 the Super C, the 300 the Super H and the 400 the Super M – each with more power, a new bonnet and the hydraulics IH called Hydra-Touch. The type logic: the hundreds number orders the size class in ascending order, Farmall marks the row-crop version with closely spaced front wheels, W the standard version with wide front axle (W-400), International the industrial and utility versions (100, 300, 600). The technical innovation of the range was the Torque Amplifier of 1954, a powershift step that raised pulling power under load by about 45 percent – the forerunner of all powershift transmissions. The fuels reflect the time: petrol and LPG dominate, and the Farmall 400 Diesel was one of the first diesel row-crop tractors.
Read on 3 more paragraphs
The register lists 9 versions with 13.8 to 46.3 kW, 2,011 to 5,734 cm³ with four cylinders, rated speeds of 1,400 to 1,750 rpm, torque from 199 to 553 Nm, unladen weights from 1,180 to 3,078 kg, lengths from 2,715 to 3,585 mm, widths from 1,419 to 2,305 mm and heights from 1,473 to 2,372 mm.
The 100s ran for only two years before the 30 series (130 to 450) followed in 1956 – their rarity makes them sought after by collectors, their Torque Amplifier made them the turning point of IH transmission technology.
On used tractors, originality, engine condition and carburettor, the Torque Amplifier (clutch pack), Hydra-Touch hydraulics and sheet metal count; parts are readily available in North America and through specialists in Europe.
Sources: SpecCodex register, model data: International Harvester 100er-Baureihe, International Harvester (Wikipedia)
Technical data
Engine
| Fuel | Benzin/LPGcorrect |
|---|---|
| Power | 33.5 hp (24.6 kW)correct |
| Rated speed | 1,750 rpmcorrect |
| Torque | 384 Nmcorrect |
| Speed at max. torque | 1,050 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,777 cm³correct |
| Bore | 90.49 mmcorrect |
| Stroke | 107.95 mmcorrect |
| Compression ratio | 6.7correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,554 mmcorrect |
|---|---|
| Width | 2,108 mmcorrect |
| Height | 1,956 mmcorrect |
| Wheelbase | 2,343 mmcorrect |
| Unladen weight | 2,132 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5 V/1 R or 10 V/2 Rcorrect |
| Front tyres | 5.50 x 16correct |
| Rear tyres | 11 x 38correct |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 29,501correct |
Where this model stands
Power-to-weight ratio: 11.5 kW/t (25 kW / 2.1 t)
Power class: Compact (< 40 hp)
Stronger than 19% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the International Harvester FARMALL 300 have?
The International Harvester FARMALL 300 delivers 33.5 hp.
How much does the International Harvester FARMALL 300 weigh?
The unladen weight is 2,132 kg.
What engine does the International Harvester FARMALL 300 have?
4 cylinders, 2,777 cm³ displacement, Benzin/LPG.
How fast does the International Harvester FARMALL 300 go?
Top speed is 25 km/h.
What are the dimensions of the International Harvester FARMALL 300?
3,554 mm × 2,108 mm × 1,956 mm.
When was the International Harvester FARMALL 300 built?
Production years: 1954–1956.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
