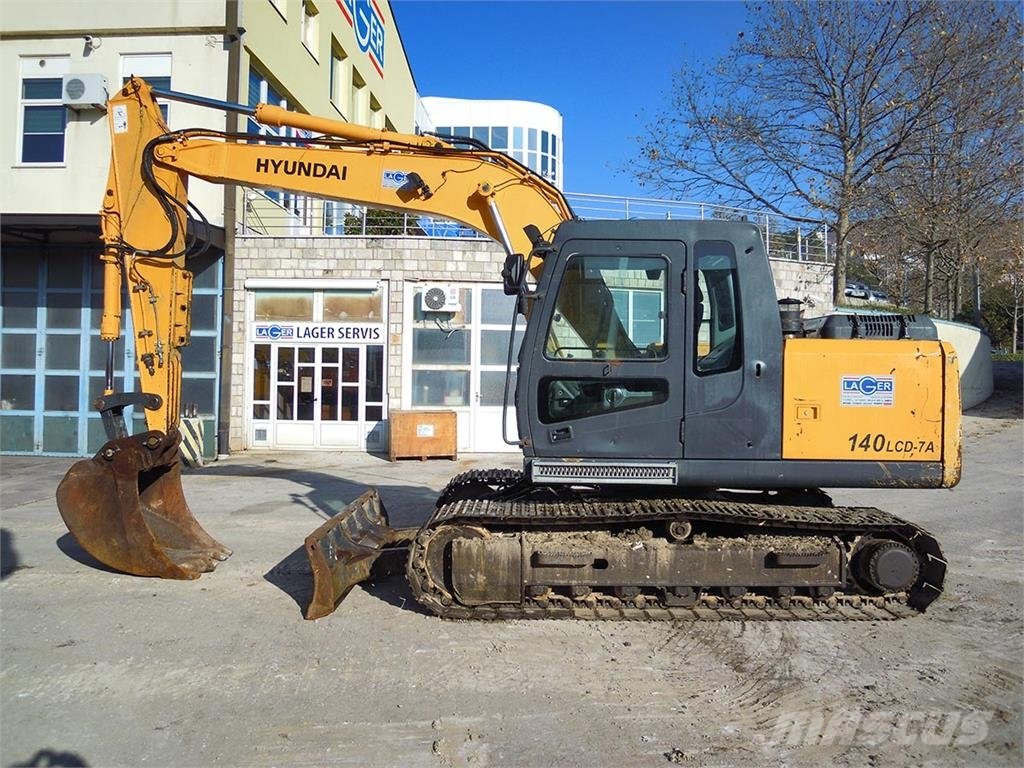

Hyundai R140LCD-7A
Series: Hyundai Hydraulic Excavator
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hyundai R series: LC, D, and the -7/-7A generation tag behind the number
Hyundai's excavator lineup consistently starts with the prefix R, followed by a number for the size class and usually a letter code for the undercarriage type. LC stands for a lengthened, widened crawler track ("Long Crawler") that increases ground contact area and improves stability on soft or uneven terrain — bucket models such as R140LC-7, R160LC-7 and R180LC-7 carry this code.
Read on 3 more paragraphs
The D suffix, by contrast, marks a wheeled excavator instead of a crawler machine, as seen in this bucket's R110D-7. After the number comes the generation tag: the digit 7 marks a particular excavator generation, and the trailing A on models like R450-7A, per an industry source, denotes adaptation to a stricter emissions standard within the same generation.
The "Hyundai Hydraulic Excavator" bucket spans smaller site machines like the R110-7 up to heavyweights like the R450-7A, and across its 56 active models covers 62 to 365 kW of engine power, 11,200 to 82,320 kg operating weight, 4- to 6-cylinder engines, and torque from 371 to 2364 Nm.
Buying used, LC models are worth checking for wider track shoes and pads, which wear unevenly under intensive digging, along with the seals on the dipper and boom cylinders.
Sources: SpecCodex register, model data: Hyundai Hydraulic Excavator, CM-SV: What Do the Letters of Each Brand and Model of Excavator Mean, Machineryline: Overview of Hyundai R Series Excavators
Technical data
Engine
| Engine model | D04FD-TAAcorrect |
|---|---|
| Power | 120.7 hp (78.3 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 445.3 Nmcorrect |
| Speed at max. torque | 1,700 rpmcorrect |
| Cylinders | 4correct |
| Aspiration | turbochargedcorrect |
| Coolant capacity | 22.3 lcorrect |
| Engine oil capacity | 18.5 lcorrect |
Dimensions and weights
| Ground clearance | 442 mmcorrect |
|---|---|
| Unladen weight | 14,800 kgcorrect |
Working data
| Pump flow | 260.1 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 210.1 lcorrect |
| Hydraulic pressure | 323.4 barcorrect |
| Fuel tank capacity | 270.3 lcorrect |
Other data
| Cab height | 2,822.4 mmcorrect |
|---|---|
| System voltage | 24 Vcorrect |
More machines with this engine (D04FD-TAA, 6)
Where this model stands
Power-to-weight ratio: 5.3 kW/t (78 kW / 14.8 t)
Stronger than 30% of the excavators & compaction in the register — out of 1,650 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hyundai R140LCD-7A have?
The Hyundai R140LCD-7A delivers 121 hp.
How much does the Hyundai R140LCD-7A weigh?
The unladen weight is 14,800 kg.
What engine does the Hyundai R140LCD-7A have?
4 cylinders.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
