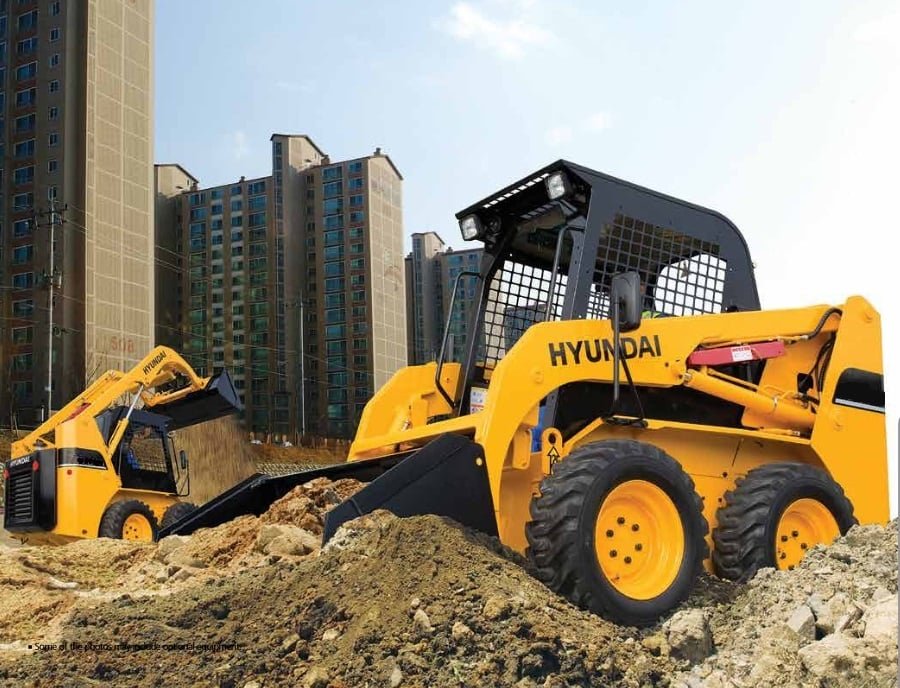

Hyundai HSL650-7

Series: Hyundai Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The HSL650-7 from Hyundai is part of the Hyundai Skid Steer Loader series. The engine delivers 44.8 hp (31.8 kW), has 4 cylinders, with a displacement of 2,200.8 cm³. Rated speed is 2,500 rpm. The wheelbase measures 990.6 mm. Ground clearance is 183.1 mm. Top speed is 11.7 km/h. The tank holds 60.6 litres. The pump delivers 69.7 l/min. The hydraulic tank holds 37.9 litres. Working pressure is 175 bar. The engine fitted is the V2203M. Tyre size: 10-16,5. 6PR. The Hyundai Skid Steer Loader series covers 15 models. Rated output within it ranges from 20.1 to 88.6 hp; the HSL650-7 sits in the lower part of that range with 44.8 hp. Its immediate neighbours are the HSL600T below it with 43.6 hp and the HSL680T above it with 50.7 hp. 391 Hyundai models across 22 series are on record. The model is listed under Wheel loaders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelV2203Mcorrect
Power44.8 hp (31.8 kW)correct
Rated speed2,500 rpmcorrect
Cylinders4correct
Displacement2,200.8 cm³correct

Dimensions and weights

Wheelbase990.6correct
Ground clearance183.1correct

Drivetrain and chassis

Tyre size10-16.5, 6PRcorrect
Top speed11.7 km/hcorrect

Working data

Pump flow69.7 l/mincorrect
Hydraulic oil capacity37.9 lcorrect
Hydraulic pressure175correct
Fuel tank capacity60.6 lcorrect

Other data

Height1,966correct

Frequently asked questions

How much power does the Hyundai HSL650-7 have?

The Hyundai HSL650-7 delivers 44.8 hp.

What engine does the Hyundai HSL650-7 have?

4 cylinders, 2,201 cm³ displacement.

How fast does the Hyundai HSL650-7 go?

Top speed is 11.7 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
