Start › Trailers › Humbaur › HTK › HTK 3500.41 2016

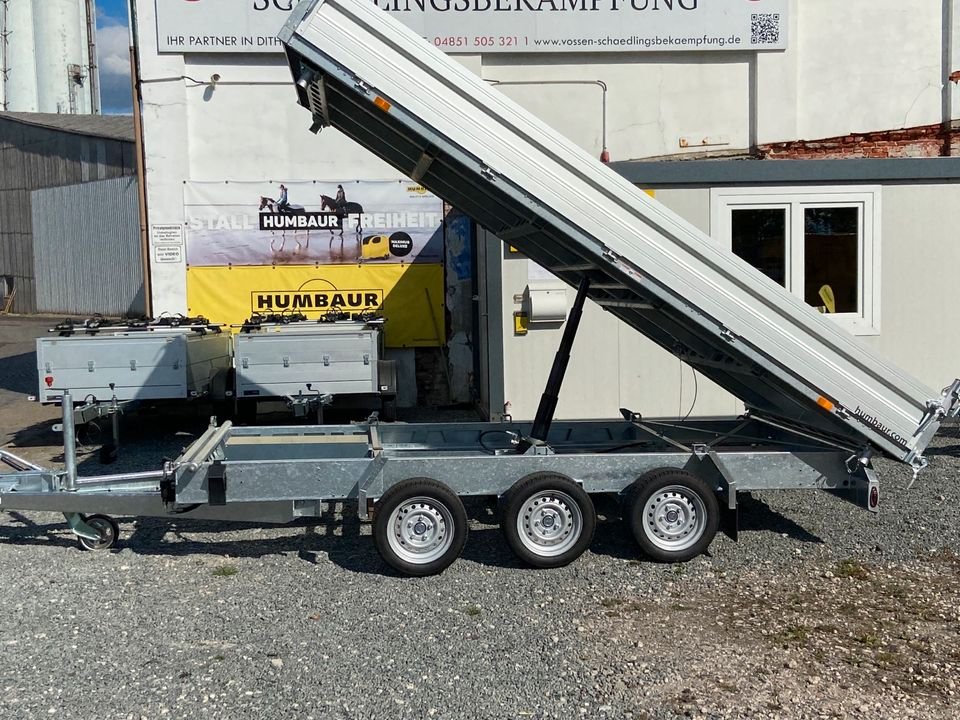

Humbaur HTK 3500.41 2016

Built: 2018-2025 · Series: HTK

More machines from model year 2018

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The HTK series from Humbaur includes the HTK 3500.41 2016. Production: 2018-2025. The vehicle is 5,480 mm long and 2,270 mm wide. The unladen weight is 950 kg. The wheelbase measures 3,830 mm. Top speed is 100 km/h. The gross vehicle weight is 3,500 kg. The vehicle runs on 4 wheels. The HTK series covers 14 models. Unladen weight within it ranges from 920 to 9,900 kg; the HTK 3500.41 2016 sits at the bottom of that range with 950 kg. Its immediate neighbours are the HTK 3500.41 below it with 935 kg and the HTK 3500.41 Tridem above it with 1,000 kg. Gross vehicle weight within it ranges from 3,500 to 11,900 kg; here the HTK 3500.41 2016 sits at the bottom of that range with 3,500 kg. 1022 Humbaur models across 24 series are on record.

Humbaur HTK – trailers from single-axle to tandem and tridem versions, unladen weights 920 to 9,900 kg, permissible gross weights 3,500 to 11,900 kg, lengths up to 7,550 mm, widths up to 2,550 mm

Humbaur is a German trailer manufacturer based in Bavaria, offering a broad range from car trailers to heavy commercial trailers. The HTK range on this page runs from lighter single-axle versions to tandem and tridem versions for high payloads, recognisable in models such as the HTK 3500 Tridem or HTK 3500.41 Tridem; the number after the dot in types such as the HTK 3500.31 or HTK 3500.37 distinguishes individual model years or equipment levels within the same weight class.

Read on 3 more paragraphs

The register lists here 14 versions with unladen weights from 920 to 9,900 kg, permissible gross weights from 3,500 to 11,900 kg, lengths from 4,580 to 7,550 mm and widths from 1,910 to 2,550 mm.

The HTK range thus spans from the car trailer at 3.5 tonnes permissible gross weight to the heavy tandem and tridem trailer for commercial transport of machinery and vehicles, and sits in the German and European market alongside other trailer makers in the same weight classes. Users range from private owners who need a car trailer for machinery or vehicles to hire firms and trade businesses relying on the tridem versions for high payloads.

When buying used, check the axles, brakes and frame appropriate to the respective weight class, and on the tridem versions also the even load distribution across the three axles. The loading-floor covering, ramps or loading rails, and the frame's galvanising should be examined for wear and corrosion; Humbaur runs a dense dealer and spares network in Germany, through which even older HTK models can usually still be supplied with original parts.

Sources: SpecCodex register, model data: Humbaur HTK, Humbaur (manufacturer)

Technical data

Dimensions and weights

Length5,480 mmcorrect
Width2,270 mmcorrect
Wheelbase3,830 mmcorrect
Unladen weight950 kgcorrect
Gross vehicle weight3,500 kgcorrect

Drivetrain and chassis

Wheels4correct
Top speed100 km/hcorrect

Frequently asked questions

How much does the Humbaur HTK 3500.41 2016 weigh?

The unladen weight is 950 kg.

What is the gross vehicle weight of the Humbaur HTK 3500.41 2016?

3,500 kg.

Up to what speed is the Humbaur HTK 3500.41 2016 approved?

Approved up to 100 km/h.

What are the dimensions of the Humbaur HTK 3500.41 2016?

5,480 mm × 2,270 mm.

When was the Humbaur HTK 3500.41 2016 built?

Production years: 2018-2025.

What to check before buying

  • Search the frame and welds at the axle mounts — that is where cracks start.
  • Check the brakes and the last inspection in the papers.
  • Work the gross weight against the towing vehicle before buying.
  • Compare the chassis number with the papers.
  • Look at the floor, cover or body from the inside — rust does not show from outside.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
