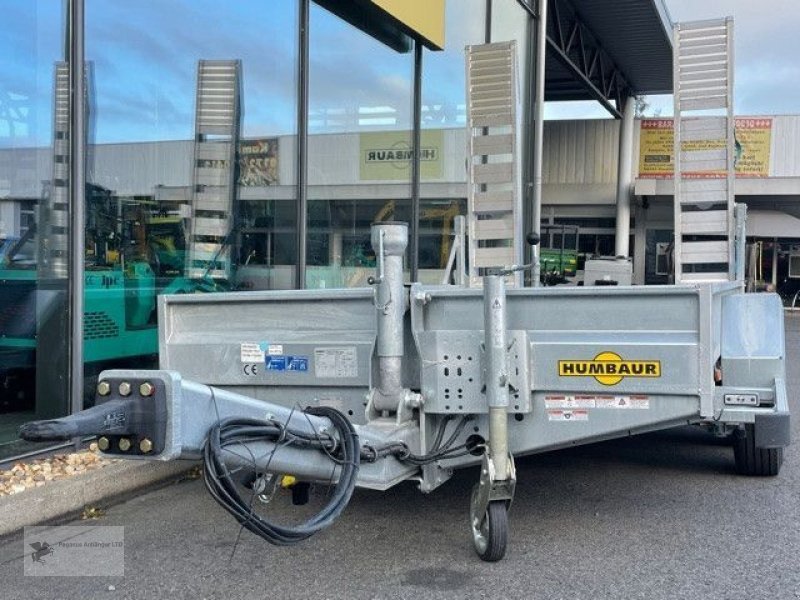

Humbaur HS 895020
Built: 2006-2007 · Series: HS
More machines from model year 2006
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Humbaur HS – Bavarian tandem low-bed trailer range for construction-machinery transport: 12 versions from 3.5 to 11.9 tonnes gross vehicle weight
Humbaur was founded in 1957 by Anton Humbaur in Donauwörth as a sales agency for agricultural machinery, trailers, ploughs and grain mills; the company moved to Gersthofen near Augsburg in 1980 and entered the distribution of car trailers in 1981, from which it grew into one of Europe's leading trailer manufacturers. The HS range denotes tandem low-bed trailers for construction-machinery transport with a lowered loading platform, a loading width of around two metres and a shallow loading angle thanks to outboard wheels; type numbers such as 105020, 353016 or 894020 identify the individual model variant within the range.
Read on 3 more paragraphs
The register lists 12 versions of the Humbaur HS with kerb weights from 630 to 2,970 kg and gross vehicle weights from 3,500 to 11,900 kg. Lengths range from 4,907 to 7,990 mm, widths from 2,140 to 2,550 mm.
As a low-bed trailer for construction machinery and compact equipment, the HS is aimed at construction and landscaping businesses and plant hire companies that regularly move excavators, wheel loaders or mini-excavators between job sites.
When buying used, the galvanised chassis should be checked for damage to the zinc coating, the loading ramps or boards for wear, and the axles, brakes and tyres for condition; on models with a hydraulic tipping function, the tightness of the system should also be checked. Humbaur supplies spare parts through its dealer network.
Sources: SpecCodex register, model data: Humbaur HS, Humbaur (manufacturer)
Technical data
Dimensions and weights
| Length | 7,600 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 1,000 mmcorrect |
| Unladen weight | 2,690 kgcorrect |
| Gross vehicle weight | 8,900 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Humbaur HS 895020 weigh?
The unladen weight is 2,690 kg.
What is the gross vehicle weight of the Humbaur HS 895020?
8,900 kg.
Up to what speed is the Humbaur HS 895020 approved?
Approved up to 100 km/h.
What are the dimensions of the Humbaur HS 895020?
7,600 mm × 2,550 mm.
When was the Humbaur HS 895020 built?
Production years: 2006-2007.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
