Start › Trailers › Humbaur › HS 353718

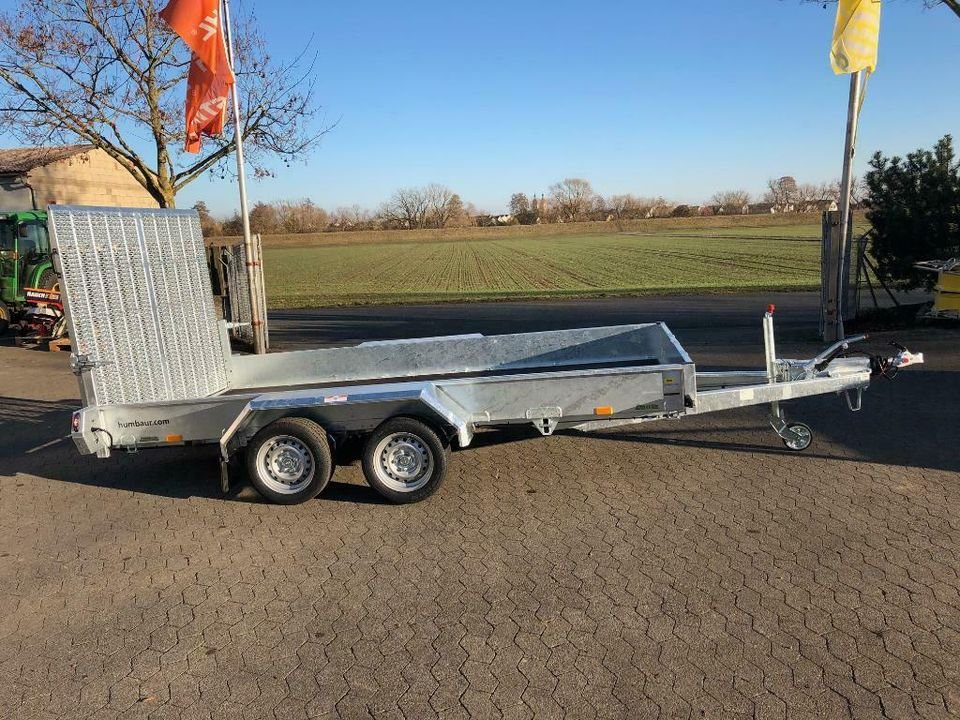

Humbaur HS 353718

Built: 2008-2022 · Series: HS

More machines from model year 2008

Source: https://www.kleinanzeigen.de/s-anzeige/humbaur-hs-353718-bau

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the HS 353718, Humbaur offers a model from the HS series. Production: 2008-2022. The machine is 5,700 mm long and 2,460 mm wide. The unladen weight is 1,151 kg. The wheelbase measures 4,340 mm. Top speed is 100 km/h. The gross vehicle weight is 3,500 kg. The machine runs on 4 wheels. The HS series covers 12 models. Unladen weight within it ranges from 630 to 2,970 kg; the HS 353718 sits in the lower part of that range with 1,151 kg. Its immediate neighbours are the HS 2008 below it with 840 kg and the HS 65 40 20 TA-BS above it with 1,535 kg. Gross vehicle weight within it ranges from 3,500 to 11,900 kg; here the HS 353718 sits at the bottom of that range with 3,500 kg. 1022 Humbaur models across 24 series are on record.

Humbaur HS – Bavarian tandem low-bed trailer range for construction-machinery transport: 12 versions from 3.5 to 11.9 tonnes gross vehicle weight

Humbaur was founded in 1957 by Anton Humbaur in Donauwörth as a sales agency for agricultural machinery, trailers, ploughs and grain mills; the company moved to Gersthofen near Augsburg in 1980 and entered the distribution of car trailers in 1981, from which it grew into one of Europe's leading trailer manufacturers. The HS range denotes tandem low-bed trailers for construction-machinery transport with a lowered loading platform, a loading width of around two metres and a shallow loading angle thanks to outboard wheels; type numbers such as 105020, 353016 or 894020 identify the individual model variant within the range.

Read on 3 more paragraphs

The register lists 12 versions of the Humbaur HS with kerb weights from 630 to 2,970 kg and gross vehicle weights from 3,500 to 11,900 kg. Lengths range from 4,907 to 7,990 mm, widths from 2,140 to 2,550 mm.

As a low-bed trailer for construction machinery and compact equipment, the HS is aimed at construction and landscaping businesses and plant hire companies that regularly move excavators, wheel loaders or mini-excavators between job sites.

When buying used, the galvanised chassis should be checked for damage to the zinc coating, the loading ramps or boards for wear, and the axles, brakes and tyres for condition; on models with a hydraulic tipping function, the tightness of the system should also be checked. Humbaur supplies spare parts through its dealer network.

Sources: SpecCodex register, model data: Humbaur HS, Humbaur (manufacturer)

Technical data

Dimensions and weights

Length5,700 mmcorrect
Width2,460 mmcorrect
Wheelbase4,340 mmcorrect
Unladen weight1,151 kgcorrect
Gross vehicle weight3,500 kgcorrect

Drivetrain and chassis

Wheels4correct
Top speed100 km/hcorrect

Frequently asked questions

How much does the Humbaur HS 353718 weigh?

The unladen weight is 1,151 kg.

What is the gross vehicle weight of the Humbaur HS 353718?

3,500 kg.

Up to what speed is the Humbaur HS 353718 approved?

Approved up to 100 km/h.

What are the dimensions of the Humbaur HS 353718?

5,700 mm × 2,460 mm.

When was the Humbaur HS 353718 built?

Production years: 2008-2022.

What to check before buying

  • Search the frame and welds at the axle mounts — that is where cracks start.
  • Check the brakes and the last inspection in the papers.
  • Work the gross weight against the towing vehicle before buying.
  • Compare the chassis number with the papers.
  • Look at the floor, cover or body from the inside — rust does not show from outside.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
