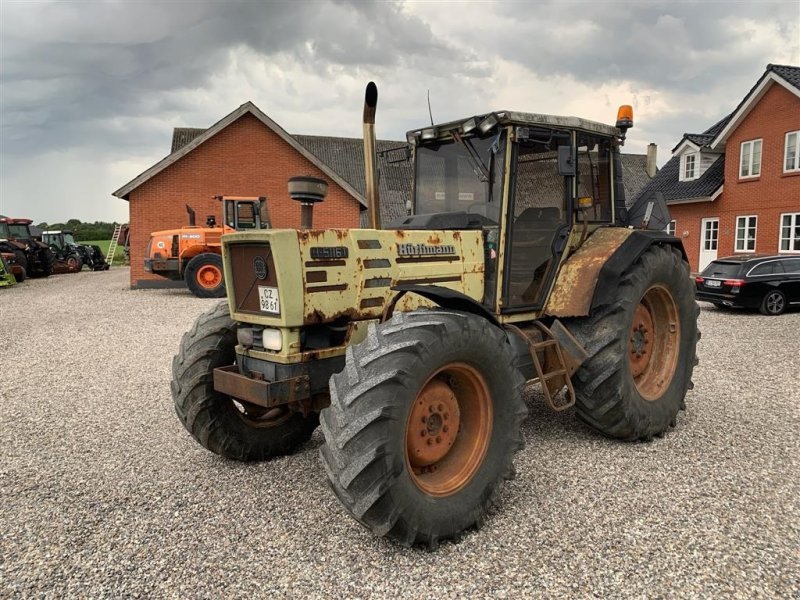

Hürlimann / Slh H-5116 T (A)
Built: 1984–1989 · Series: H-Baureihe
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann H series – five- and six-cylinder diesels from the SLH era, 5,702 to 6,842 cc, 81 to 121 kW, up to 670 Nm, kerb weight 4,200 to 6,650 kg
Hürlimann's H series was built under the SAME Lamborghini Hürlimann (SLH) cooperation, founded in 1979, from which today's SDF group headquartered in Treviglio later emerged. The register lists the types H-5116 T, H-6136 and H-6170 here, each in the four-wheel-drive version (A), from the upper output segment of the series. The models are built around five- and six-cylinder diesel engines, with the type number, as with other Hürlimann series, indicating cylinder count and power class, marking the upper end of what the brand offered in drawbar power at the time.
Read on 3 more paragraphs
The register lists 3 versions here with 80.9 to 121.4 kW from five- and six-cylinder diesel engines of 5,702 to 6,842 cc, torque of 410 to 670 Nm at 2,200 to 2,260 rpm, kerb weights of 4,200 to 6,650 kg, lengths of 4,231 to 4,740 mm, widths of 2,120 to 2,220 mm and heights of 2,695 to 2,830 mm.
With its power class the H series covered the upper segment of Hürlimann tractors and competed with comparable large tractors from Deutz-Fahr, Fendt and Case IH, used at the same time in professional arable farming and contracting; the standard four-wheel drive was sought after for heavy tillage with large mounted implements.
When buying a used H model, the key points are the condition of the engine and turbocharger, wear on clutch and gearbox given the series' high torque, and tightness of the hydraulics and four-wheel-drive hub, plus corrosion on cab and chassis and the function of the trailer brake valves; spare parts for the SLH-era series now run through the SDF group's parts channels.
Sources: SpecCodex register, model data: Hürlimann H-Baureihe, Hürlimann (Hersteller, SDF-Gruppe)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 110 hp (80.9 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 410 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 5correct |
| Displacement | 5,702 cm³correct |
| Bore | 110 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,231 mmcorrect |
|---|---|
| Width | 2,120 mmcorrect |
| Height | 2,695 mmcorrect |
| Wheelbase | 2,767 mmcorrect |
| Ground clearance | 660 mmcorrect |
| Unladen weight | 4,200 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 20 V/12 R or 24 V/12 Rcorrect |
| Front tyres | 10.00-16 ASF (A: 16.9-24 AS)correct |
| Rear tyres | 18.4-34 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 173correct |
Where this model stands
Power-to-weight ratio: 19.3 kW/t (81 kW / 4.2 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hürlimann / Slh H-5116 T (A) have?
The Hürlimann / Slh H-5116 T (A) delivers 110 hp.
How much does the Hürlimann / Slh H-5116 T (A) weigh?
The unladen weight is 4,200 kg.
What engine does the Hürlimann / Slh H-5116 T (A) have?
5 cylinders, 5,702 cm³ displacement, Diesel.
How fast does the Hürlimann / Slh H-5116 T (A) go?
Top speed is 25 km/h.
What are the dimensions of the Hürlimann / Slh H-5116 T (A)?
4,231 mm × 2,120 mm × 2,695 mm.
When was the Hürlimann / Slh H-5116 T (A) built?
Production years: 1984–1989.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
