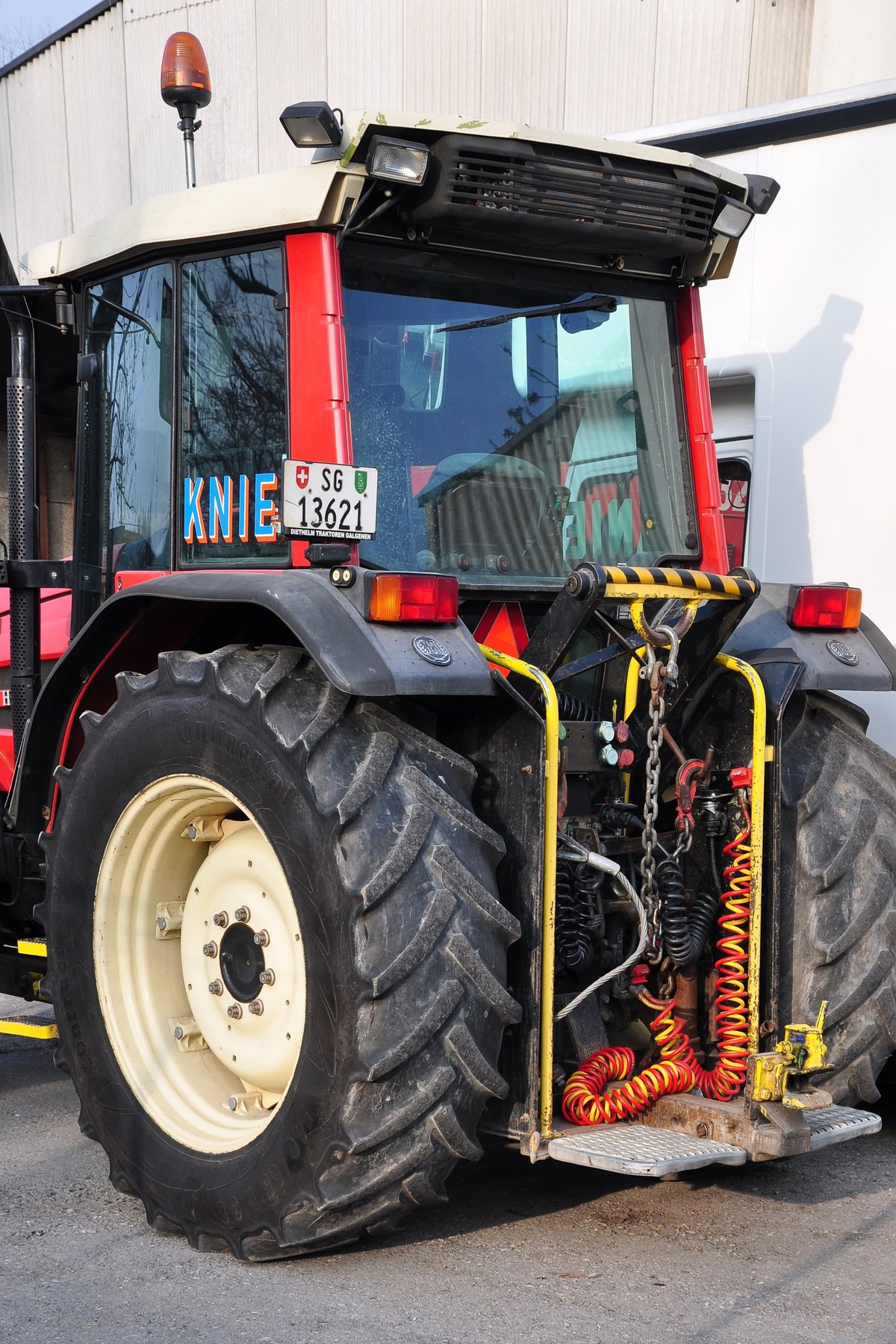

Hürlimann / Sdf XT 913
Built: 2000–2003 · Series: XT-Baureihe
More machines from model year 2000
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann XT 911 and XT 913 – the large six-cylinder range from the Swiss SDF brand: 6.0-litre diesel of 80.9 to 97.1 kW, unladen weight from 5,380 to 5,430 kg
Hürlimann was founded in 1929 in Wil in the canton of St Gallen and has belonged to the Italian SAME group since 1979, which today trades as SAME Deutz-Fahr (SDF); the brand remains distinct within the group, while development and production have moved to SDF's plants in Italy. The XT range gathers the brand's large six-cylinder models: XT 911 and XT 913 represent the upper power class with a 6.0-litre six-cylinder engine drawn from the shared SDF engine pool, which also runs unchanged under the Deutz-Fahr and Same badges.
Read on 3 more paragraphs
The register lists 2 versions of 80.9 to 97.1 kW, a displacement of 6,000 cm³ across six cylinders, torque from 405 to 497 Nm at 2,500 rpm, unladen weights from 5,380 to 5,430 kg, lengths from 4,380 to 4,550 mm, widths from 2,230 to 2,250 mm and a height of 2,805 mm.
As upper-mid-class tractors, the XT 911 and XT 913 target mixed arable and grassland farms as well as contractors who need a compact yet powerful tractor for heavy tillage and transport work; in this class Hürlimann competes with its own group siblings Deutz-Fahr and Same as well as Fendt, Case IH and John Deere.
On a used example, what counts is operating hours, the condition of clutch and gearbox, the tightness of engine and hydraulics, cab suspension and susceptibility of the bodywork to rust; because engine and many components are shared across the group, parts supply through Deutz-Fahr and Same dealers is usually straightforward.
Sources: SpecCodex register, model data: Hürlimann XT-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 132 hp (97.1 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 497 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,380 mmcorrect |
|---|---|
| Width | 2,230 mmcorrect |
| Height | 2,805 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 5,430 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 18 V/18 R and 72 V/72 Rcorrect |
| Front tyres | 14.9 R 30 AScorrect |
| Rear tyres | 18.4 R 38 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17.9 kW/t (97 kW / 5.4 t)
Power class: Large (100–180 hp)
Stronger than 78% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hürlimann / Sdf XT 913 have?
The Hürlimann / Sdf XT 913 delivers 132 hp.
How much does the Hürlimann / Sdf XT 913 weigh?
The unladen weight is 5,430 kg.
What engine does the Hürlimann / Sdf XT 913 have?
6 cylinders, 6,000 cm³ displacement, Diesel.
How fast does the Hürlimann / Sdf XT 913 go?
Top speed is 40 km/h.
What are the dimensions of the Hürlimann / Sdf XT 913?
4,380 mm × 2,230 mm × 2,805 mm.
When was the Hürlimann / Sdf XT 913 built?
Production years: 2000–2003.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
