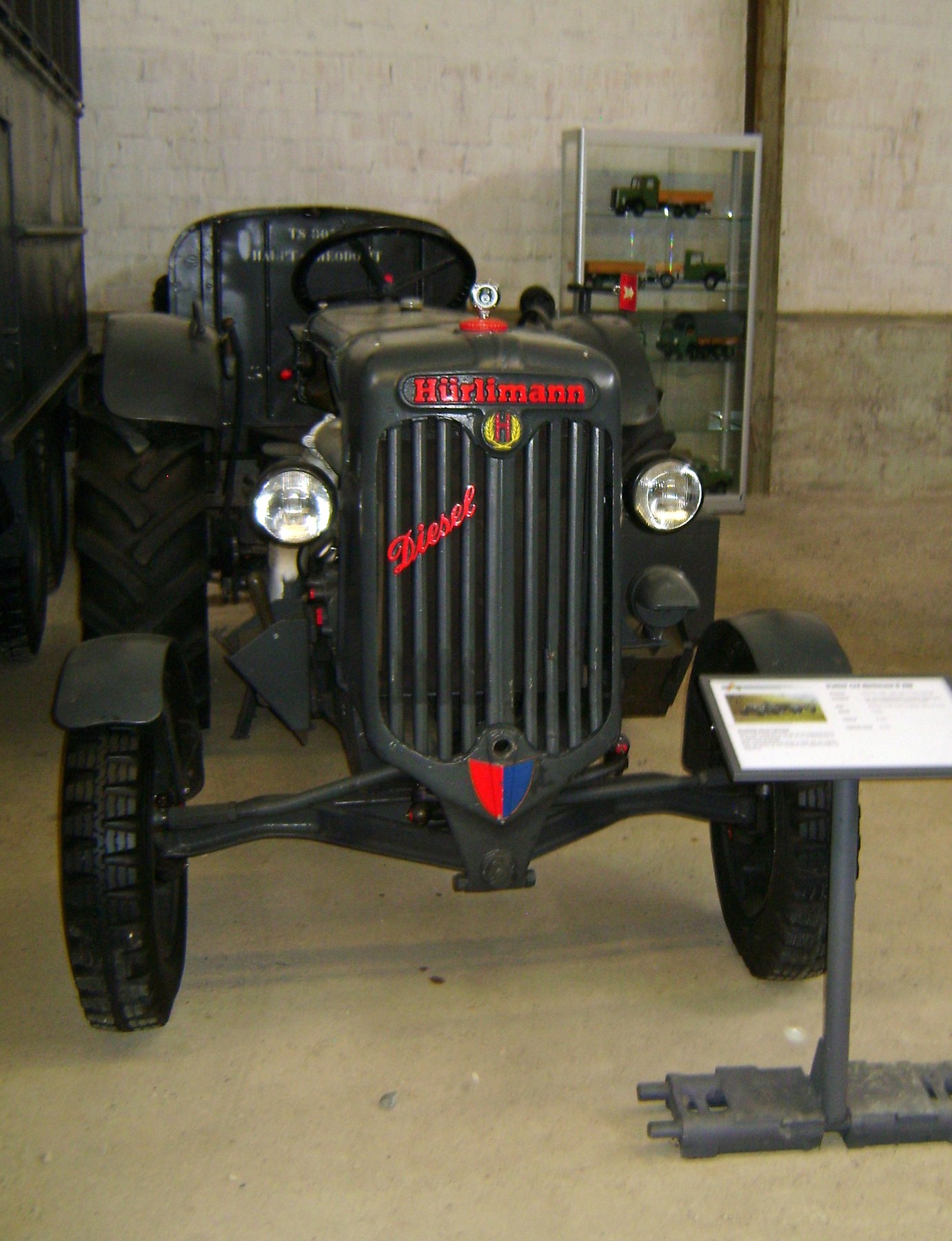

Hürlimann D 80 SSK
Built: 1956–1958 · Series: D-Reihe
More machines from model year 1956
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann D Series – Swiss Diesel Tractors From the 1940s to the 1970s: two- to six-cylinder engines with 20.6 to 106.6 kW (28 to 145 hp), 2,360 to 9,186 cm³ displacement
The D designation covered the diesel tractors built by the Swiss manufacturer Hürlimann in Wil from the late 1940s to the mid-1970s – from the D-400 (production starting 1946) through the D-100 and D-200 families to the D-550 Hydrostat of 1974. That long span explains the wide range of register data: output from 20.6 to 106.6 kW, models rated in horsepower from 28 to 145 hp, and cylinder counts from two to six.
Read on 3 more paragraphs
Recorded operating weight runs from 1,480 to 6,350 kg, displacement from 2,360 to 9,186 cm³, and wheelbase from 1,636 to 3,000 mm. Top speed of the listed models spans 20 to 45 km/h, reflecting the long technical development from early post-war designs to later Synchromatic gearboxes.
Hürlimann was an independent Swiss builder before the company became part of the Italian SAME group. For collectors and buyers of historic D-series tractors, the exact model designation matters most, since engine, gearbox and drive type vary considerably within the series.
Across the three decades of this series, mounting technology also changed: early D models used a category I three-point hitch, the more powerful later types already category II under ISO 730, and the PTO moved from the single-speed 540 standard to a two-speed version with 540 and 1,000 rpm. Parts for early D models are today mainly available through specialist Hürlimann and SAME dealers.
Sources: SpecCodex register, model data: Hürlimann D-Reihe, Hürlimann
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 38 hp (27.9 kW)correct |
| Rated speed | 2,070 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,360 cm³correct |
| Bore | 85 mmcorrect |
| Stroke | 104 mmcorrect |
| Compression ratio | 19correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,925 mmcorrect |
|---|---|
| Width | 1,600 mmcorrect |
| Height | 1,633 mmcorrect |
| Wheelbase | 1,810 mmcorrect |
| Ground clearance | 410 mmcorrect |
| Unladen weight | 1,726 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 10V/2Rcorrect |
| Forward gears | 10correct |
| Reverse gears | 2correct |
| Front tyres | 5.50-16 ASFcorrect |
| Rear tyres | 9-36 AScorrect |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 39 lcorrect |
|---|
Origin and approval
| Units built | 110correct |
|---|
Where this model stands
Power-to-weight ratio: 16.2 kW/t (28 kW / 1.7 t)
Power class: Compact (< 40 hp)
Stronger than 23% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hürlimann D 80 SSK have?
The Hürlimann D 80 SSK delivers 38 hp.
How much does the Hürlimann D 80 SSK weigh?
The unladen weight is 1,726 kg.
What engine does the Hürlimann D 80 SSK have?
4 cylinders, 2,360 cm³ displacement, Diesel.
How fast does the Hürlimann D 80 SSK go?
Top speed is 20 km/h.
What are the dimensions of the Hürlimann D 80 SSK?
2,925 mm × 1,600 mm × 1,633 mm.
When was the Hürlimann D 80 SSK built?
Production years: 1956–1958.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
