Start › Wheel loaders › Hitachi › LX70 Super

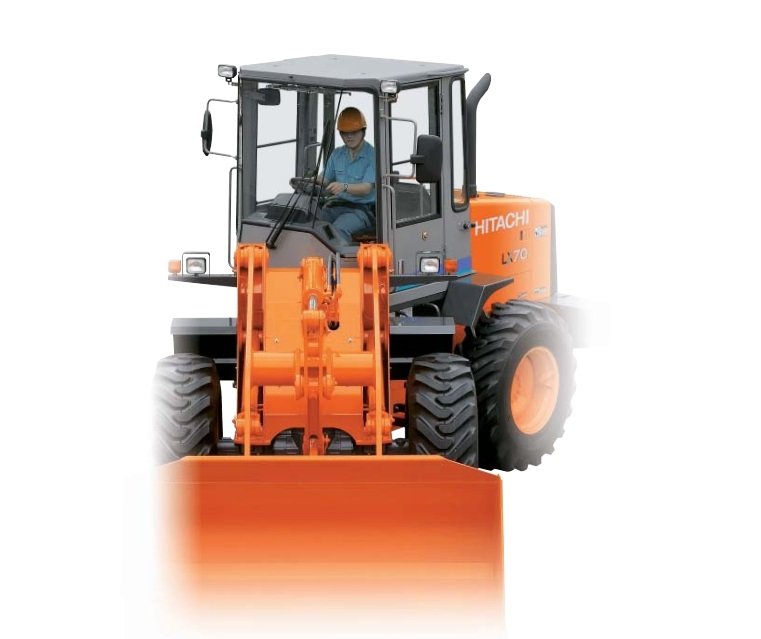

Hitachi LX70 Super

Series: Hitachi Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The LX70 Super from Hitachi is part of the Hitachi Wheel Loader series. The engine delivers 62.6 kW, has 4 cylinders, with a displacement of 3,834.6 cm³. Torque is 304.1 Nm. Rated speed is 2,300 rpm. The unladen weight is 6,680 kg. The wheelbase measures 2,551.2 mm. Ground clearance is 405.4 mm. The tank holds 140.1 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,600 rpm. The pump delivers 115.1 l/min. The hydraulic tank holds 60.2 litres. The cooling system holds 21.2 litres. The electrical system runs on 24 V. The engine fitted is the W04CT. Tyre size: 15,5x25. The Hitachi Wheel Loader series covers 29 models. Rated output within it ranges from 16.4 to 331.1 kW; the LX70 Super sits at the bottom of that range with 62.6 kW. Its immediate neighbours are the LX50-7 below it with 44 kW and the EX70-7 above it with 64.9 kW. 347 Hitachi models across 20 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelW04CTcorrect
Power62.6 kWcorrect
Rated speed2,300 rpmcorrect
Torque304.1correct
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Displacement3,834.6 cm³correct
Aspirationturbochargedcorrect
Coolant capacity21.2 lcorrect

Dimensions and weights

Wheelbase2,551.2correct
Ground clearance405.4correct
Unladen weight6,680 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears2correct
Reverse gears2correct
Tyre size15.5x25correct
System voltage24 Vcorrect

Working data

Pump flow115.1 l/mincorrect
Hydraulic oil capacity60.2 lcorrect
Fuel tank capacity140.1 lcorrect

Other data

Height3,112correct

Where this model stands

Power-to-weight ratio: 9.4 kW/t (63 kW / 6.7 t)

Stronger than 31% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hitachi LX70 Super have?

The Hitachi LX70 Super delivers 62.6 kW.

How much does the Hitachi LX70 Super weigh?

The unladen weight is 6,680 kg.

What engine does the Hitachi LX70 Super have?

4 cylinders, 3,835 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
