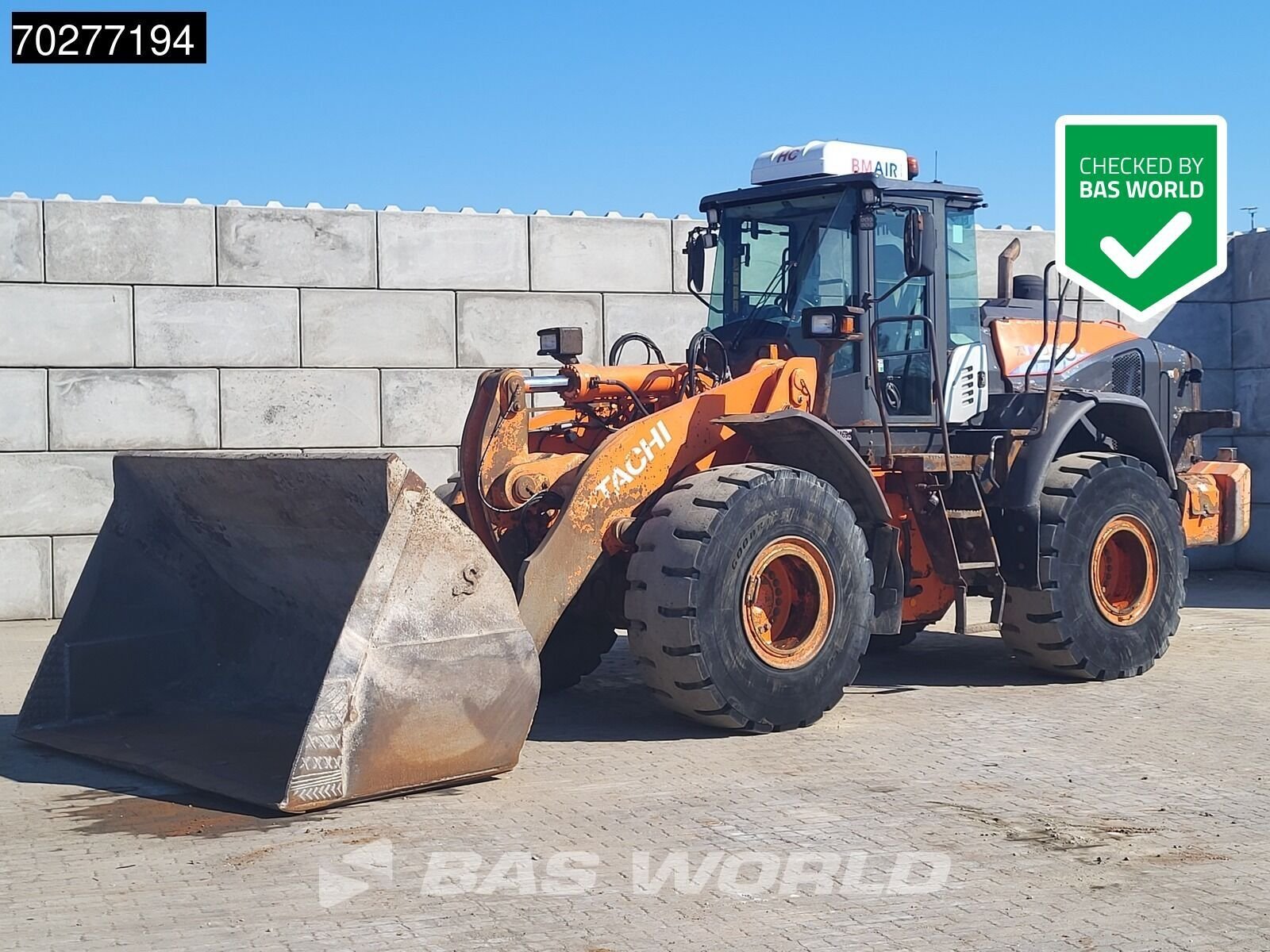

Hitachi LX200

Series: Hitachi Wheel Loader

Source: https://www.landwirt.com/baumaschinen/radlader/hitachi/land-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the LX200, Hitachi offers a model from the Hitachi Wheel Loader series. The engine delivers 179 kW, has 6 cylinders, with a displacement of 11,667.6 cm³. Torque is 960.1 Nm. Rated speed is 2,100 rpm. The unladen weight is 21,019.5 kg. The wheelbase measures 3,401.6 mm. Ground clearance is 515.1 mm. The tank holds 340.3 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 332.4 l/min. The hydraulic tank holds 200.2 litres. The cooling system holds 80.3 litres. The electrical system runs on 24 V. The engine fitted is the PE6T34. Tyre size: 26,5-25-20PR. The Hitachi Wheel Loader series covers 29 models. Rated output within it ranges from 16.4 to 331.1 kW; the LX200 sits in the middle of that range with 179 kW. Its immediate neighbours are the LX190-7 below it with 165.5 kW and the LX230-3 above it with 193.9 kW. 347 Hitachi models across 20 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelPE6T34correct
Power179 kWcorrect
Rated speed2,100 rpmcorrect
Torque960.1correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement11,667.6 cm³correct
Aspirationturbochargedcorrect
Coolant capacity80.3 lcorrect

Dimensions and weights

Wheelbase3,401.6correct
Ground clearance515.1correct
Unladen weight21,019.5 kgcorrect

Drivetrain and chassis

Gearbox typeTorque Convertercorrect
Forward gears4correct
Reverse gears4correct
Tyre size26.5-25-20PRcorrect
System voltage24 Vcorrect

Working data

Pump flow332.4 l/mincorrect
Hydraulic oil capacity200.2 lcorrect
Fuel tank capacity340.3 lcorrect

Other data

Height3,572.3correct

Where this model stands

Power-to-weight ratio: 8.5 kW/t (179 kW / 21 t)

Stronger than 81% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hitachi LX200 have?

The Hitachi LX200 delivers 179 kW.

How much does the Hitachi LX200 weigh?

The unladen weight is 21,020 kg.

What engine does the Hitachi LX200 have?

6 cylinders, 11,668 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
