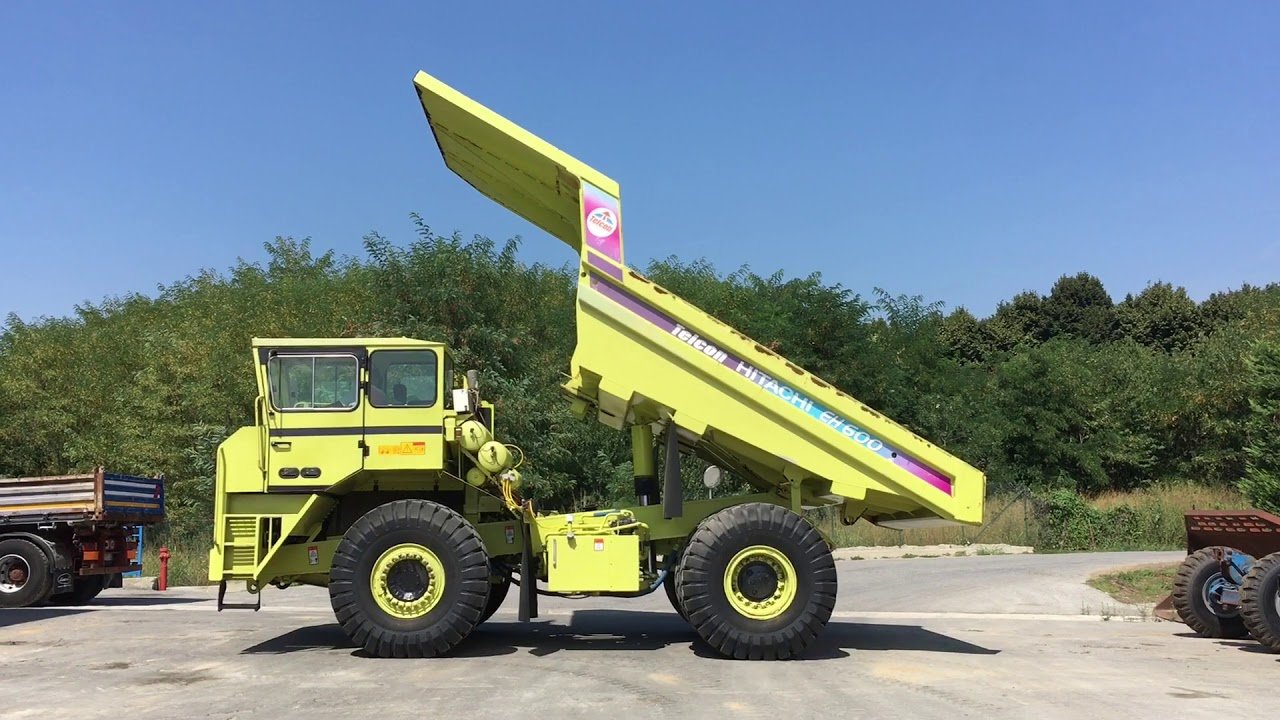

Hitachi EH600

Series: Hitachi Rock Truck

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the EH600, Hitachi offers a model from the Hitachi Rock Truck series. The engine delivers 405.5 hp (286.3 kW), has 6 cylinders, with a displacement of 14,010.9 cm³. Rated speed is 2,100 rpm. The wheelbase measures 3,651.5 mm. Ground clearance is 451.1 mm. Top speed is 59.7 km/h. The tank holds 548.9 litres. The hydraulic tank holds 109.8 litres. The cooling system holds 70 litres. The oil fill is 34.1 litres. The electrical system runs on 24 V. The engine fitted is the N14-C400. Tyre size: Michelin 18,00R25 E4. The Hitachi Rock Truck series covers 24 models. Rated output within it ranges from 405.5 to 2,889.2 hp; the EH600 sits at the bottom of that range with 405.5 hp. Its immediate neighbours are the EH700-2 above it with 532.3 hp. 347 Hitachi models across 20 series are on record. The model is listed under Mining equipment. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine modelN14-C400correct
Power405.5 hp (286.3 kW)correct
Rated speed2,100 rpmcorrect
Cylinders6correct
Displacement14,010.9 cm³correct
AspirationTurbocharged/Aftercooledcorrect
Coolant capacity70 lcorrect
Engine oil capacity34.1 lcorrect

Dimensions and weights

Length8,040.6correct
Width3,730.8correct
Wheelbase3,651.5correct
Ground clearance451.1correct

Drivetrain and chassis

Gearbox typeAllison CLBT 754. automatic gearbox planetary type transmission with built in retarder acorrect
Tyre sizeMichelin 18.00R25 E4correct
Top speed59.7 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity109.8 lcorrect
Fuel tank capacity548.9 lcorrect

Frequently asked questions

How much power does the Hitachi EH600 have?

The Hitachi EH600 delivers 406 hp.

What engine does the Hitachi EH600 have?

6 cylinders, 14,011 cm³ displacement.

How fast does the Hitachi EH600 go?

Top speed is 59.7 km/h.

What are the dimensions of the Hitachi EH600?

8,041 mm × 3,731 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 19 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
