Hitachi EH1000

Series: Hitachi Rock Truck

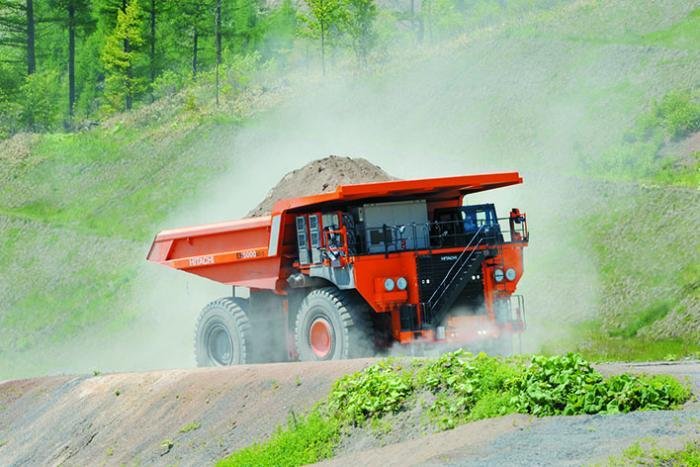

The photo shows the EH5000ACII from the same series. Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The EH1000 from Hitachi is part of the Hitachi Rock Truck series. The engine delivers 709.7 hp (483.2 kW), has 6 cylinders, with a displacement of 18,800.9 cm³. Rated speed is 2,100 rpm. The wheelbase measures 4,291.6 mm. Ground clearance is 691.9 mm. Top speed is 61.3 km/h. The tank holds 700.3 litres. The cooling system holds 189.6 litres. The oil fill is 60.9 litres. The electrical system runs on 24 V. The engine fitted is the QSK19-C700. Tyre size: 24,00R35 E4 Radial. The Hitachi Rock Truck series covers 24 models. Rated output within it ranges from 405.5 to 2,889.2 hp; the EH1000 sits at the bottom of that range with 709.7 hp. Its immediate neighbours are the EH750-3 below it with 532.3 hp and the EH1100-3 above it with 770.5 hp. 347 Hitachi models across 20 series are on record. The model is listed under Mining equipment. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelQSK19-C700correct
Power709.7 hp (483.2 kW)correct
Rated speed2,100 rpmcorrect
Cylinders6correct
Displacement18,800.9 cm³correct
AspirationTurbocharged/Aftercooledcorrect
Coolant capacity189.6 lcorrect
Engine oil capacity60.9 lcorrect

Dimensions and weights

Length9,302.5correct
Width4,751.8correct
Wheelbase4,291.6correct
Ground clearance691.9correct

Drivetrain and chassis

Gearbox typeAllison M6610, planetary type, with integral torque converter features automatic gearboxcorrect
Tyre size24.00R35 E4 Radialcorrect
Top speed61.3 km/hcorrect
System voltage24 Vcorrect

Working data

Fuel tank capacity700.3 lcorrect

Frequently asked questions

How much power does the Hitachi EH1000 have?

The Hitachi EH1000 delivers 710 hp.

What engine does the Hitachi EH1000 have?

6 cylinders, 18,801 cm³ displacement.

How fast does the Hitachi EH1000 go?

Top speed is 61.3 km/h.

What are the dimensions of the Hitachi EH1000?

9,302 mm × 4,752 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
