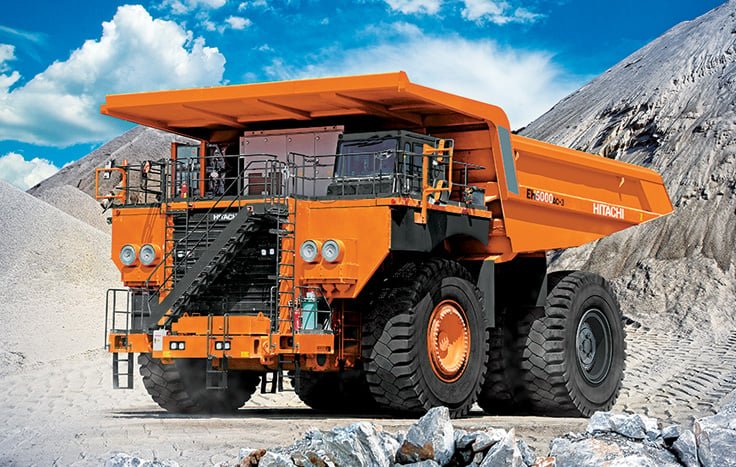

Hitachi EH5000

Series: Hitachi Rock Truck

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Hitachi Rock Truck series from Hitachi includes the EH5000. The engine delivers 2,737.4 hp (1,938.8 kW), has 16 cylinders, with a displacement of 65,007.5 cm³. Torque is 10,930.6 Nm. Rated speed is 1,900 rpm. The wheelbase measures 6,150.9 mm. Ground clearance is 911.4 mm. Top speed is 66.9 km/h. The tank holds 3,785.4 litres. Maximum torque is reached at 1,500 rpm. The hydraulic tank holds 1,256.8 litres. The oil fill is 242.3 litres. The electrical system runs on 24 V. The engine fitted is the DDEC IV 16V-4000. Tyre size: 53/80R63 E4 Radial. The Hitachi Rock Truck series covers 24 models. Rated output within it ranges from 405.5 to 2,889.2 hp; the EH5000 sits at the top of that range with 2,737.4 hp. Its immediate neighbours are the EH4000AC-3 below it with 2,534.4 hp and the EH 5000 AC - 2 (C 23 R) above it with 2,738.4 hp. 347 Hitachi models across 20 series are on record. The model is listed under Mining equipment. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine modelDDEC IV 16V-4000correct
Power2,737.4 hp (1,938.8 kW)correct
Rated speed1,900 rpmcorrect
Torque10,930.6correct
Speed at max. torque1,500 rpmcorrect
Cylinders16correct
Displacement65,007.5 cm³correct
AspirationTurbocharged & low temperature aftercooledcorrect
Engine oil capacity242.3 lcorrect

Dimensions and weights

Length14,420.1correct
Wheelbase6,150.9correct
Ground clearance911.4correct

Drivetrain and chassis

Tyre size53/80R63 E4 Radialcorrect
Top speed66.9 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity1,256.8 lcorrect
Fuel tank capacity3,785.4 lcorrect

Frequently asked questions

How much power does the Hitachi EH5000 have?

The Hitachi EH5000 delivers 2,737 hp.

What engine does the Hitachi EH5000 have?

16 cylinders, 65,008 cm³ displacement.

How fast does the Hitachi EH5000 go?

Top speed is 66.9 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
