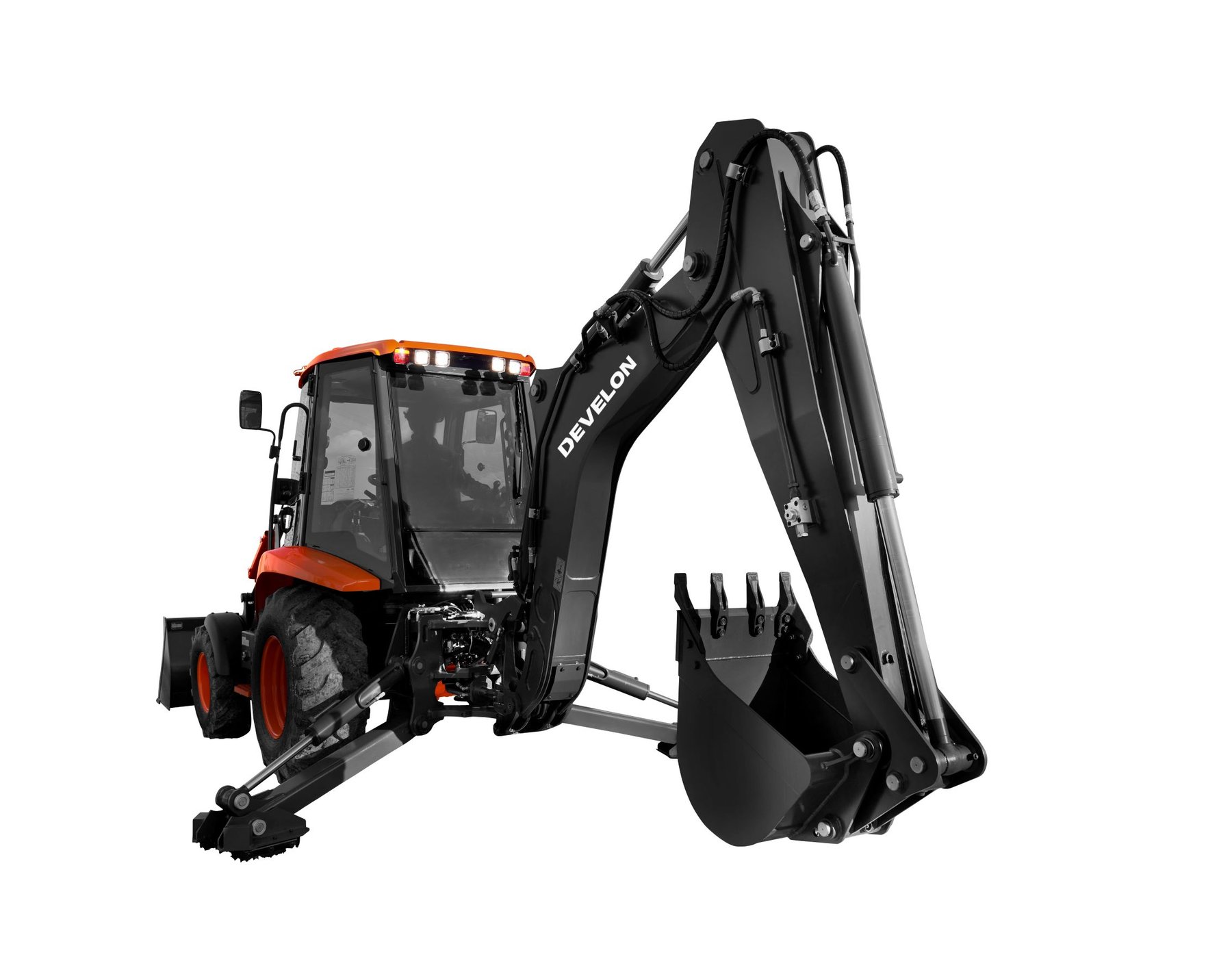

HD Construction Equipment DM02PP
Built: 2019-2026 · Series: Other models
More machines from model year 2019
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
HD Construction Equipment – other nonroad diesel engines: the collective page of the D and DL ranges outside the named models, from the Doosan Infracore heritage in the HD Hyundai group, 18 to 890 kW
HD Construction Equipment builds diesel engines that trace back to the Doosan Infracore engine programme, trading under the HD Hyundai name since the takeover by the South Korean Hyundai group and its 2023 rebrand. This page gathers the engines the register could not assign to a named range; the smaller D18, D24 and D34 ranges and the larger DL06 and DL08 ranges are established Doosan engine families for excavators, wheel loaders and other construction machinery, and version codes such as DL06-LDE03 combine the range with a code for emission stage and variant.
Read on 3 more paragraphs
The register lists here 39 versions with 18 to 890 kW rated output at 1,500 to 2,600 rpm, from three- to twelve-cylinders, mostly inline (34) and, on the largest units, in V configuration (5), with 90 to 128 mm bore and 94 to 155 mm stroke. Maximum torque ranges from 105 to 4,721.5 Nm at speeds of 1,300 to 1,800 rpm. Among the turbochargers, waste-gate design prevails (27) ahead of fixed geometry (6); among the emission stages, Tier 4 (Final or Phase-in) leads with 27 ahead of Tier 3 with 5, Tier 2 with 4 and Interim Tier 4 with 3 versions. Model years run from 2011 to 2027.
The D and DL ranges cover practically the whole power spectrum from small mini excavators to large crawler excavators and wheel loaders, competing with Cummins, Perkins and Yanmar engines in Korean and international construction machinery.
On a used purchase, operating hours count, the condition of the turbocharger, the common-rail injection and its injectors, the cooling system and charge-air cooler, and on the newer Tier 4 engines the exhaust aftertreatment; on the large twelve-cylinder units with the highest torque values, it is also worth checking engine mounts and the coupling to the attachment. Spares run through the HD Hyundai distribution network.
Sources: Kennwerte der Modelle HD Construction Equipment (weitere Nonroad-Dieselmotoren)
Technical data
Engine
| Engine code | DM02-LEG00correct |
|---|---|
| Engine family | KDICL02.4LEAcorrect |
| Engine families | SDICL02.4LEA; TDICL02.4LEA; PDICL02.4LEA; NDICL02.4LEA; RDICL02.4LEA; KDICL02.4LEA; MDICL02.4LEA; LDICL02.4LEAcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 50 kWcorrect |
| Power band | 37<=kW<56correct |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 265 N·mcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 4correct |
| Cylinder layout | in linecorrect |
| Bore | 90 mmcorrect |
| Stroke | 94 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Version | DM02-LEG00correct |
|---|---|
| Built from | 2019correct |
| Built to | 2026correct |
| Model year from | 2019correct |
| Model year to | 2026correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the HD Construction Equipment DM02PP have?
The HD Construction Equipment DM02PP delivers 50 kW.
When was the HD Construction Equipment DM02PP built?
Production years: 2019-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
