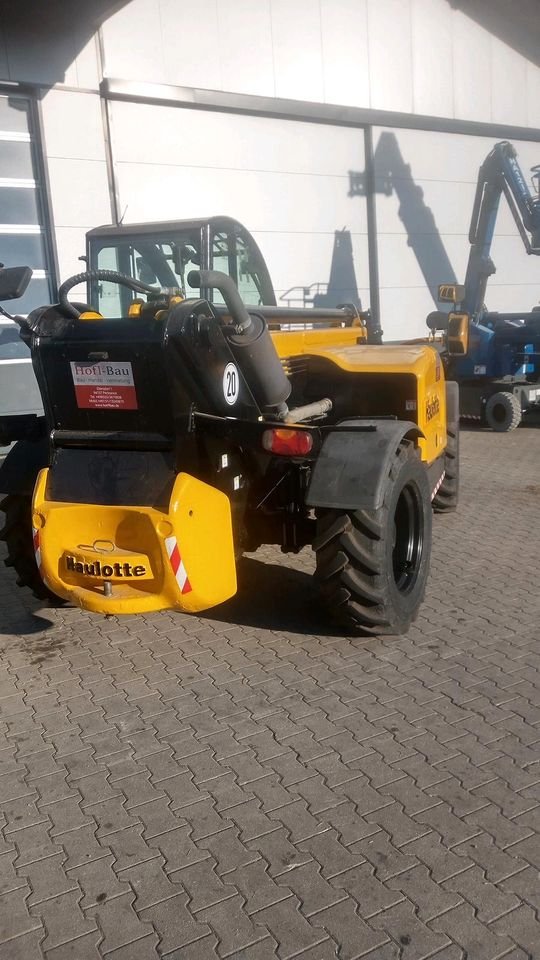

Haulotte HTL11532
Series: Haulotte Telescopic Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Haulotte telehandlers HTL 4014 to HTL 11532 – the telehandlers of the French platform maker: HTL for Haulotte Telescopic Loader, the first digits as capacity, the last as lift height, Kohler
Haulotte of L'Horme near Saint-Étienne is Europe's largest maker of aerial work platforms and added telehandlers to its programme in the 2000s to offer rental companies the machine that stands beside the platform on every site. The type logic: HTL stands for Haulotte Telescopic Loader, the digits give capacity and lift height – in the European reading HTL 4014 4 t to 14 m and HTL 4017 4 t to 17 m, in the North American reading HTL 7732 7,700 lb to 32 ft, HTL 9045 9,000 lb to 45 ft and HTL 11532 11,500 lb to 32 ft, as the factory nomenclature provides for the respective market. The engines come from Kohler (KDI range to stage IV), Deutz (BF4M 2012) and Perkins, four-cylinders of 3.4 to 6.6 litres at 2,200 to 2,300 rpm, mounted transversely in the frame beside the boom.
Read on 3 more paragraphs
The register lists 7 versions with 55.4 to 83.1 kW from engines of 3,392 to 6,617 cm³, torque from 375 to 450 Nm, service weights from 8,281 to 11,712 kg, lengths from 4,968 to 6,706 mm and heights from 2,620 to 2,670 mm.
In the telehandler business Haulotte competes with Manitou, JCB, Merlo and Genie but is present above all through the rental fleets that source their platforms and loaders from the same maker; in North America Haulotte sells the HTL through its subsidiary in Virginia Beach.
On used machines, operating hours, the condition of boom, wear pads and telescope chains, leak-free cylinders, load-moment limiter, axles and tyres and parts supply through Haulotte and the engine makers count.
Sources: SpecCodex register, model data: Haulotte Teleskoplader, Haulotte Group (Hersteller, L'Horme)
Technical data
Engine
| Engine model | PERKINS TIER IVcorrect |
|---|---|
| Power | 112.9 hp (83.1 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 450.1 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Displacement | 3,392.1 cm³correct |
| Engine oil capacity | 9.5 lcorrect |
Dimensions and weights
| Length | 6,309.4 mmcorrect |
|---|---|
| Height | 2,620 mmcorrect |
| Wheelbase | 2,926.1 mmcorrect |
| Ground clearance | 499.9 mmcorrect |
| Unladen weight | 10,811.8 kgcorrect |
Drivetrain and chassis
| Gearbox type | hydrostatic transmissioncorrect |
|---|---|
| Tyre size | 400/80-24correct |
Working data
| Lift height | 9,780 mmcorrect |
|---|---|
| Fuel tank capacity | 129.8 lcorrect |
Where this model stands
Power-to-weight ratio: 7.7 kW/t (83 kW / 10.8 t)
Stronger than 65% of the telehandlers in the register — out of 661 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Haulotte HTL11532 have?
The Haulotte HTL11532 delivers 113 hp.
How much does the Haulotte HTL11532 weigh?
The unladen weight is 10,812 kg.
What engine does the Haulotte HTL11532 have?
3,392 cm³ displacement.
What are the dimensions of the Haulotte HTL11532?
6,309 mm × 2,620 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
