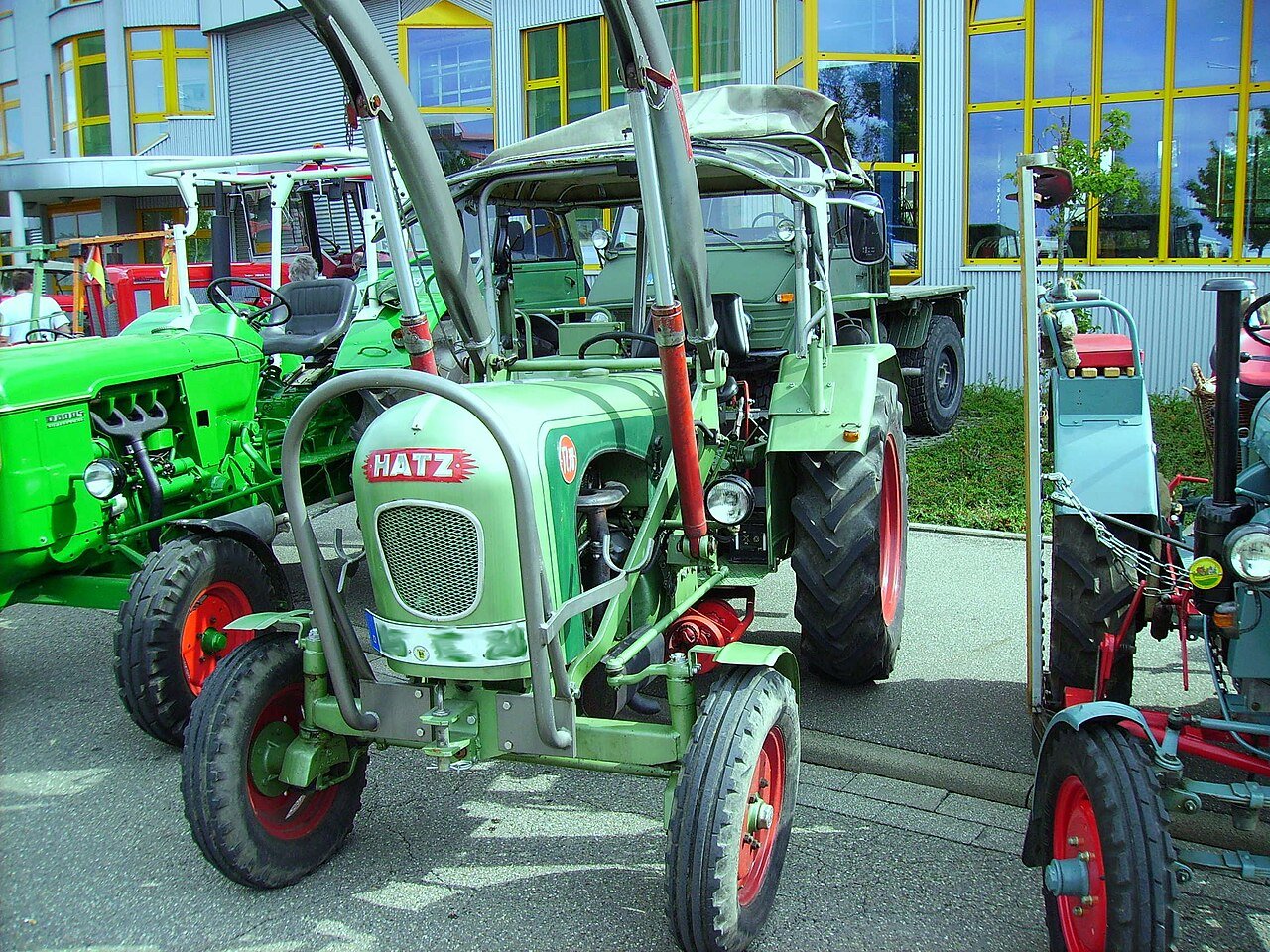

Hatz TL-38
Built: 1960–1964 · Series: TL-Reihe
More machines from model year 1960
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hatz TL series – the tractors of the engine maker from Ruhstorf (1950s–1960s): TL 10 to TL 38, the number as hp, one to three cylinders of its own manufacture
Hatz of Ruhstorf an der Rott in Lower Bavaria is known today as a maker of small diesel engines for construction machinery and generator sets – in the 1950s and 1960s the company also built tractors, like many post-war engine makers who wanted to sell their engines in a tractor of their own. The TL series is that programme: the number gives the output in hp – TL 10 with 10 hp, TL 12, TL 13, TL 15, TL 17, TL 18, TL 22, TL 24, TL 25, TL 28, TL 33 and TL 38 – and P marks a version variant. The engines came from in-house production: one-, two- and three-cylinder diesels with which Hatz covered the class from 10 to 38 hp, the small ones for part-time farms, the three-cylinders for the medium farm.
Read on 3 more paragraphs
The register lists 15 versions with 7.4 to 27.9 kW (10 to 38 hp), 567 to 2,987 cm³ with one to three cylinders, rated speeds up to 1,800 rpm, unladen weights from 715 to 1,870 kg, lengths from 2,470 to 3,328 mm, widths from 1,440 to 1,600 mm and heights from 1,386 to 1,800 mm – all diesel.
Hatz ended tractor production in the 1960s when the volume makers took over the market and concentrated on engines – a decision that carries the company to this day; the TL tractors remained a regional phenomenon of Bavaria and Austria.
Used Hatz tractors are rare collector pieces; when buying, engine condition and parts availability count, possible for the engines partly through Hatz itself, for gearboxes and axles only through specialists and remanufacturers.
Sources: SpecCodex register, model data: Hatz TL-Reihe, Motorenfabrik Hatz (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 38 hp (27.9 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,987 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,328 mmcorrect |
|---|---|
| Width | 1,588 mmcorrect |
| Height | 1,450 mmcorrect |
| Wheelbase | 2,066 mmcorrect |
| Ground clearance | 330 mmcorrect |
| Unladen weight | 1,750 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/4 Rcorrect |
| Forward gears | 8correct |
| Reverse gears | 4correct |
| Front tyres | 5.50-16 ASFcorrect |
| Rear tyres | 11-28 AScorrect |
| Top speed | 19.5 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 243correct |
Other data
| PTO speed | 554/1108 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 15.9 kW/t (28 kW / 1.8 t)
Power class: Compact (< 40 hp)
Stronger than 23% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hatz TL-38 have?
The Hatz TL-38 delivers 38 hp.
How much does the Hatz TL-38 weigh?
The unladen weight is 1,750 kg.
What engine does the Hatz TL-38 have?
3 cylinders, 2,987 cm³ displacement, Diesel.
How fast does the Hatz TL-38 go?
Top speed is 19.5 km/h.
What are the dimensions of the Hatz TL-38?
3,328 mm × 1,588 mm × 1,450 mm.
When was the Hatz TL-38 built?
Production years: 1960–1964.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
