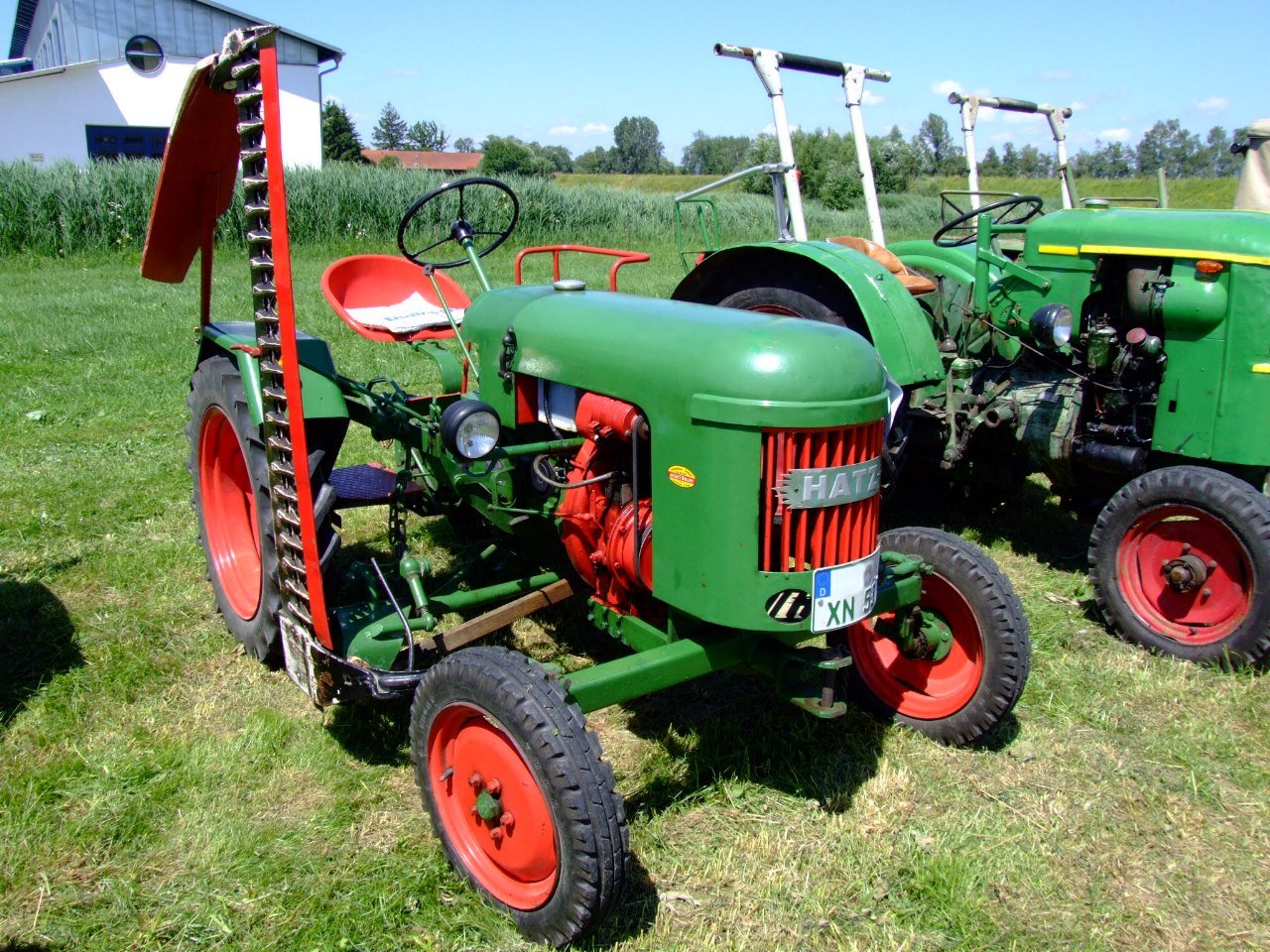

Hatz TL-24
Lata produkcji: 1956–1959 · Seria: TL-Baureihe
Dane techniczne
| Construction | Blockbauweise |
| Cooling | Luftkühlung |
| Cylinders | 2 |
| Displacement cm3 | 1992 cm3 |
| Drive type | Heckantrieb |
| Fuel | Diesel |
| Gearbox | 5 V/1 R |
| Ground clearance mm | 400 mm |
| Height mm | 1600 mm |
| Length mm | 2860 mm |
| Power km | 24 KM |
| Power kw | 17.7 kW |
| Rated rpm | 1.800 obr./min |
| Tires front | 5.00-16 ASF |
| Tires rear | 8-32 AS |
| Top speed kmh | 20 km/h |
| Units built | 104 |
| Weight kg | 1340 kg |
| Wheelbase mm | 1840 mm |
| Width mm | 1500 mm |
Inne modele tej serii
Źródła: [1]
