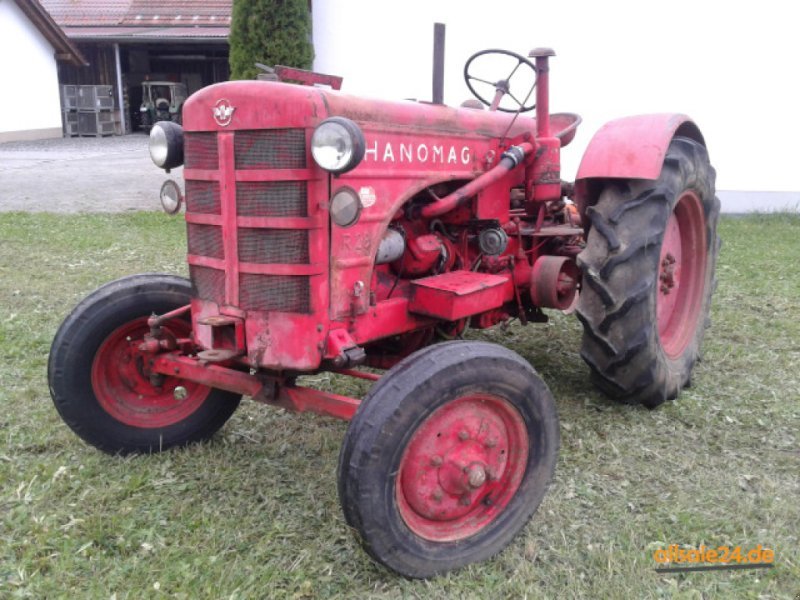

Hanomag R28 RC
Built: 1951–1953 · Series: RC
More machines from model year 1951
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hanomag RC – small-tractor range from Hanover: types R 22 to R 435 RC, three- and four-cylinder diesels of 2,099 to 2,799 cm³, 16 to 26 kW, unladen weights of 1,520 to 1,945 kg
Hanomag, the Hannoversche Maschinenbau AG headquartered in Hanover, built a range of small tractors under the R designation in the 1950s for smaller and medium-sized farms. The types R 22 RC, R27 RC, R28 RC and R435 RC recorded in the register carry the company's typical number-letter combination, in which the number indicates the approximate power class.
Read on 3 more paragraphs
The register lists 4 versions with 16 to 26 kW from three- and four-cylinder diesel engines of 2,099 to 2,799 cm³ displacement, unladen weights from 1,520 to 1,945 kg and an overall height of 1,760 mm throughout; lengths range from 2,990 to 3,310 mm, widths from 1,580 to 2,040 mm, rated engine speeds from 1,500 to 1,900 rpm.
Hanomag's R-range small tractors competed directly with comparable ranges from Fendt, Deutz and Normag in the 1950s and were aimed at operations seeking a manoeuvrable, sturdy tractor for field and yard work without the purchase cost of a large field tractor.
On a used R-range Hanomag, rust on the frame and sheet-metal parts, the condition of the diesel engine's injection pump and injectors, the tightness of the hydraulics and lift linkage, and the condition of the axles and steering after decades of use all count; because production ended long ago, parts are mostly only available through specialist secondhand-parts dealers and salvaged vehicles.
Sources: SpecCodex register, model data: Hanomag RC
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 28 hp (21 kW)correct |
| Rated speed | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,799 cm³correct |
| Bore | 90 mmcorrect |
| Stroke | 110 mmcorrect |
| Injection pressure | 120 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,310 mmcorrect |
|---|---|
| Width | 2,040 mmcorrect |
| Height | 1,760 mmcorrect |
| Wheelbase | 2,210 mmcorrect |
| Ground clearance | 460 mmcorrect |
| Unladen weight | 1,860 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5/1, 10/2correct |
| Forward gears | 5correct |
| Front tyres | 5-16correct |
| Rear tyres | 9-40, 9-42correct |
| Top speed | 18.3 km/hcorrect |
Working data
| Fuel tank capacity | 48 lcorrect |
|---|
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 120correct |
Where this model stands
Power-to-weight ratio: 11.3 kW/t (21 kW / 1.9 t)
Power class: Compact (< 40 hp)
Stronger than 16% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hanomag R28 RC have?
The Hanomag R28 RC delivers 28 hp.
How much does the Hanomag R28 RC weigh?
The unladen weight is 1,860 kg.
What engine does the Hanomag R28 RC have?
4 cylinders, 2,799 cm³ displacement, Diesel.
How fast does the Hanomag R28 RC go?
Top speed is 18.3 km/h.
What are the dimensions of the Hanomag R28 RC?
3,310 mm × 2,040 mm × 1,760 mm.
When was the Hanomag R28 RC built?
Production years: 1951–1953.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
