Hanomag Perfekt 300
Built: 10/1962–9/1964 · Series: Perfekt ( 1.Generation )
More machines from model year 1962
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

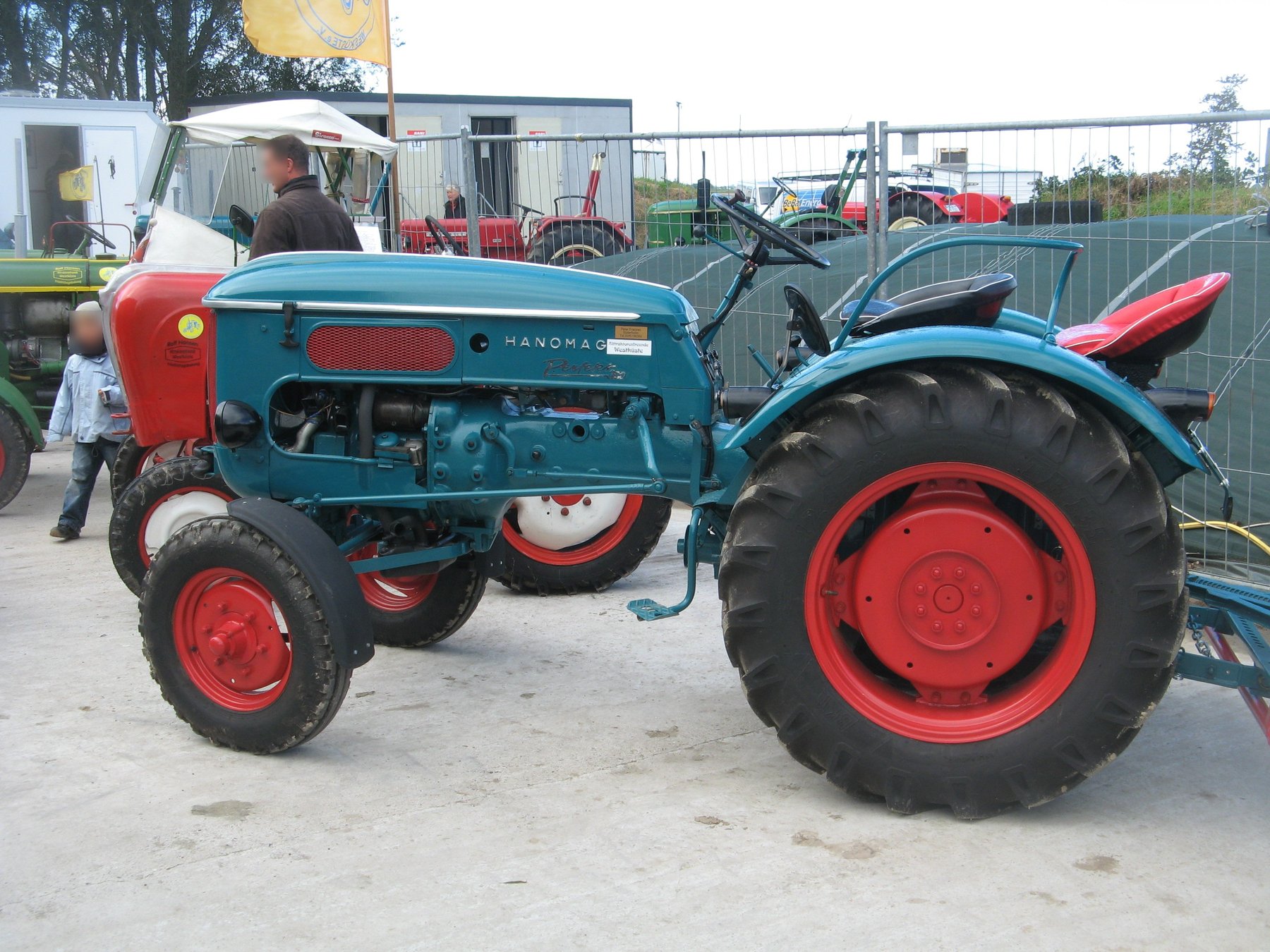

Hanomag Perfekt 300: water-cooled two-cylinder diesel tractor from the first Perfekt generation, 1,399 cc, 25 hp/18.3 kW and 1,790 kg weight, built 1962 to 1964
In the early 1960s, the Perfekt series was Hanomag's smaller tractor line from Hanover, aimed at small farms that wanted an agile, affordably priced diesel tractor for everyday work without having to turn to the manufacturer's larger, multi-cylinder series.
Read on 3 more paragraphs
The Perfekt 300 is powered by a water-cooled two-cylinder diesel engine of 1,399 cc, producing 25 hp, or 18.3 kW, at 2,400 rpm. At a weight of 1,790 kg, a length of 3,300 mm, a height of 1,510 mm and a width of 1,560 mm, with a wheelbase of 2,035 mm, the machine is a compact tractor whose top speed of 19.3 km/h was enough for short road journeys too.
A water-cooled two-cylinder engine with a comparatively high rated speed of 2,400 rpm ran more smoothly than a single-cylinder unit of the same output and allowed a more compact, lighter engine design. A tractor of this size was built for grassland and field work on smaller plots, driving mounted implements through the pto shaft and light yard haulage, not for heavy draft work.
When buying a Perfekt 300, the condition of the radiator, water pump and coolant hoses matters, along with corrosion on the bonnet, wings and frame. Also worth checking are the clutch and gearbox for wear noises and the brakes; spare parts for such a small and old Hanomag model are now only available from specialist suppliers and salvage stock.
Sources: SpecCodex-Register: Kennwerte des Modells Hanomag Perfekt 300
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 25 hp (18.3 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,399 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,300 mmcorrect |
|---|---|
| Width | 1,560 mmcorrect |
| Height | 1,510 mmcorrect |
| Wheelbase | 2,035 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 1,790 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6/2-Getriebecorrect |
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Front tyres | 5.00-16, 5.50-16, 6.00-16correct |
| Rear tyres | 9-32, 9-36, 10-28, 11-28correct |
| Top speed | 19.3 km/hcorrect |
Working data
| Fuel tank capacity | 45 lcorrect |
|---|
Origin and approval
| Plant | Germanycorrect |
|---|---|
| Construction | frameless unit constructioncorrect |
| Units built | 3,565correct |
Other data
| Linkage category | Cat Icorrect |
|---|
Where this model stands
Power-to-weight ratio: 10.2 kW/t (18 kW / 1.8 t)
Power class: Compact (< 40 hp)
Stronger than 12% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hanomag Perfekt 300 have?
The Hanomag Perfekt 300 delivers 25 hp.
How much does the Hanomag Perfekt 300 weigh?
The unladen weight is 1,790 kg.
What engine does the Hanomag Perfekt 300 have?
2 cylinders, 1,399 cm³ displacement, Diesel.
How fast does the Hanomag Perfekt 300 go?
Top speed is 19.3 km/h.
What are the dimensions of the Hanomag Perfekt 300?
3,300 mm × 1,560 mm × 1,510 mm.
When was the Hanomag Perfekt 300 built?
Production years: 10/1962–9/1964.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
