Hanomag Granit 500/1 (S)
Built: 1966–1968 · Series: Lepoix
More machines from model year 1966
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

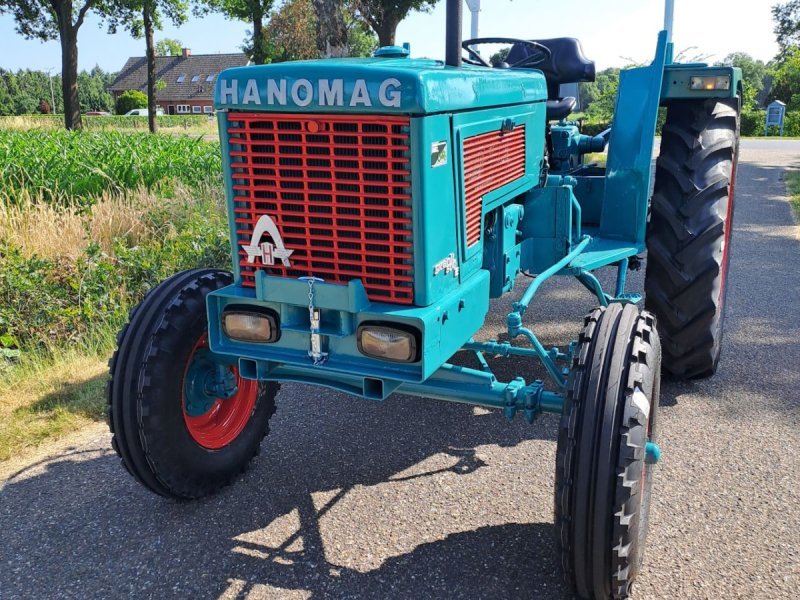

Hanomag Granit 500/1 (S): water-cooled three-cylinder diesel tractor with Lepoix-styled bodywork, 2,099 cc, 40 hp, or 29 kW, built 1966 to 1968
Hanomag, the Hannoversche Maschinenbau AG, was a German vehicle and machinery manufacturer based in Hanover. The bodywork styling of the Granit series of that period, which includes the 500/1 (S), was designed by the French industrial designer Louis Lepoix. The Granit 500/1 (S) was built from 1966 to 1968.
Read on 3 more paragraphs
The Granit 500/1 (S) is powered by a water-cooled three-cylinder diesel engine of 2,099 cc, producing 40 hp, or 29 kW, at 2,400 rpm. At a weight of 2,100 kg, a length of 3,420 mm, a height of 1,540 mm and a width of 1,580 mm, with a wheelbase of 2,035 mm, the machine reaches a top speed of 20 km/h.
A three-cylinder diesel engine of just over two litres and 29 kW belonged, in the mid-1960s, to the upper mid-range of field tractors, suited to tillage with larger implements, trailer work and varied power-take-off tasks. Lepoix's rounded bodywork visually set the Granit apart from the manufacturer's more angular earlier series.
When buying a Granit 500/1 (S) secondhand, the condition of the injection pump and injectors of the three-cylinder diesel, and the cooling system of the water-cooled engine, matter most. Also worth checking are wear in the clutch and gearbox, the brakes, and the condition of the bodywork panels; spare parts for this common Hanomag series are usually still readily available on the open market.
Sources: SpecCodex-Register: Kennwerte des Modells Hanomag Granit 500/1 (S)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 40 hp (29 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,099 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,420 mmcorrect |
|---|---|
| Width | 1,580 mmcorrect |
| Height | 1,540 mmcorrect |
| Wheelbase | 2,035 mmcorrect |
| Ground clearance | 400 mmcorrect |
| Unladen weight | 2,100 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 9/3 Gruppenmanual gearbox gearboxcorrect |
| Front tyres | 5, 5-16, 6-16, 5-16, 7, 5-16correct |
| Rear tyres | 11-28, 11-32, 13-28correct |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 67 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 745correct |
Where this model stands
Power-to-weight ratio: 13.8 kW/t (29 kW / 2.1 t)
Power class: Compact (< 40 hp)
Stronger than 24% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hanomag Granit 500/1 (S) have?
The Hanomag Granit 500/1 (S) delivers 40 hp.
How much does the Hanomag Granit 500/1 (S) weigh?
The unladen weight is 2,100 kg.
What engine does the Hanomag Granit 500/1 (S) have?
3 cylinders, 2,099 cm³ displacement, Diesel.
How fast does the Hanomag Granit 500/1 (S) go?
Top speed is 20 km/h.
What are the dimensions of the Hanomag Granit 500/1 (S)?
3,420 mm × 1,580 mm × 1,540 mm.
When was the Hanomag Granit 500/1 (S) built?
Production years: 1966–1968.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
