Gutbrod 3000/3100
Built: 1976–1978 · Series: Geräteträger
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

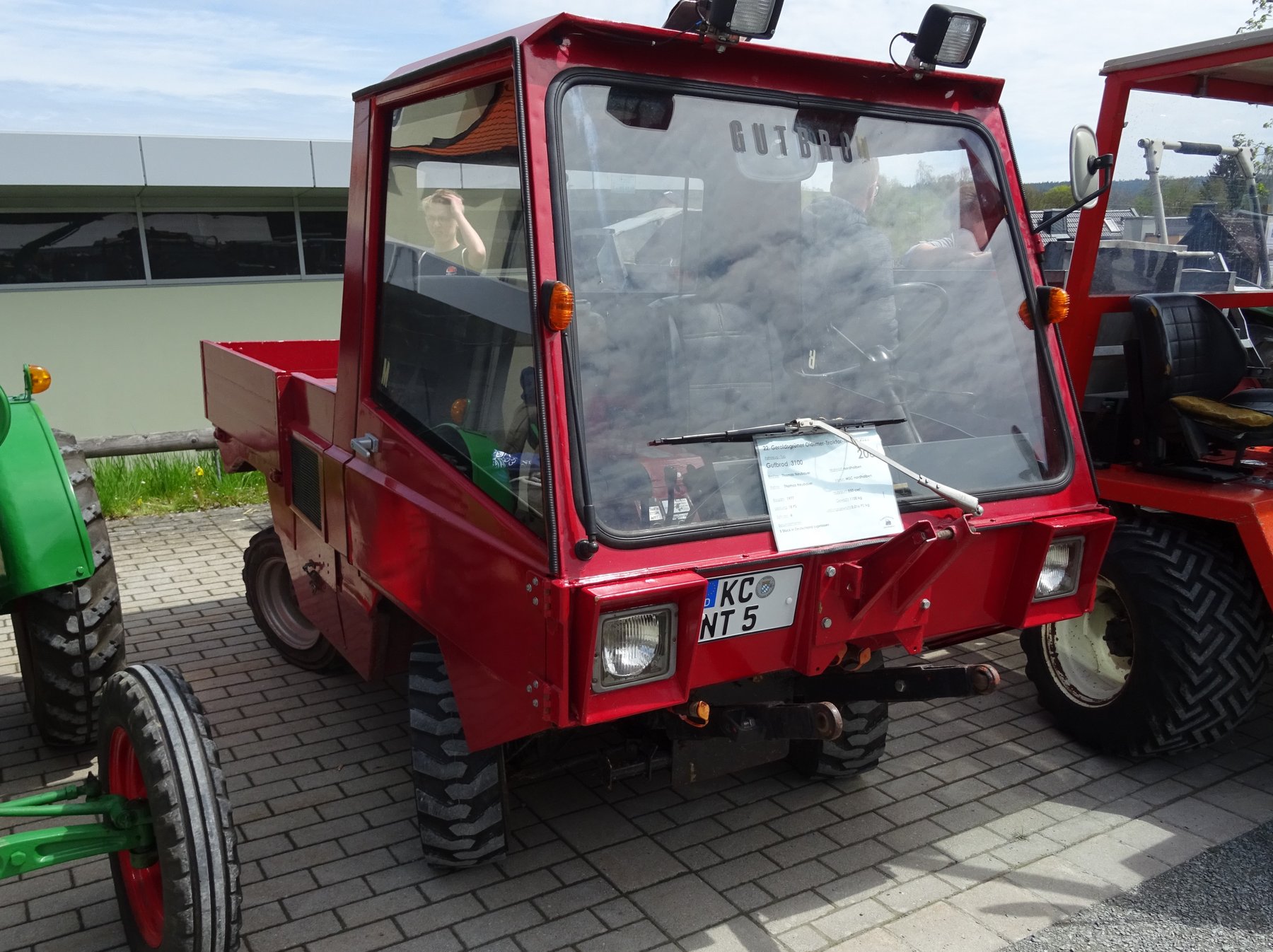

Gutbrod 3000/3100: water-cooled four-cylinder petrol implement carrier, 839 cc, 34 hp, with rear- or four-wheel drive, built 1976 to 1978
Gutbrod was a German manufacturer based in Plüderhausen in Württemberg that, alongside small vehicles, also built implement carriers and garden equipment. The 3000/3100 belongs to the implement-carrier series and was built from 1976 to 1978.
Read on 3 more paragraphs
The 3000/3100 is powered by a water-cooled four-cylinder petrol engine of 839 cc, producing 34 hp at 3,700 rpm. At a weight of 1,100 kg, a length of 2,990 mm, a height of 1,890 mm and a width of 1,530 mm, the machine is a light implement carrier with a frame chassis and a four-speed gearbox; top speed is 40 km/h. Drive was offered either as rear-wheel drive or as four-wheel drive.
As an implement carrier, the 3000/3100 mounts attachments between the axles rather than at the front or rear as on an ordinary tractor, giving a better view of the working tool and a more even weight distribution. The high-revving four-cylinder petrol engine suits the machine to mowing, sweeping and transport work in municipal and agricultural use, not to heavy tillage. Its design top speed of 40 km/h places the 3000/3100, in Germany, at the boundary between the L and T licence classes.
When buying one secondhand, the condition of the mounting interface between the axles, together with its hydraulic lines, matters most, since it carries most of the mechanical load. On the four-wheel-drive version, the front axle differential and joints should also be checked. Also worth checking are the radiator and water pump of the four-cylinder engine, the carburettor and ignition system of the petrol engine, and the clutch and gearbox; spare parts for this small series are scarce and mostly available only through specialist suppliers.
Sources: SpecCodex-Register: Kennwerte des Modells Gutbrod 3000/3100
Technical data
Engine
| Fuel | petrolcorrect |
|---|---|
| Power | 34 hpcorrect |
| Rated speed | 3,700 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 839 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,990 mmcorrect |
|---|---|
| Width | 1,530 mmcorrect |
| Height | 1,890 mmcorrect |
| Unladen weight | 1,100 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 4correct |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 22.7 kW/t (25 kW / 1.1 t)
Power class: Compact (< 40 hp)
Stronger than 20% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Gutbrod 3000/3100 have?
The Gutbrod 3000/3100 delivers 34 hp.
How much does the Gutbrod 3000/3100 weigh?
The unladen weight is 1,100 kg.
What engine does the Gutbrod 3000/3100 have?
4 cylinders, 839 cm³ displacement, Benzin.
How fast does the Gutbrod 3000/3100 go?
Top speed is 40 km/h.
What are the dimensions of the Gutbrod 3000/3100?
2,990 mm × 1,530 mm × 1,890 mm.
When was the Gutbrod 3000/3100 built?
Production years: 1976–1978.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
