Güldner G 60
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

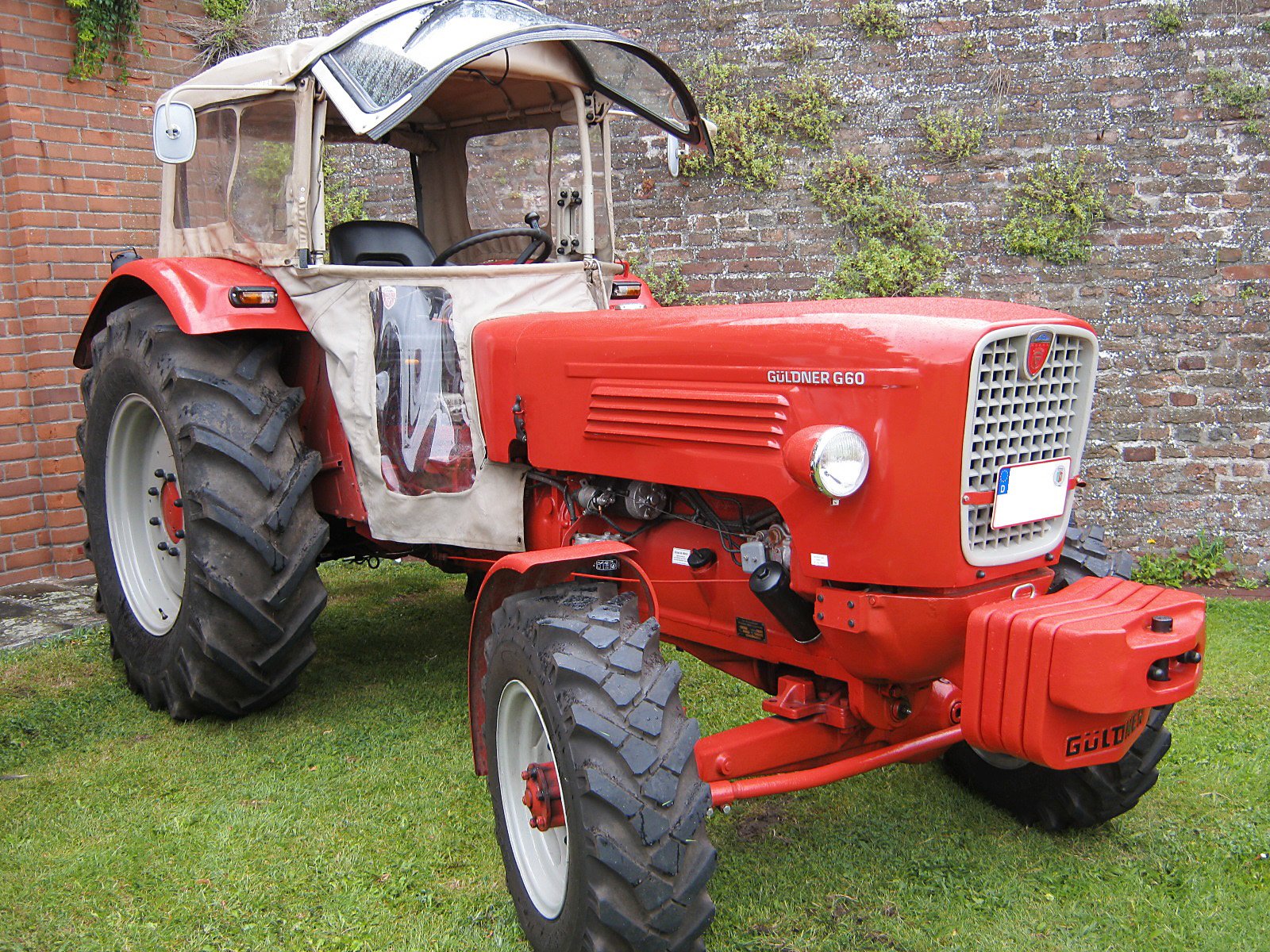

The G 60 is a tractor from the manufacturer Güldner. It belongs to the tractor group and is powered by an engine delivering 60 hp (44.2 kW) at a rated speed of 2 000 rpm. The engine has six cylinders and a displacement of 4 712 cm³. The machine measures 3 955 mm in length, 1 865 mm in width and 1 625 mm in height, with a wheelbase of 2 315 mm. Its curb weight is 2 750 kg and the fuel tank holds 65 l.
The transmission is configured as (2V+1R)×4, providing eight forward and four reverse gears. A top speed of 26.22 km/h enables efficient travel between work sites. The eight forward gears allow fine adjustment of pulling power for various implements and field conditions. The relatively low curb weight results in moderate ground pressure, making the tractor suitable for use on delicate soils without excessive compaction.
The G 60 is suited for typical tasks in the middle power class, such as pulling plows, harrows or sprayers. Its combination of adequate power, moderate weight and a wide gear range makes it appropriate for cultivating medium‑sized agricultural areas.
Güldner – other models: the collective page of the Aschaffenburg tractors outside the named ranges, from the A series through AFN and ALD to the vineyard and orchard types Burgund, Spessart and Toledo, 12 to 44 kW
This page gathers the Güldner tractors the register could not assign to a named range – from the single- and two-cylinder diesel of the A series to the G types carrying the names of wine- and fruit-growing regions. Güldner, founded by Hugo Güldner in Aschaffenburg, built farm tractors with the marque's characteristic single- and multi-cylinder engines of its own manufacture and was taken over by Linde AG in 1963; tractor production in Aschaffenburg ended in 1969. The A series (A 2 D, A 2 L, A 2 W, A 3 KT, A 3 P, A 4 M) and the numerous short types from ABL to AZK formed the broad post-war programme, the G series (G 15 to G 60) the later generation; some types additionally carried the names of growing regions – Tessin, Burgund, Spessart, Toledo and Gotland – for the narrow-track versions.
Read on 3 more paragraphs
The register lists here 34 versions with 11.7 to 44.2 kW (20 to 60 hp) from two- to six-cylinders of 1,305 to 4,712 cm³, unladen weights from 1,115 to 2,750 kg, lengths from 2,635 to 3,955 mm, widths from 1,514 to 1,865 mm, heights from 1,385 to 1,625 mm and rated speeds from 1,800 to 2,300 rpm; all are diesel-powered.
Alongside Fendt, Eicher and Kramer, Güldner was one of the Bavarian tractor makers of the post-war period and was known for its rugged, water- and air-cooled diesels, which also ran as stationary engines. The narrow vineyard and orchard tractors filled a niche in southern Germany and the wine regions along the Main that the large makers barely served.
On used Güldner diesels, engine and cooling condition count – the air-cooled types are prone to cracked cylinder heads if overheated – condition of the injection pump and injectors, transmission and steering, and rust on bodywork and mudguards; spare parts, since production ended in 1969, are only available through specialists and the used-parts market.
Sources: SpecCodex register, model data: Güldner (weitere Modelle)
Technical data
Engine
| Power | 60 hp (44.2 kW)correct |
|---|---|
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 4,712 cm³correct |
Dimensions and weights
| Length | 3,955 mmcorrect |
|---|---|
| Width | 1,865 mmcorrect |
| Height | 1,625 mmcorrect |
| Wheelbase | 2,315 mmcorrect |
| Unladen weight | 2,750 kgcorrect |
Drivetrain and chassis
| Gearbox | (2V+1R)x4correct |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 4correct |
| Top speed | 26.22 km/hcorrect |
Working data
| Fuel tank capacity | 65 lcorrect |
|---|
Where this model stands
Power-to-weight ratio: 16.1 kW/t (44 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 42% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Güldner G 60 have?
The Güldner G 60 delivers 60 hp.
How much does the Güldner G 60 weigh?
The unladen weight is 2,750 kg.
What engine does the Güldner G 60 have?
6 cylinders, 4,712 cm³ displacement.
How fast does the Güldner G 60 go?
Top speed is 26.2 km/h.
What are the dimensions of the Güldner G 60?
3,955 mm × 1,865 mm × 1,625 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
