Güldner G 35
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

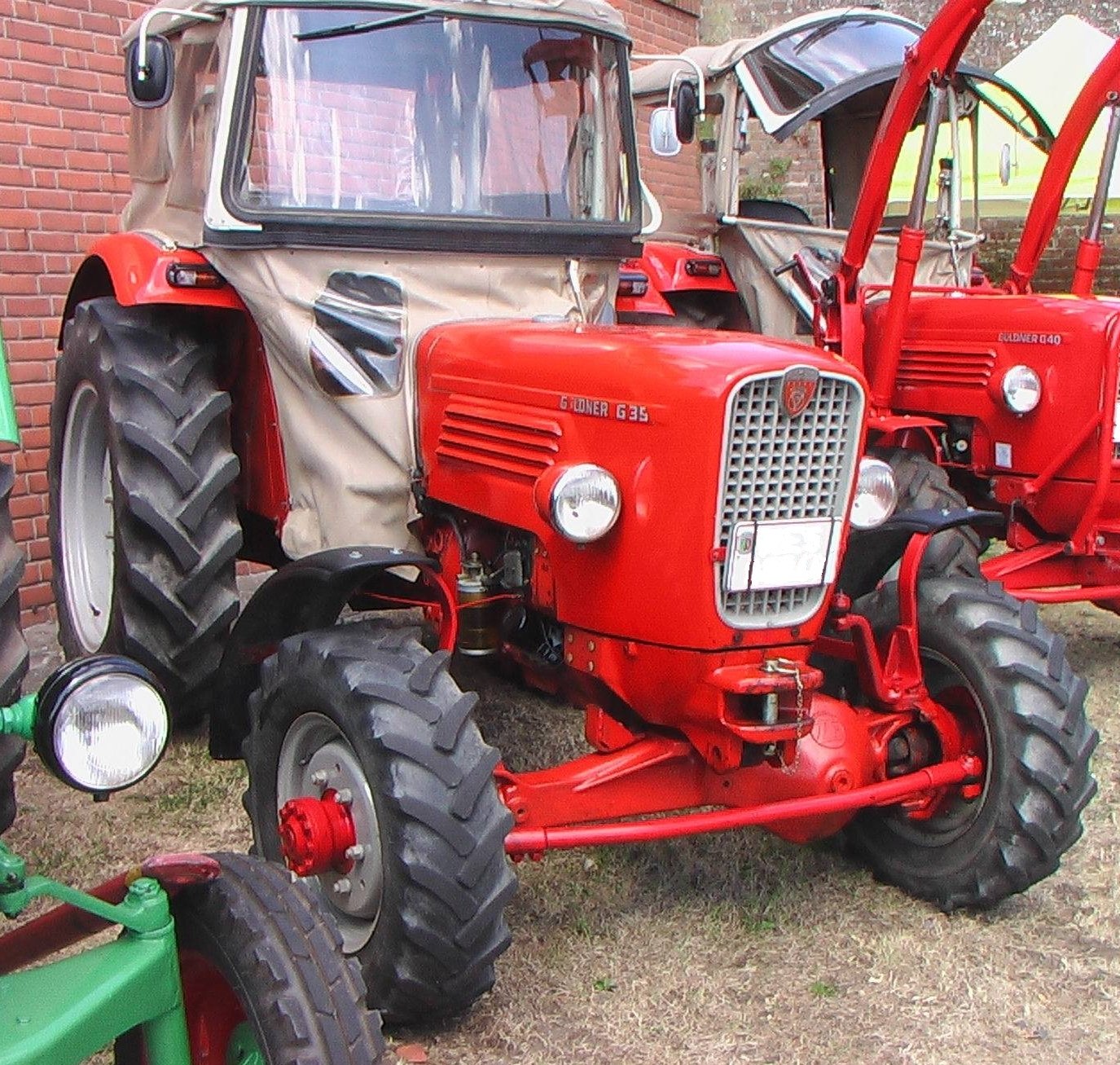

The G 35 is a tractor from the manufacturer Güldner. It belongs to the tractor family and is offered with a power output of 35 hp (25.6 kW) at a rated speed of 2 200 rpm. The engine has three cylinders and a displacement of 2 356 cm³. The machine measures 3 250 mm in length, 1 662 mm in width and 1 510 mm in height, with a wheelbase of 1 954 mm. Its curb weight is 1 895 kg and the fuel tank holds 48 l. The transmission is (2V+1R)×4, providing eight forward and four reverse gears.
With 35 hp the G 35 can handle light to medium field tasks such as pulling small implements or transporting loads of several tonnes, while the 1 895 kg weight results in a moderate ground pressure suitable for most soils. The eight forward gears allow fine speed adjustment to varying working conditions, and the four reverse gears aid maneuvering in tight areas. The 48‑liter tank gives sufficient range for field operation.
Since no direct comparison within the series is provided, the G 35 is regarded as a typical example of smaller tractors with moderate power. Such machines are commonly used for basic operations like mowing, light soil work, short‑distance transport of harvests and operating small implements. Its compact size and moderate weight make it suitable for farms that require flexibility and easy handling with limited power needs.
Güldner – other models: the collective page of the Aschaffenburg tractors outside the named ranges, from the A series through AFN and ALD to the vineyard and orchard types Burgund, Spessart and Toledo, 12 to 44 kW
This page gathers the Güldner tractors the register could not assign to a named range – from the single- and two-cylinder diesel of the A series to the G types carrying the names of wine- and fruit-growing regions. Güldner, founded by Hugo Güldner in Aschaffenburg, built farm tractors with the marque's characteristic single- and multi-cylinder engines of its own manufacture and was taken over by Linde AG in 1963; tractor production in Aschaffenburg ended in 1969. The A series (A 2 D, A 2 L, A 2 W, A 3 KT, A 3 P, A 4 M) and the numerous short types from ABL to AZK formed the broad post-war programme, the G series (G 15 to G 60) the later generation; some types additionally carried the names of growing regions – Tessin, Burgund, Spessart, Toledo and Gotland – for the narrow-track versions.
Read on 3 more paragraphs
The register lists here 34 versions with 11.7 to 44.2 kW (20 to 60 hp) from two- to six-cylinders of 1,305 to 4,712 cm³, unladen weights from 1,115 to 2,750 kg, lengths from 2,635 to 3,955 mm, widths from 1,514 to 1,865 mm, heights from 1,385 to 1,625 mm and rated speeds from 1,800 to 2,300 rpm; all are diesel-powered.
Alongside Fendt, Eicher and Kramer, Güldner was one of the Bavarian tractor makers of the post-war period and was known for its rugged, water- and air-cooled diesels, which also ran as stationary engines. The narrow vineyard and orchard tractors filled a niche in southern Germany and the wine regions along the Main that the large makers barely served.
On used Güldner diesels, engine and cooling condition count – the air-cooled types are prone to cracked cylinder heads if overheated – condition of the injection pump and injectors, transmission and steering, and rust on bodywork and mudguards; spare parts, since production ended in 1969, are only available through specialists and the used-parts market.
Sources: SpecCodex register, model data: Güldner (weitere Modelle)
Technical data
Engine
| Power | 35 hp (25.6 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,356 cm³correct |
Dimensions and weights
| Length | 3,250 mmcorrect |
|---|---|
| Width | 1,662 mmcorrect |
| Height | 1,510 mmcorrect |
| Wheelbase | 1,954 mmcorrect |
| Unladen weight | 1,895 kgcorrect |
Drivetrain and chassis
| Gearbox | (2V+1R)x4correct |
|---|---|
| Forward gears | 8correct |
| Reverse gears | 4correct |
Working data
| Fuel tank capacity | 48 lcorrect |
|---|
Where this model stands
Power-to-weight ratio: 13.5 kW/t (26 kW / 1.9 t)
Power class: Compact (< 40 hp)
Stronger than 20% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Güldner G 35 have?
The Güldner G 35 delivers 35 hp.
How much does the Güldner G 35 weigh?
The unladen weight is 1,895 kg.
What engine does the Güldner G 35 have?
3 cylinders, 2,356 cm³ displacement.
What are the dimensions of the Güldner G 35?
3,250 mm × 1,662 mm × 1,510 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
