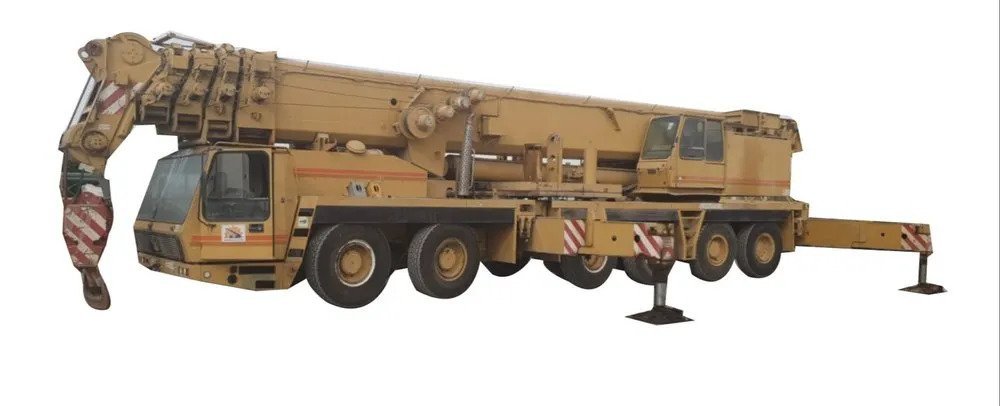

Grove GMK 6200
Built: 1997 · Series: GMK
More machines from model year 1997
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Grove GMK – collective page of the all-terrain cranes: American maker, part of Manitowoc since 2002, lifting capacity in tonnes coded in the type name, 205 to 420 kW
This page gathers the Grove GMK range, all-terrain cranes from the American maker Grove, founded in 1947 in Shady Grove, Pennsylvania, and part of the Manitowoc Crane Group since 2002. GMK denotes the all-terrain crane range; the following number roughly gives the maximum lifting capacity in tonnes – GMK4080 about 80 tonnes, GMK5220 about 220 tonnes, GMK6400 about 400 tonnes – the suffix after the hyphen the axle-count sub-variant or development step, and L an extended-boom version.
Read on 3 more paragraphs
The register lists here 48 versions with outputs from 205 to 420 kW, displacements from 6,370 to 21,900 cm³ from six- to eight-cylinders, operating weights from 23,750 to 77,000 kg against gross weights of 24,000 to 72,000 kg and widths from 2,500 to 3,000 mm; torque is recorded for a handful of entries at 580 to 2,600 Nm at 1,800 rpm.
Alongside Liebherr and Tadano, Grove is one of the leading suppliers of all-terrain cranes, and with the GMK range covers the spectrum from the compact two-axle crane to the large crane for industrial and wind-turbine assembly work; the cranes drive to the job site on public roads and then work off-road there without a separate low-loader.
On used examples, engine and crane-gear operating hours, the condition of the telescopic sections, cable drums and outriggers, the tightness of the hydraulic cylinders, and rust on the frame and boom segments all count; parts and service run through the Manitowoc-Grove network.
Sources: SpecCodex register, model data: Grove GMK, Manitowoc (Grove, Hersteller)
Technical data
Engine
| Power | 406 kWcorrect |
|---|---|
| Displacement | 21,900 cm³correct |
Dimensions and weights
| Length | 17,000 mmcorrect |
|---|---|
| Width | 3,000 mmcorrect |
| Unladen weight | 77,000 kgcorrect |
Where this model stands
Power-to-weight ratio: 5.3 kW/t (406 kW / 77 t)
Stronger than 93% of the mobile & rough terrain cranes in the register — out of 723 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Grove GMK 6200 have?
The Grove GMK 6200 delivers 406 kW.
How much does the Grove GMK 6200 weigh?
The unladen weight is 77,000 kg.
What engine does the Grove GMK 6200 have?
21,900 cm³ displacement.
What are the dimensions of the Grove GMK 6200?
17,000 mm × 3,000 mm.
When was the Grove GMK 6200 built?
Production years: 1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 6 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
