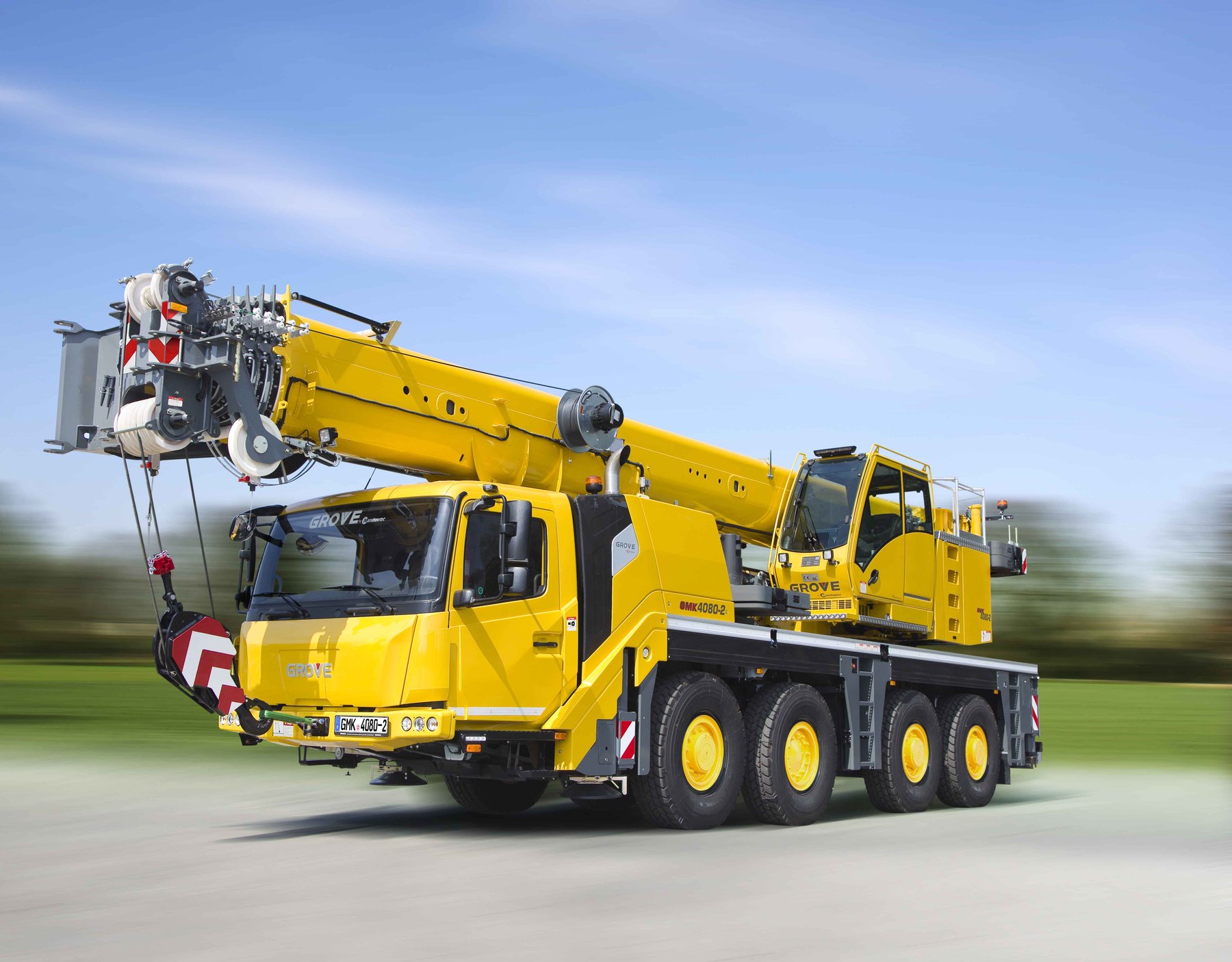

Grove GMK 4080-2
Built: 2018 · Series: GMK
More machines from model year 2018
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Grove GMK – collective page of the all-terrain cranes: American maker, part of Manitowoc since 2002, lifting capacity in tonnes coded in the type name, 205 to 420 kW
This page gathers the Grove GMK range, all-terrain cranes from the American maker Grove, founded in 1947 in Shady Grove, Pennsylvania, and part of the Manitowoc Crane Group since 2002. GMK denotes the all-terrain crane range; the following number roughly gives the maximum lifting capacity in tonnes – GMK4080 about 80 tonnes, GMK5220 about 220 tonnes, GMK6400 about 400 tonnes – the suffix after the hyphen the axle-count sub-variant or development step, and L an extended-boom version.
Read on 3 more paragraphs
The register lists here 48 versions with outputs from 205 to 420 kW, displacements from 6,370 to 21,900 cm³ from six- to eight-cylinders, operating weights from 23,750 to 77,000 kg against gross weights of 24,000 to 72,000 kg and widths from 2,500 to 3,000 mm; torque is recorded for a handful of entries at 580 to 2,600 Nm at 1,800 rpm.
Alongside Liebherr and Tadano, Grove is one of the leading suppliers of all-terrain cranes, and with the GMK range covers the spectrum from the compact two-axle crane to the large crane for industrial and wind-turbine assembly work; the cranes drive to the job site on public roads and then work off-road there without a separate low-loader.
On used examples, engine and crane-gear operating hours, the condition of the telescopic sections, cable drums and outriggers, the tightness of the hydraulic cylinders, and rust on the frame and boom segments all count; parts and service run through the Manitowoc-Grove network.
Sources: SpecCodex register, model data: Grove GMK, Manitowoc (Grove, Hersteller)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 10,677 cm³correct |
Dimensions and weights
| Length | 12,820 mmcorrect |
|---|---|
| Width | 2,750 mmcorrect |
| Wheelbase | 5,750 mmcorrect |
| Unladen weight | 47,750 kgcorrect |
| Gross vehicle weight | 48,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 85 km/hcorrect |
Frequently asked questions
How much does the Grove GMK 4080-2 weigh?
The unladen weight is 47,750 kg.
What is the gross vehicle weight of the Grove GMK 4080-2?
48,000 kg.
What engine does the Grove GMK 4080-2 have?
6 cylinders, 10,677 cm³ displacement.
How fast does the Grove GMK 4080-2 go?
Top speed is 85 km/h.
What are the dimensions of the Grove GMK 4080-2?
12,820 mm × 2,750 mm.
When was the Grove GMK 4080-2 built?
Production years: 2018.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
