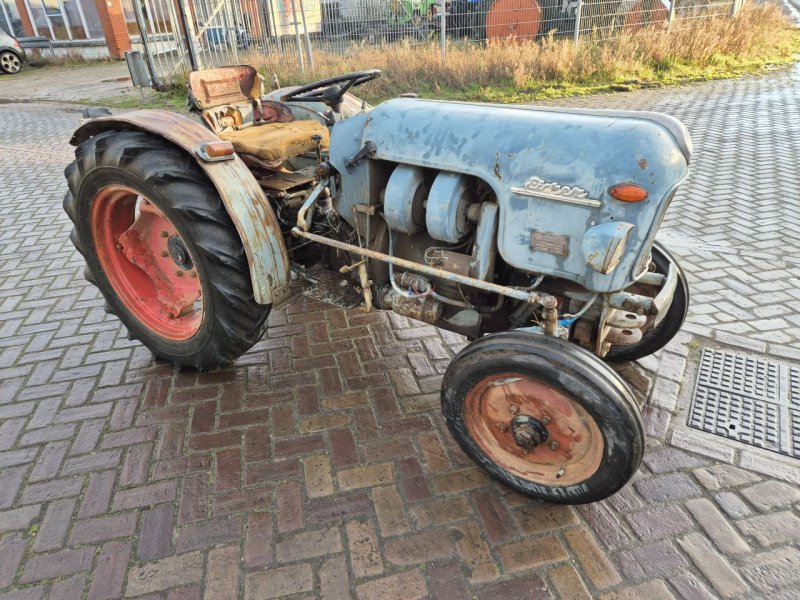

Gebr Eicher ES 200

Built: 1960–1961 · Series: Puma

More machines from model year 1960

Source: https://www.technikboerse.com/marke/eicher-312

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the ES 200, Gebr Eicher offers a model from the Puma series. Production: 1960–1961. The engine delivers 28 hp (20.5 kW), has 2 cylinders, with a displacement of 1,963 cm³. Torque is 80 Nm. Rated speed is 2,000 rpm. The machine is 2,370 mm long, 890 mm wide and 1,110 mm high. The unladen weight is 985 kg. The wheelbase measures 1,560 mm. Ground clearance is 270 mm. Top speed is 20 km/h. Transmission: 6/1. The engine is air-cooled. Tyres: front 4.00-15, rear 8-24. The fuel is diesel. The bore measures 100 mm. The stroke is 125 mm. Maximum torque is reached at 1,650 rpm. Construction: frameless unit construction. Injection pressure is 140 bar. Around 989 units were built. Rated output across the Gebr Eicher range ranges from 16 to 30 hp; the ES 200 sits at the top of that range with 28 hp. Its immediate neighbours are the G 22 Kombi below it with 22 hp and the 3708 above it with 30 hp. Rated output across the Gebr Eicher range ranges from 11.8 to 22.1 kW; here the ES 200 sits in the upper part of that range with 20.5 kW. 5 Gebr Eicher models across 3 series are on record.

Eicher ES 200: air-cooled two-cylinder diesel tractor from the Puma series, 1,963 cc, 20.5 kW and 80 Nm of torque, built 1960 to 1961

Eicher was a Bavarian tractor manufacturer known for using its own air-cooled diesel engines, which set the brand apart from water-cooled competitor products. The ES 200 belonged to the Puma series, one of the manufacturer's smaller model lines from the late 1950s and early 1960s.

Read on 3 more paragraphs

The ES 200 is powered by an air-cooled two-cylinder diesel engine of 1,963 cc, producing 28 hp, or 20.5 kW, and 80 Nm of torque at 2,000 rpm. At a weight of 985 kg, a length of 2,370 mm, a height of 1,110 mm and a width of 890 mm, with a wheelbase of 1,560 mm, it is a light, compact tractor with a top speed of 20 km/h.

A two-cylinder diesel engine of around 20 kW and a comparatively low weight was, in the early 1960s, a typical layout for small and medium farms, suited to tillage with lighter implements and running a power take-off at the standard speeds of 540 or 1,000 rpm. The low weight aided manoeuvrability on smaller plots.

When buying such an old Eicher ES 200 secondhand, the condition of the cooling fins on the cylinder block and of the cooling fan matters most, since dirt or damage there leads to overheating. Also worth checking are the clutch and gearbox for wear, the diesel engine's injection pump, and the frame and axles for rust; spare parts for this older Eicher series are now only available through specialist suppliers.

Sources: SpecCodex-Register: Kennwerte des Modells Eicher ES 200

Technical data

Engine

Fueldieselcorrect
Power28 hp (20.5 kW)correct
Rated speed2,000 rpmcorrect
Torque80 Nmcorrect
Speed at max. torque1,650 rpmcorrect
Cylinders2correct
Displacement1,963 cm³correct
Bore100 mmcorrect
Stroke125 mmcorrect
Injection pressure140 barcorrect
Coolingair-cooledcorrect

Dimensions and weights

Length2,370 mmcorrect
Width890 mmcorrect
Height1,110 mmcorrect
Wheelbase1,560 mmcorrect
Ground clearance270 mmcorrect
Unladen weight985 kgcorrect

Drivetrain and chassis

Driverear-wheel drivecorrect
Gearbox6/1correct
Front tyres4.00-15correct
Rear tyres8-24correct
Top speed20 km/hcorrect

Origin and approval

Constructionframeless unit constructioncorrect
Units built989correct

Where this model stands

Power-to-weight ratio: 20.8 kW/t (20 kW / 1 t)

Power class: Compact (< 40 hp)

Stronger than 15% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Gebr Eicher ES 200 have?

The Gebr Eicher ES 200 delivers 28 hp.

How much does the Gebr Eicher ES 200 weigh?

The unladen weight is 985 kg.

What engine does the Gebr Eicher ES 200 have?

2 cylinders, 1,963 cm³ displacement, Diesel.

How fast does the Gebr Eicher ES 200 go?

Top speed is 20 km/h.

What are the dimensions of the Gebr Eicher ES 200?

2,370 mm × 890 mm × 1,110 mm.

When was the Gebr Eicher ES 200 built?

Production years: 1960–1961.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
