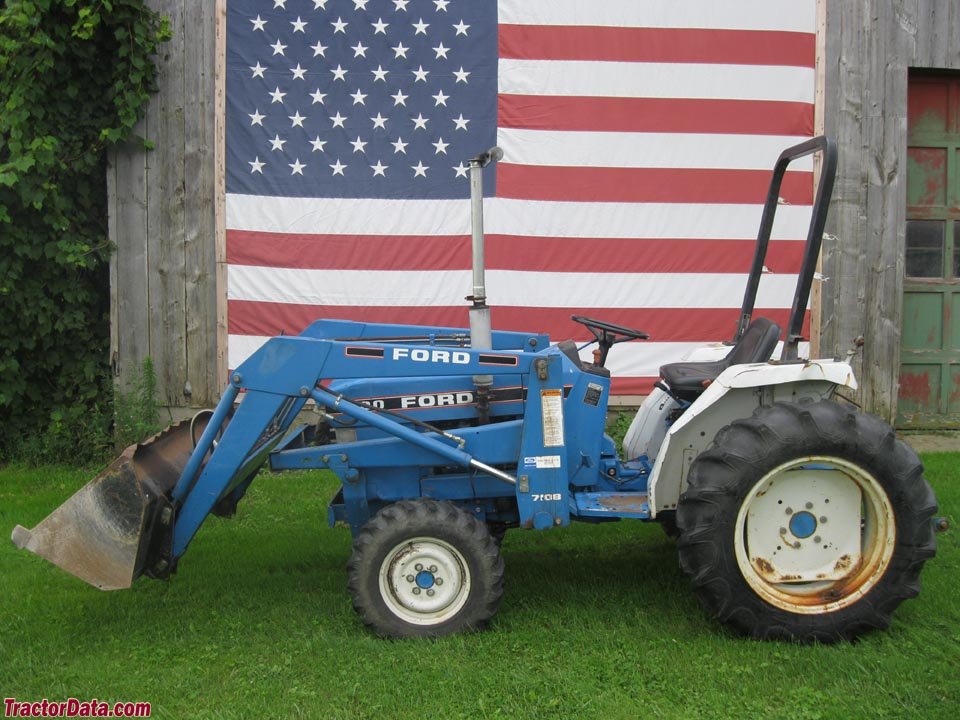

Ford/shibaura 1620 (A)
Built: 1992–1997 · Series: 20 er-Baureihe
More machines from model year 1992
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford/Shibaura 20 series (from 1987) – the second compact-tractor generation from Matsumoto: 1120 to 2120, the first digits as size class, 20 as series, A for four-wheel drive
The 20 series replaced from 1987 the 100 series with which Ford had sourced compact tractors from Shibaura of Matsumoto in Japan since 1973 – the same partnership, one generation on, with new bonnet, synchromesh gearboxes and four-cylinders in the larger models. The type logic: the first digits order the size in ascending order – 1120 the smallest model, 1520 and 1720 the mid-range, 2120 the largest – 20 marks the series, A four-wheel drive, which became the rule in this generation. The engines are Shibaura diesels with three cylinders in the small and four in the big models, 0.9 to 2.3 litres at 2,500 to 2,600 rpm; the register span up to 29.4 kW and 1,620 kg shows that the 2120 already reached the class of full-size tractors.
Read on 3 more paragraphs
The register lists 8 versions with 10.8 to 29.4 kW from three- and four-cylinders of 879 to 2,269 cm³, torque from 53 to 121 Nm, unladen weights from 605 to 1,620 kg, lengths from 2,700 to 3,485 mm, widths from 1,030 to 1,631 mm and heights from 1,345 to 2,265 mm.
The 20s continued under Ford and from the 1990s under New Holland and were then replaced by the TC and Boomer ranges; in North America they are the typical tractors of hobby farms and golf courses of their time.
On used tractors, operating hours, engine condition, gearbox and four-wheel-drive clutch, the condition of mower PTO and loader hydraulics, tyres (turf or agricultural tread) and parts supply through New Holland count.
Sources: SpecCodex register, model data: Ford/Shibaura 20er-Baureihe, Shibaura (IHI Shibaura Machinery, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 26 hp (19.1 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,332 cm³correct |
| Bore | 84.07 mmcorrect |
| Stroke | 80.01 mmcorrect |
| Compression ratio | 23correct |
| Injection pressure | 150 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,850 mmcorrect |
|---|---|
| Width | 1,220 mmcorrect |
| Height | 2,140 mmcorrect |
| Wheelbase | 1,600 mmcorrect |
| Ground clearance | 290 mmcorrect |
| Unladen weight | 1,015 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | hydrostatischcorrect |
| Front tyres | 5.00-15 ASF (A: 6.00-14 AS)correct |
| Rear tyres | 9.5-24 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.8 kW/t (19 kW / 1 t)
Power class: Compact (< 40 hp)
Stronger than 14% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford/shibaura 1620 (A) have?
The Ford/shibaura 1620 (A) delivers 26 hp.
How much does the Ford/shibaura 1620 (A) weigh?
The unladen weight is 1,015 kg.
What engine does the Ford/shibaura 1620 (A) have?
3 cylinders, 1,332 cm³ displacement, Diesel.
How fast does the Ford/shibaura 1620 (A) go?
Top speed is 20 km/h.
What are the dimensions of the Ford/shibaura 1620 (A)?
2,850 mm × 1,220 mm × 2,140 mm.
When was the Ford/shibaura 1620 (A) built?
Production years: 1992–1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
