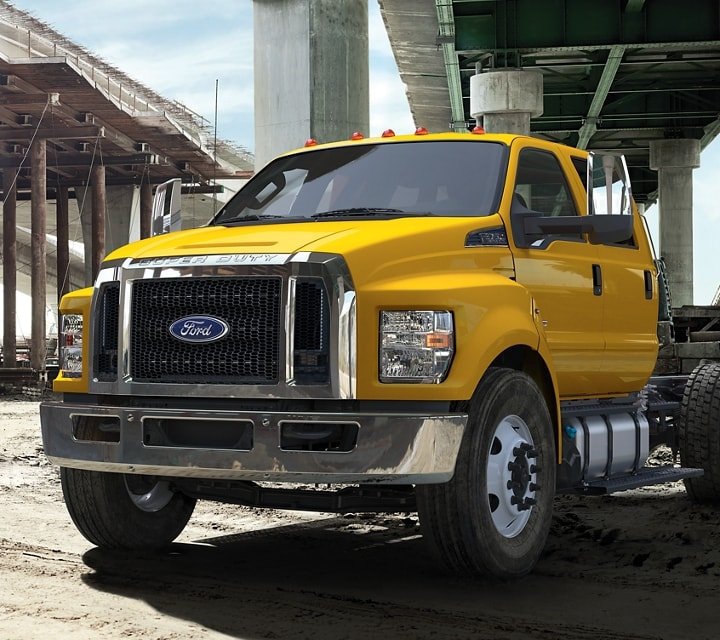

Ford F-750

Built: 2016 · Series: Trucks 3.5–12 t (Class N2)

More machines from model year 2016

Source: ford.ca

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Ford F-750 belongs to the Trucks 3.5–12 t (Class N2) series. Production: 2016. The engine has 8 cylinders, with a displacement of 6,653 cm³. The vehicle is 7,160 mm long and 2,490 mm wide. The unladen weight is 6,481 kg. The wheelbase measures 4,640 mm. Top speed is 90 km/h. The gross vehicle weight is 11,900 kg. The vehicle runs on 6 wheels. The Trucks 3.5–12 t (Class N2) series covers 324 models. Unladen weight within it ranges from 2,036 to 8,975 kg; the F-750 sits in the upper part of that range with 6,481 kg. Its immediate neighbours are the D0910L below it with 6,420 kg and the M8 GREYHOUND above it with 6,540 kg. Gross vehicle weight within it ranges from 3,502 to 11,990 kg; here the F-750 sits at the top of that range with 11,900 kg. 5516 Ford models across 101 series are on record.

Ford Super Duty — where the heavy range begins: from the entry-level F-250 to the F-750, with the 6.7-litre Power Stroke diesel as the range's defining engine

Super Duty is not a trim line but a range of its own: Ford introduced it in 1998 for the 1999 model year, covering commercial trucks above 8,500 lb gross vehicle weight — around 3,900 kilograms. Everything below stays with the F-150 and its relatives.

Read on 4 more paragraphs

The number gives the class, not the size of the engine. The F-250 marks the entry to the range and is also its volume leader: for buyers needing more than a half-ton but not the dual rear wheels or higher ratings of an F-350 or F-450. Upwards the range runs to the F-750.

Manufacturing separates the classes too. The F-250 through F-550 are assembled at the Kentucky Truck Plant in Louisville; the heavy F-650 and F-750 at the Blue Diamond plant in Mexico. Comparing two vehicles, do not assume an F-750 is simply a larger F-250 — these are different vehicle concepts under one name.

The engine that defines the range is the 6.7-litre Power Stroke diesel. In standard form it produces 475 hp and 1,050 lb-ft of torque; the High-Output version 500 hp and 1,200 lb-ft. For payload context: an F-150 tops out near 2,440 lb, an F-250 carries more than 4,200 lb.

Under European registration logic, vehicles of this gross weight (3,502 to 11,990 kg) fall into class N2 (3.5 to 12 t); their commercial use requires, depending on weight, a category C1 or C driving licence, plus a tachograph, driving and rest times and, in many European countries, a distance-based toll. As straight pick-ups and cab-chassis without a fifth-wheel coupling, they remain rigid vehicles, not tractor units.

Sources: SpecCodex register, model data: Ford Lkw Klasse N2

Technical data

Engine

Cylinders8correct
Displacement6,653 cm³correct

Dimensions and weights

Length7,160 mmcorrect
Width2,490 mmcorrect
Wheelbase4,640 mmcorrect
Unladen weight6,481 kgcorrect
Gross vehicle weight11,900 kgcorrect

Drivetrain and chassis

Wheels6correct
Top speed90 km/hcorrect

Frequently asked questions

How much does the Ford F-750 weigh?

The unladen weight is 6,481 kg.

What is the gross vehicle weight of the Ford F-750?

11,900 kg.

What engine does the Ford F-750 have?

8 cylinders, 6,653 cm³ displacement.

How fast does the Ford F-750 go?

Top speed is 90 km/h.

What are the dimensions of the Ford F-750?

7,160 mm × 2,490 mm.

When was the Ford F-750 built?

Production years: 2016.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
