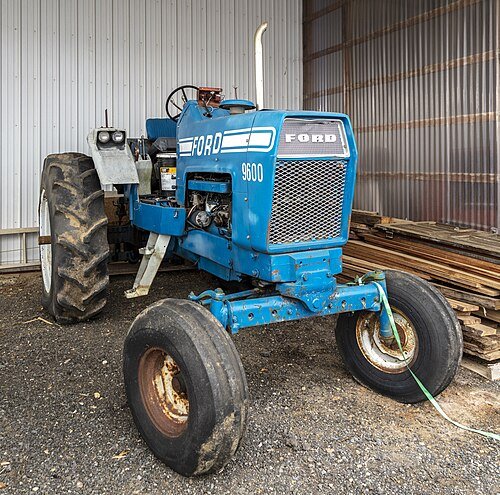

Ford 9600 – specifications
Built: 1972-1978 · Series: Other models
Data for the version built 1972-1978 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1972
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford – other models: the collective page of tractors outside the named ranges, from the Thousand series through the 10 series to the articulated tractors with Cummins and Caterpillar engines, 10 to 300 kW
This page gathers the Ford tractors the register could not assign to a named range – from small utility tractors of the North American and British plants to the heavy articulated tractors of the Versatile brand, taken over by Ford in the late 1980s. Ford had built farm tractors since 1917, first in Dearborn, from the 1930s also in Dagenham, England; the post-war 600 to 900 models led in 1965 into the Thousand series (2000, 3000, 4000, 5000), replaced in 1975 by the generation with a leading 0. From 1981 came the 10 series (2110 to 8210), in which the first two digits give the size and the last the generation; SU marks the narrow-track Utility version. The big articulated tractors, formerly built under the Versatile name in Winnipeg, ran from 1987 as the Ford FW with Cummins and Caterpillar engines; after the merger with New Holland in 1991 the independent Ford range ended.
Read on 3 more paragraphs
The register lists here 237 versions with 9.7 to 300 kW from two- to eight-cylinders of 1,390 to 14,801 cm³, PTO outputs up to 163 hp, unladen weights from 1,061 to 14,200 kg, gross weights from 2,280 to 11,400 kg, lengths from 2,410 to 7,600 mm and widths from 1,070 to 2,845 mm; the engines are mostly Ford's own, Cummins and Caterpillar in the big articulated tractors.
For decades Ford was, alongside International Harvester, Massey Ferguson and John Deere, one of the best-selling tractor brands of North America and Europe, focused on utility tractors for family farms; the FW-range articulated tractors competed in the top power segment with Steiger and Case IH.
On used tractors, engine condition, clutch and gearbox synchros count on the older ranges, hydraulics and electrics on the 10 series, and on the articulated tractors operating hours, condition of the four-wheel drive and tyres, and parts supply for the Cummins or Caterpillar engines, which today runs outside the Ford network.
Sources: SpecCodex register, model data: Ford (weitere Modelle), New Holland (Rechtsnachfolger von Ford New Holland)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 135 hp (101.5 kW)correct |
| Rated speed | 2,220 rpmcorrect |
| Rated speed | 2.220/mincorrect |
| Cylinders | 6correct |
| Cylinders | 6 Hubraumcorrect |
| Displacement | 6,578 cm³correct |
| Cooling | water-cooledcorrect |
| Cooling system | water-cooledcorrect |
Dimensions and weights
| Length | 3,835 mmcorrect |
|---|---|
| Width | 2,314 mmcorrect |
| Height | 2,972 mmcorrect |
| Wheelbase | 2,324 mmcorrect |
| Ground clearance | 685 mmcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Gearbox | 12 V/4 R or 16 V/4 Rcorrect |
| Turning radius | 3,962 mmcorrect |
| Drive type | Heck-correct |
| Construction type | unit construction (no separate frame)correct |
Working data
| Fuel tank capacity | 163 lcorrect |
|---|
Origin and approval
| Plant | USA, Antwerp, Netherlandscorrect |
|---|---|
| Production period | 1,972correct |
| Type | 401 DFTcorrect |
| Series/Model | 9,600correct |
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
| Top speed | 25 odercorrect |
Frequently asked questions
How much power does the Ford 9600 have?
The Ford 9600 delivers 135 hp.
What engine does the Ford 9600 have?
6 cylinders, 6,578 cm³ displacement, Diesel.
What are the dimensions of the Ford 9600?
3,835 mm × 2,314 mm × 2,972 mm.
When was the Ford 9600 built?
Production years: 1972-1978.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
