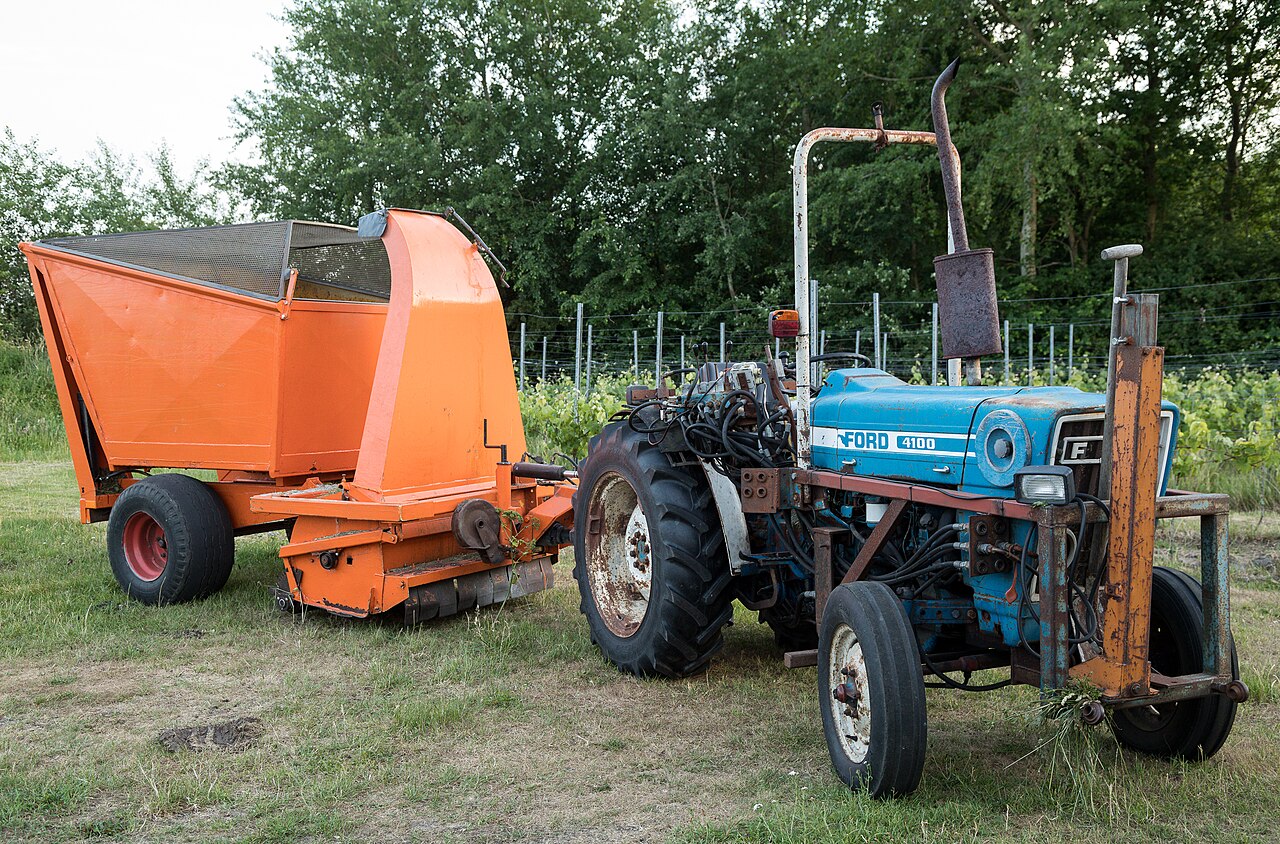

Ford 4100 – specifications
Series: Other models
Build year not documented · Data origin: Official register, Reference work (Wikipedia/Wikibooks) · sources
← Predecessor: 4000
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford – other models: the collective page of tractors outside the named ranges, from the Thousand series through the 10 series to the articulated tractors with Cummins and Caterpillar engines, 10 to 300 kW
This page gathers the Ford tractors the register could not assign to a named range – from small utility tractors of the North American and British plants to the heavy articulated tractors of the Versatile brand, taken over by Ford in the late 1980s. Ford had built farm tractors since 1917, first in Dearborn, from the 1930s also in Dagenham, England; the post-war 600 to 900 models led in 1965 into the Thousand series (2000, 3000, 4000, 5000), replaced in 1975 by the generation with a leading 0. From 1981 came the 10 series (2110 to 8210), in which the first two digits give the size and the last the generation; SU marks the narrow-track Utility version. The big articulated tractors, formerly built under the Versatile name in Winnipeg, ran from 1987 as the Ford FW with Cummins and Caterpillar engines; after the merger with New Holland in 1991 the independent Ford range ended.
Read on 3 more paragraphs
The register lists here 237 versions with 9.7 to 300 kW from two- to eight-cylinders of 1,390 to 14,801 cm³, PTO outputs up to 163 hp, unladen weights from 1,061 to 14,200 kg, gross weights from 2,280 to 11,400 kg, lengths from 2,410 to 7,600 mm and widths from 1,070 to 2,845 mm; the engines are mostly Ford's own, Cummins and Caterpillar in the big articulated tractors.
For decades Ford was, alongside International Harvester, Massey Ferguson and John Deere, one of the best-selling tractor brands of North America and Europe, focused on utility tractors for family farms; the FW-range articulated tractors competed in the top power segment with Steiger and Case IH.
On used tractors, engine condition, clutch and gearbox synchros count on the older ranges, hydraulics and electrics on the 10 series, and on the articulated tractors operating hours, condition of the four-wheel drive and tyres, and parts supply for the Cummins or Caterpillar engines, which today runs outside the Ford network.
Sources: SpecCodex register, model data: Ford (weitere Modelle), New Holland (Rechtsnachfolger von Ford New Holland)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 45 hp (39.7 kW)correct |
| Rated speed | 2.200/mincorrect |
| Cylinders | 3 Hubraumcorrect |
| Cooling | water-cooledcorrect |
| Cooling system | water-cooledcorrect |
Dimensions and weights
| Length | 3,429 mmcorrect |
|---|---|
| Width | 1,740 mmcorrect |
| Height | 2,280 mmcorrect |
| Wheelbase | 1,969 mmcorrect |
| Ground clearance | 560 mmcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Top speed | 30 km/hcorrect |
| Turning radius | 3,230 mmcorrect |
| Drive type | Heck-correct |
| Construction type | unit construction (no separate frame)correct |
Origin and approval
| Production period | 1,975correct |
|---|---|
| Type | 183 DFcorrect |
| Series/Model | 4,100correct |
Other data
| Predecessor | Ford 4000correct |
|---|
Frequently asked questions
How much power does the Ford 4100 have?
The Ford 4100 delivers 45 hp.
How fast does the Ford 4100 go?
Top speed is 30 km/h.
What are the dimensions of the Ford 4100?
3,429 mm × 1,740 mm × 2,280 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 26 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
