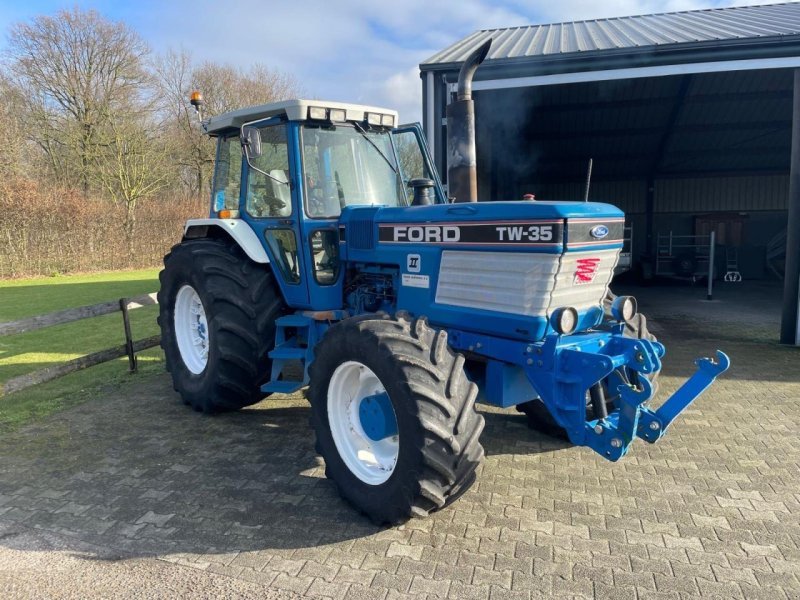

Ford New Holland TW-35
Built: 1983–1989 · Series: TW-Baureihe
More machines from model year 1983
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford New Holland TW series: upgraded large tractors after the merger with New Holland, TW-25 and TW-35 with six-cylinder engines, 113 to 137 kW / around 155 to 185 hp, built from the late 1980s
After Ford's 1991 merger with New Holland, the heavy tractor series continued as the Ford New Holland TW, replacing the earlier Ford TW generation with more powerful engines. The TW-25 and TW-35 listed here continue their predecessors' type logic, in which the number marks the power class, but now carry the new dual brand on the bonnet and cab. They continued to be built at the long-standing Antwerp, Belgium, and Basildon, England, plants.
Read on 3 more paragraphs
The register lists 2 versions here with 113.3 to 136.8 kW from six-cylinder engines of 6,582 cm³, torque of 550 to 680 Nm at a rated speed of 2,200 rpm, and operating weights of 6,740 to 7,412 kg, with a length of 4,854 mm, a width of 2,123 mm and a height of 2,895 mm.
As a more powerful continuation of the TW series, the TW-25 and TW-35 remained aimed at large arable farms and competed directly with John Deere's 40 and 50 series, Case-IH's Magnum, and Massey Ferguson's 3600 series. With four-wheel drive and larger tyres, both models suited heavy tillage as well as work with wide mounted implements and trailers.
When buying used, attention should go to the condition of the clutch and transmission, the tightness of the hydraulics, rust on the fenders and cab floor, and the front axle bearings, along with a visual check of the cab suspension, which was part of the comfort equipment on this series; since New Holland continued parts supply, engine and wear parts remain well available through the New Holland network.
Sources: SpecCodex register, model data: Ford New Holland TW-Baureihe, New Holland (Nachfolgemarke, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 186 hp (136.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 680 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,582 cm³correct |
| Compression ratio | 15.6correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,854 mmcorrect |
|---|---|
| Width | 2,123 mmcorrect |
| Height | 2,895 mmcorrect |
| Wheelbase | 2,807 mmcorrect |
| Ground clearance | 427.5 mmcorrect |
| Unladen weight | 7,412 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 16 V/4 Rcorrect |
| Front tyres | 11.00-16 ASF (A: 16.9-28 AS)correct |
| Rear tyres | 20.8-38 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.5 kW/t (137 kW / 7.4 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford New Holland TW-35 have?
The Ford New Holland TW-35 delivers 186 hp.
How much does the Ford New Holland TW-35 weigh?
The unladen weight is 7,412 kg.
What engine does the Ford New Holland TW-35 have?
6 cylinders, 6,582 cm³ displacement, Diesel.
How fast does the Ford New Holland TW-35 go?
Top speed is 30 km/h.
What are the dimensions of the Ford New Holland TW-35?
4,854 mm × 2,123 mm × 2,895 mm.
When was the Ford New Holland TW-35 built?
Production years: 1983–1989.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
