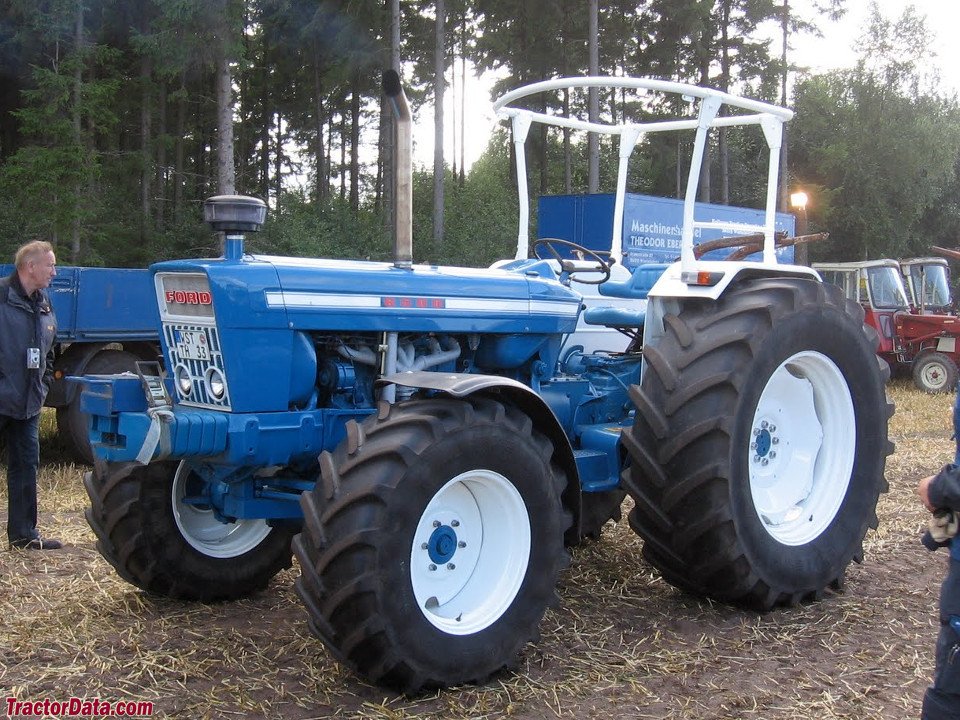

Ford/eva 6.500 S (A)
Built: 1970–1975 · Series: 1000 er-Baureihe
More machines from model year 1970
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford/EVA 1000-series – the 6.500 S (A) and 7400: six-cylinder diesel of 6,160 cm³, 73.5 to 82.4 kW, unladen weight 3,650 to 3,750 kg
Ford built its European farm tractors of this generation at plants in Basildon, England, and Antwerp, Belgium. The 6.500 S and 7400 types of this range carry six-cylinder engines of identical displacement and thus sit in the top power segment of Ford's model range of the time; the S suffix on the 6.500 S marks a higher-specification version.
Read on 3 more paragraphs
The register lists here 2 versions with 73.5 to 82.4 kW from six-cylinder engines of 6,160 cm³ displacement and 370 Nm of torque, with unladen weights from 3,650 to 3,750 kg, lengths from 3,900 to 4,520 mm, widths from 1,950 to 2,030 mm and a height of 2,400 mm.
With the same displacement in both types and an output spread from around 73 to 82 kW, the range marked two development stages of a shared six-cylinder engine at the top of Ford's line-up for large arable farms and agricultural contractors, competing there with comparable models from Massey Ferguson and International Harvester in the same power class.
When buying used, check operating hours and condition of the six-cylinder engine, the condition of the clutch and gearbox under heavy load, rust on mudguards and bonnet, and the tightness of the hydraulics. Equally important is the condition of the tyres and brakes. Spares for this Ford range come through dealers specialising in classic tractors.
Sources: SpecCodex register, model data: Ford/eva 1000 er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 112 hp (82.4 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,160 cm³correct |
| Compression ratio | 16.5correct |
| Injection pressure | 192 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,520 mmcorrect |
|---|---|
| Width | 2,030 mmcorrect |
| Height | 2,400 mmcorrect |
| Wheelbase | 2,550 mmcorrect |
| Ground clearance | 540 mmcorrect |
| Unladen weight | 3,650 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 Rcorrect |
| Front tyres | 7.50-20 ASF (A: 10-24 AS)correct |
| Rear tyres | 14-34 AScorrect |
| Top speed | 27 km/hcorrect |
Origin and approval
| Construction | unit construction with subframecorrect |
|---|
Where this model stands
Power-to-weight ratio: 22.6 kW/t (82 kW / 3.6 t)
Power class: Large (100–180 hp)
Stronger than 72% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford/eva 6.500 S (A) have?
The Ford/eva 6.500 S (A) delivers 112 hp.
How much does the Ford/eva 6.500 S (A) weigh?
The unladen weight is 3,650 kg.
What engine does the Ford/eva 6.500 S (A) have?
6 cylinders, 6,160 cm³ displacement, Diesel.
How fast does the Ford/eva 6.500 S (A) go?
Top speed is 27 km/h.
What are the dimensions of the Ford/eva 6.500 S (A)?
4,520 mm × 2,030 mm × 2,400 mm.
When was the Ford/eva 6.500 S (A) built?
Production years: 1970–1975.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
