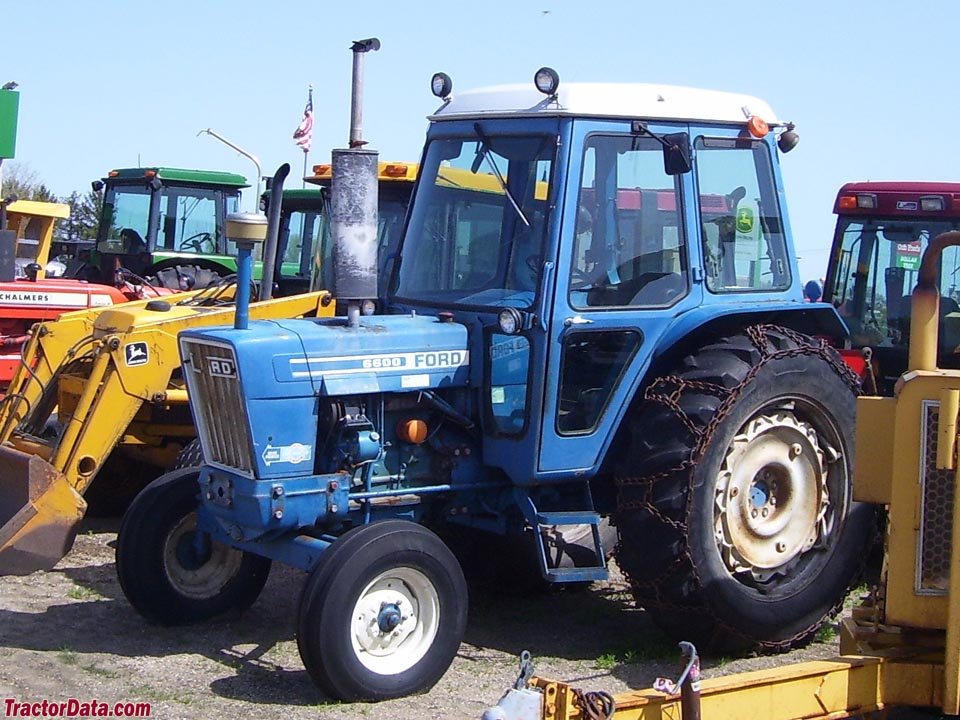

Ford 6600 (A)
Built: 1975–1981 · Series: 600 er-Baureihe
More machines from model year 1975
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford 2600 to 6600 (1975-1981) – the second generation of the British range from Basildon: the first digit as size class, three- and four-cylinder diesels, 28 to 57 kW, up to 3.25 t service weight
Ford's second '600 series' generation replaced the first Thousand range (2000 to 7000) from 1975 and, like it, was built at the British Basildon plant in Essex, which Ford had run since the 1960s as the centre of its European tractor manufacturing. The type logic orders the size by the first digit in ascending order: the 2600 is the smallest, the 6600 the largest machine in this selection, the 4100 stands as its own intermediate size, while the middle digit 6 marks the second generation against the zeros of the Thousand series. The smaller models run three-cylinder, the larger four-cylinder engines, throughout as direct-injection diesels.
Read on 3 more paragraphs
The register lists 5 versions with engines of 2,588 to 4,188 cm³, outputs of 27.9 to 57.4 kW and rated speeds of 2,000 to 2,200 rpm. Service weights range from 1,731 to 3,250 kg, lengths from 3,226 to 3,651 mm, widths from 1,664 to 2,070 mm and heights from 2,248 to 2,540 mm.
The range covered the mid segment of European farm tractors at the time, between small compacts and the big field tractors of the 7000 and 8000 class; competition came chiefly from Massey Ferguson, International Harvester and the home-grown David Brown line. After 1981 the '10 Series' (2610 to 8210) succeeded this generation, with engine and gearbox surviving at their core.
On used tractors, operating hours, the condition of clutch and gearbox, hydraulic pump, linkage and PTO, rust on wings, brakes and front axle count, along with parts supply, which usually runs without problems through New Holland as legal successor to Ford Tractor Operations.
Sources: SpecCodex register, model data: Ford 600er-Baureihe, New Holland (Rechtsnachfolger Ford Tractor Operations)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 78 hp (57.4 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,188 cm³correct |
| Stroke | 1.06, 68 mmcorrect |
| Compression ratio | 16.3correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,651 mmcorrect |
|---|---|
| Width | 1,750 mmcorrect |
| Height | 2,540 mmcorrect |
| Wheelbase | 2,524 mmcorrect |
| Ground clearance | 450 mmcorrect |
| Unladen weight | 3,250 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 R or 16 V/2 Rcorrect |
| Front tyres | 7.50-18 ASF (A: 10-24 AS)correct |
| Rear tyres | 14-34 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 17.7 kW/t (57 kW / 3.2 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford 6600 (A) have?
The Ford 6600 (A) delivers 78 hp.
How much does the Ford 6600 (A) weigh?
The unladen weight is 3,250 kg.
What engine does the Ford 6600 (A) have?
4 cylinders, 4,188 cm³ displacement, Diesel.
How fast does the Ford 6600 (A) go?
Top speed is 25 km/h.
What are the dimensions of the Ford 6600 (A)?
3,651 mm × 1,750 mm × 2,540 mm.
When was the Ford 6600 (A) built?
Production years: 1975–1981.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
