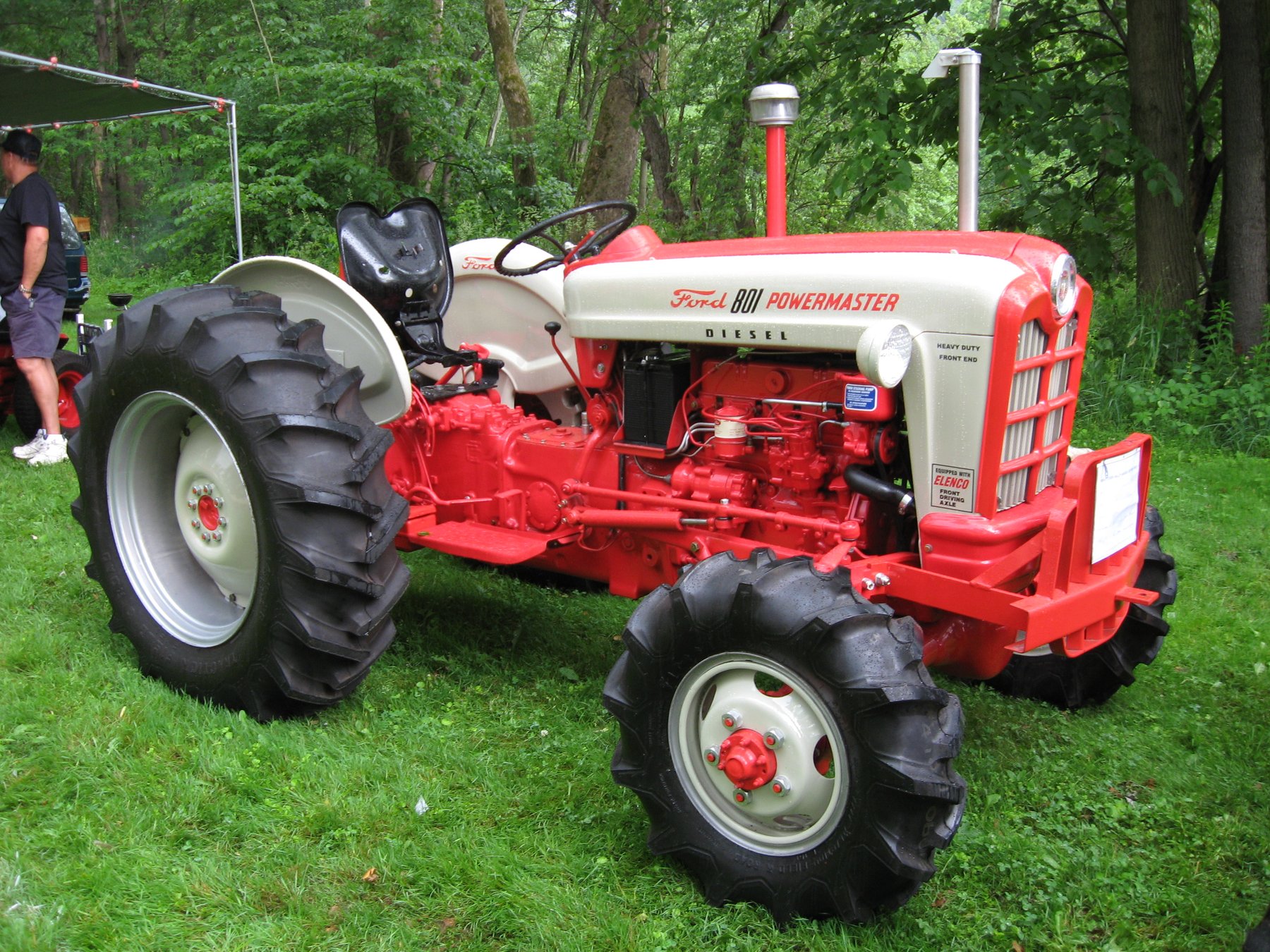

Ford 801 Powermaster

Built: 1958–1962 · Series: 101 er-Baureihe

More machines from model year 1958

Source: https://commons.wikimedia.org/wiki/File:Ford_861-D_Powermast

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 101er series from Ford includes the 801 Powermaster. Production: 1958–1962. The engine delivers 62.6 hp (46.1 kW), has 4 cylinders, with a displacement of 2,819 cm³. Torque is 225 Nm. The machine is 3,069 mm long, 1,623 mm wide and 1,446 mm high. The unladen weight is 1,581 kg. The wheelbase measures 1,892 mm. Ground clearance is 533 mm. Top speed is 28 km/h. Transmission: 4 V/1 R, 5 V/1 R, 10 V/2 R and 12 V/3 R. The engine is water-cooled. Tyres: front 6.00-16 ASF, rear 12-28 AS. The fuel is Benzin/LPG/Diesel. The bore measures 99.06 mm. The stroke is 91.44 mm. Maximum torque is reached at 1,600 rpm. Construction: unit construction (no separate frame). Rated output across the Ford range ranges from 23.5 to 268.8 hp; the 801 Powermaster sits in the lower part of that range with 62.6 hp. Its immediate neighbours are the 5000 (A) below it with 62 hp and the 6000 above it with 65.4 hp. Rated output across the Ford range ranges from 17.3 to 197.7 kW; here the 801 Powermaster sits in the lower part of that range with 46.1 kW. 5516 Ford models across 101 series are on record.

Ford 101-series – Workmaster and Powermaster: the 741/771 and 801, offered in petrol, LPG or diesel form, 35.6 to 46.1 kW

Ford's 101-series comprises, with the 741/771 Workmaster and 801 Powermaster, two types from the Workmaster/Powermaster family, whose name suffixes denote the power class: Workmaster designated the lighter, Powermaster the more powerful versions. Both types were available with a choice of petrol, LPG or diesel engine. Both types were built in large numbers and shaped the look of many North American and European arable farms of their time.

Read on 3 more paragraphs

The register lists here 2 versions with 35.6 to 46.1 kW from four-cylinder engines of 2,190 to 2,819 cm³ displacement and 164 to 225 Nm of torque, with unladen weights from 1,542 to 1,581 kg, lengths from 3,069 to 3,353 mm, widths from 1,623 to 1,821 mm and heights from 1,446 to 1,653 mm.

With the choice between petrol, LPG and diesel engines, this range was aimed at farms for which different fuel types were available in the same chassis depending on local fuel supply and running costs, an offering typical of Ford tractors of the time.

When buying used, check the fuel type of the given engine and its condition, rust on body panels and mudguards, the condition of the clutch and gearbox, and the tightness of the hydraulics. The function of the PTO and belt pulley is also worth checking closely when buying used. Spares for this Ford range come through dealers specialising in classic tractors.

Sources: SpecCodex register, model data: Ford 101 er-Baureihe

Technical data

Engine

Fuel	Benzin/LPG/Dieselcorrect
Power	62.6 hp (46.1 kW)correct
Rated speed	2.000/2.200 rpmcorrect
Torque	225 Nmcorrect
Speed at max. torque	1,600 rpmcorrect
Cylinders	4correct
Displacement	2,819 cm³correct
Bore	99.06 mmcorrect
Stroke	91.44 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,069 mmcorrect
Width	1,623 mmcorrect
Height	1,446 mmcorrect
Wheelbase	1,892 mmcorrect
Ground clearance	533 mmcorrect
Unladen weight	1,581 kgcorrect

Drivetrain and chassis

Drive	rear-wheel drivecorrect
Gearbox	4 V/1 R, 5 V/1 R, 10 V/2 R and 12 V/3 Rcorrect
Front tyres	6.00-16 ASFcorrect
Rear tyres	12-28 AScorrect
Top speed	28 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 29.2 kW/t (46 kW / 1.6 t)

Power class: Universal (40–100 hp)

Stronger than 44% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Ford 801 Powermaster have?

The Ford 801 Powermaster delivers 62.6 hp.

How much does the Ford 801 Powermaster weigh?

The unladen weight is 1,581 kg.

What engine does the Ford 801 Powermaster have?

4 cylinders, 2,819 cm³ displacement, Benzin/LPG/Diesel.

How fast does the Ford 801 Powermaster go?

Top speed is 28 km/h.

What are the dimensions of the Ford 801 Powermaster?

3,069 mm × 1,623 mm × 1,446 mm.

When was the Ford 801 Powermaster built?

Production years: 1958–1962.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
