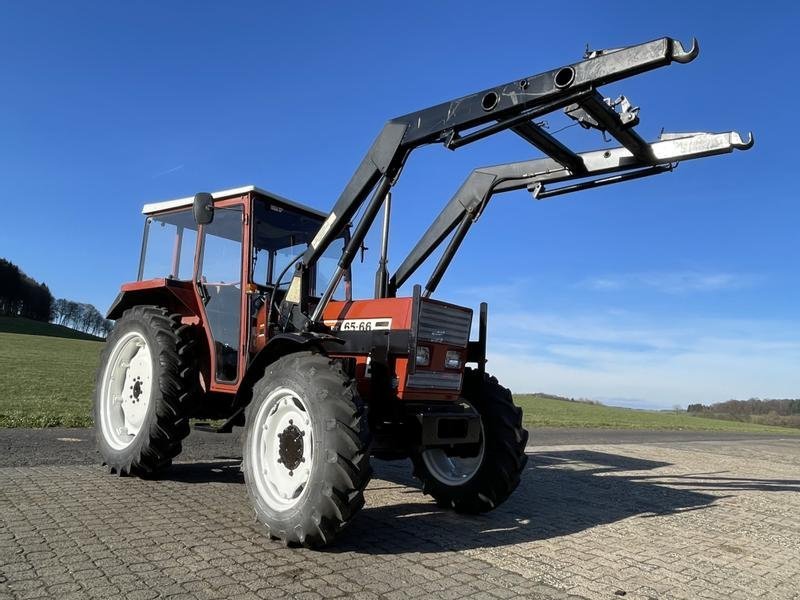

Fiatgeotech 65-56 LM (DT)

Built: from 1988 · Series: 56 er-Baureihe

More machines from model year 1988

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Fiatgeotech 65-56 LM (DT) belongs to the 56er series. The engine delivers 65 hp (47.8 kW), has 4 cylinders, with a displacement of 3,613 cm³. Torque is 205 Nm. Rated speed is 2,500 rpm. The machine is 3,600 mm long, 1,820 mm wide and 2,420 mm high. The unladen weight is 2,270 kg. The wheelbase measures 2,167 mm. Ground clearance is 480 mm. Top speed is 30 km/h. Transmission: 8V/2R or 12V/3R. The engine is water-cooled. Tyres: front 7.50-16 ASF (DT: 9.5 R 24 AS), rear 16.9 R 30 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 115 mm. The compression ratio is 17:1. Maximum torque is reached at 1,100 rpm. Construction: unit construction (no separate frame). The 56 er-Baureihe series covers 4 models. Rated output within it ranges from 55 to 70 hp; the 65-56 LM (DT) sits in the upper part of that range with 65 hp. Its immediate neighbours are the 60-56 LM (DT) below it with 60 hp and the 70-56 LM (DT above it with 70 hp. Unladen weight within it ranges from 2,140 to 2,430 kg; here the 65-56 LM (DT) sits in the middle of that range with 2,270 kg. 4 Fiatgeotech models are on record.

Fiatgeotech 56 series – field tractors of the early 1990s: three- and four-cylinder diesels at 2,710 to 3,613 cc, 40.4 to 51.5 kW, types 55-56, 60-56, 65-56 and 70-56 LM (DT)

Fiatgeotech was, from 1988 to 1993, the name of Fiat's agricultural machinery division before the brand was absorbed into New Holland following the merger with Ford New Holland. The 56 series covered the types 55-56, 60-56, 65-56 and 70-56 LM during this transitional period, with the leading number denoting the power class and the 56 ending the series generation; the DT suffix, as on the older Fiat series, denotes the four-wheel-drive version.

Read on 3 more paragraphs

The register lists 4 versions with 40.4 to 51.5 kW from three- and four-cylinders of 2,710 to 3,613 cc displacement at a consistent 2,500 rpm; torque ranges from 173 to 222 Nm. Unladen weights lie between 2,140 and 2,430 kg, lengths between 3,480 and 3,640 mm, widths between 1,720 and 1,870 mm, and heights between 2,370 and 2,420 mm.

The 56 series tractors served medium-sized arable farms in the brief transitional phase between the old Fiat brand world and the new New Holland logic, competing directly with the contemporaneous Ford Geotech and early New Holland models.

On a used purchase, check the condition of the clutch and mechanical gearbox, the tightness of the hydraulics and the condition of the rear axle; on DT four-wheel-drive versions also the front-axle drive and propeller shafts, with parts now running through the New Holland network and independent agricultural machinery dealers.

Sources: SpecCodex register, model data: Fiatgeotech 56er-Baureihe

Technical data

Engine

Fuel	dieselcorrect
Power	65 hp (47.8 kW)correct
Rated speed	2,500 rpmcorrect
Torque	205 Nmcorrect
Speed at max. torque	1,100 rpmcorrect
Cylinders	4correct
Displacement	3,613 cm³correct
Bore	100 mmcorrect
Stroke	115 mmcorrect
Compression ratio	17correct
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,600 mmcorrect
Width	1,820 mmcorrect
Height	2,420 mmcorrect
Wheelbase	2,167 mmcorrect
Ground clearance	480 mmcorrect
Unladen weight	2,270 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	8V/2R or 12V/3Rcorrect
Front tyres	7.50-16 ASF (DT: 9.5 R 24 AS)correct
Rear tyres	16.9 R 30 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 21.1 kW/t (48 kW / 2.3 t)

Power class: Universal (40–100 hp)

Stronger than 44% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fiatgeotech 65-56 LM (DT) have?

The Fiatgeotech 65-56 LM (DT) delivers 65 hp.

How much does the Fiatgeotech 65-56 LM (DT) weigh?

The unladen weight is 2,270 kg.

What engine does the Fiatgeotech 65-56 LM (DT) have?

4 cylinders, 3,613 cm³ displacement, Diesel.

How fast does the Fiatgeotech 65-56 LM (DT) go?

Top speed is 30 km/h.

What are the dimensions of the Fiatgeotech 65-56 LM (DT)?

3,600 mm × 1,820 mm × 2,420 mm.

When was the Fiatgeotech 65-56 LM (DT) built?

Production years: 1988–??.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
