Fiatagri G 190 – specifications
Built: 1993–2002 · Series: G-Baureihe
The G series from Fiatagri includes the G 190. Production: 1993–2002. The engine delivers 190 hp (139.8 kW), has 6 cylinders, with a displacement of 7,485 cm³. Torque is 857 Nm. Rated speed is 2,100 rpm. The machine is 5,426 mm long, 2,845 mm wide and 3,118 mm high. The unladen weight is 8,748 kg. The wheelbase measures 3,115 mm. Ground clearance is 507 mm. Top speed is 30 km/h. The tank holds 416 litres. Transmission: 16V/9R or 18V/9R. The engine is water-cooled. Tyres: front 540/65 R 30 AS, rear 650/65 R 42 AS. The fuel is diesel. The bore measures 111.8 mm. The stroke is 127 mm. The compression ratio is 17.5:1. Maximum torque is reached at 1,380 rpm. Construction: unit construction (no separate frame). The linkage is category III/IIIN. Rated output across the Fiatagri range ranges from 35 to 190 hp; the G 190 sits at the top of that range with 190 hp. Its immediate neighbours are the 180-90 (DT) below it with 180 hp. Rated output across the Fiatagri range ranges from 43 to 190 hp; here the G 190 sits at the top of that range with 190 hp. 137 Fiatagri models across 14 series are on record.
Data for the version built 1993–2002 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1993
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

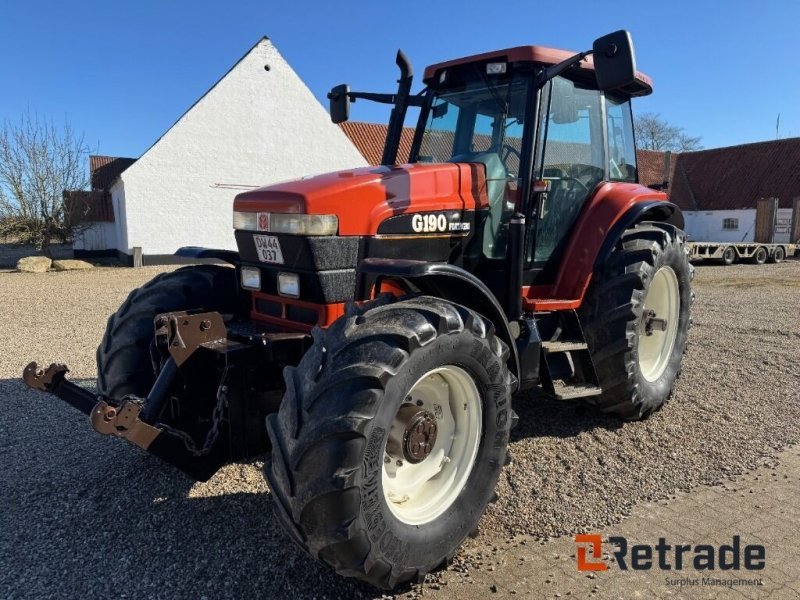

Fiatagri G 190: water-cooled six-cylinder diesel tractor from the G series, 7,485 cc, 139.8 kW and 8,748 kg weight, built 1993 to 2002
Fiatagri was the agricultural machinery brand of the Italian Fiat group, under which the tractor division operated independently before being absorbed into New Holland and later the CNH group. The G series formed the brand's upper power segment. The G 190 was built from 1993 to 2002.
Read on 3 more paragraphs
The G 190 is powered by a water-cooled six-cylinder diesel engine of 7,485 cc, producing 190 hp, or 139.8 kW, and 857 Nm of torque at 2,100 rpm. At a weight of 8,748 kg, a length of 5,426 mm, a height of 3,118 mm and a width of 2,845 mm, with a wheelbase of 3,115 mm, the machine ranks among the heaviest and most powerful wheeled tractors in the register; top speed is 30 km/h.
A six-cylinder engine of nearly 7.5 litres and almost 140 kW belongs to a different world of work than smaller three- or four-cylinder tractors: it is built for primary tillage with wide ploughs, cultivators and disc harrows on large arable areas, and for heavy trailer loads that call for high torque at low engine speed. A machine of this size is not intended for work with light mounted implements or for fast road travel.
When buying such a heavy and powerful tractor secondhand, the condition of the axles, final drives and tyres given the high weight, the tightness of the numerous hydraulic lines for implements and steering, and the condition of the cooling system for the large six-cylinder engine matter most. Also worth checking are the clutch and gearbox for wear caused by the high torque transmitted.
Sources: SpecCodex-Register: Kennwerte des Modells Fiatagri G 190
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 190 hp (139.8 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 857 Nmcorrect |
| Speed at max. torque | 1,380 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,485 cm³correct |
| Bore | 111.8 mmcorrect |
| Stroke | 127 mmcorrect |
| Compression ratio | 17.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,426 mmcorrect |
|---|---|
| Width | 2,845 mmcorrect |
| Height | 3,118 mmcorrect |
| Wheelbase | 3,115 mmcorrect |
| Ground clearance | 507 mmcorrect |
| Unladen weight | 8,748 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 16V/9R or 18V/9Rcorrect |
| Front tyres | 540/65 R 30 AScorrect |
| Rear tyres | 650/65 R 42 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 416 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat III/IIINcorrect |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 16 kW/t (140 kW / 8.7 t)
Power class: Heavy (> 180 hp)
Stronger than 90% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
