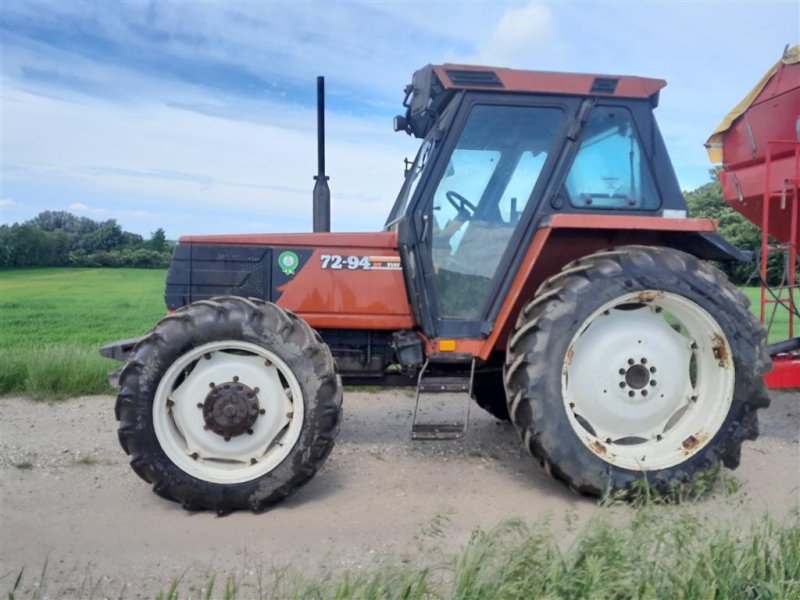

Fiatagri 72-94 (DT)

Built: 1993–1996 · Series: 94 er-Baureihe

More machines from model year 1993

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 72-94 (DT) from Fiatagri is part of the 94er series. Production: 1993–1996. The engine delivers 70 hp (51.5 kW), has 4 cylinders, with a displacement of 3,613 cm³. Torque is 224 Nm. Rated speed is 2,500 rpm. The machine is 3,550 mm long, 2,160 mm wide and 2,630 mm high. The unladen weight is 3,460 kg. The wheelbase measures 2,340 mm. Ground clearance is 510 mm. Top speed is 30 km/h. Transmission: 12V/12R or 24V/12R. The engine is water-cooled. Tyres: front 10.00-16 ASF (DT: 13.6 R 24 AS), rear 16.9 R 34 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 115 mm. The compression ratio is 17:1. Maximum torque is reached at 1,500 rpm. Construction: unit construction (no separate frame). Injection pressure is 230 bar. The 94 er-Baureihe series covers 3 models. Rated output within it ranges from 65 to 85 hp; the 72-94 (DT) sits in the lower part of that range with 70 hp. Its immediate neighbours are the 65-94 DT below it with 65 hp and the 88-94 (DT) above it with 85 hp. Unladen weight within it ranges from 3,250 to 3,530 kg; here the 72-94 (DT) sits in the upper part of that range with 3,460 kg. 137 Fiatagri models across 14 series are on record.

Fiatagri 94 range – the 65-94 to 88-94 DT from Modena: four-cylinder diesel with 51.5 to 62.6 kW, four-wheel drive, 3,250 to 3,530 kg weight

Fiatagri, the agricultural machinery division spun off from Fiat in 1974 with production in Modena, introduced the 94 range in the 1980s and early 1990s as a development of its farm tractor line-up. This page covers the three versions 65-94 DT, 72-94 (DT) and 88-94 (DT), where the first number indicates the approximate power class and the DT suffix stands for four-wheel drive (Doppia Trazione).

Read on 3 more paragraphs

The register lists 3 versions here with 51.5 to 62.6 kW rated output from a four-cylinder diesel engine of 3,613 to 3,908 cc displacement. Kerb weight ranges from 3,250 to 3,530 kg, length from 3,410 to 3,550 mm, width from 2,040 to 2,160 mm and height from 2,530 to 2,630 mm. Maximum torque ranges from 220 to 266 Nm at a rated speed of 2,500 rpm.

With standard four-wheel drive, the 94 range targeted farms with demanding soil and terrain conditions that needed extra traction for heavier tillage. In this power class of around 70 to 85 hp, Fiatagri competed with similarly positioned four-wheel-drive tractors from makers such as Same, Deutz-Fahr and Massey Ferguson.

When buying a used Fiatagri from the 94 range, check the condition of the front axle drive and transfer case, wear on the clutch and main gearbox, and corrosion on the frame and mudguards. Spare parts for this range are supplied by dealers in historic Fiatagri and New Holland agricultural machinery, as the model line technically lives on through the merger into New Holland.

Sources: SpecCodex register, model data: Fiatagri 94er-Baureihe, New Holland (Nachfolgemarke)

Technical data

Engine

Fuel	dieselcorrect
Power	70 hp (51.5 kW)correct
Rated speed	2,500 rpmcorrect
Torque	224 Nmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	4correct
Displacement	3,613 cm³correct
Bore	100 mmcorrect
Stroke	115 mmcorrect
Compression ratio	17correct
Injection pressure	230 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,550 mmcorrect
Width	2,160 mmcorrect
Height	2,630 mmcorrect
Wheelbase	2,340 mmcorrect
Ground clearance	510 mmcorrect
Unladen weight	3,460 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	12V/12R or 24V/12Rcorrect
Front tyres	10.00-16 ASF (DT: 13.6 R 24 AS)correct
Rear tyres	16.9 R 34 AScorrect
Top speed	30 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 14.9 kW/t (52 kW / 3.5 t)

Power class: Universal (40–100 hp)

Stronger than 48% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fiatagri 72-94 (DT) have?

The Fiatagri 72-94 (DT) delivers 70 hp.

How much does the Fiatagri 72-94 (DT) weigh?

The unladen weight is 3,460 kg.

What engine does the Fiatagri 72-94 (DT) have?

4 cylinders, 3,613 cm³ displacement, Diesel.

How fast does the Fiatagri 72-94 (DT) go?

Top speed is 30 km/h.

What are the dimensions of the Fiatagri 72-94 (DT)?

3,550 mm × 2,160 mm × 2,630 mm.

When was the Fiatagri 72-94 (DT) built?

Production years: 1993–1996.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
