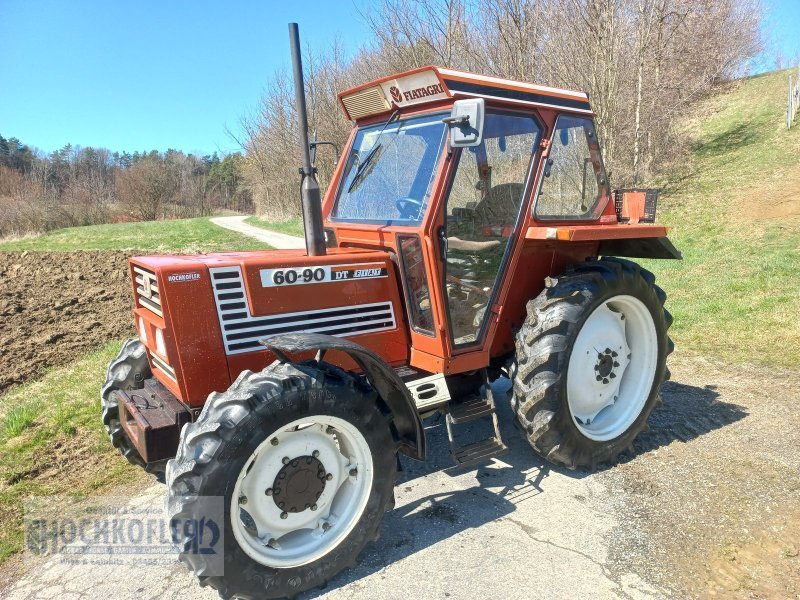

Fiatagri 60-90 (DT)
Built: 1984–1992 · Series: 90 er-Baureihe
More machines from model year 1984
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fiatagri 90 series (1984–1990s) – 55-90 to 180-90: the first number as hp, DT for four-wheel drive, the 180-90 with 8.1-litre turbo at the top, Modena and the Comfort cab, 41 to 133 kW
The 90 series was Fiatagri's programme of standard and large tractors from 1984 – the range that made Fiat Europe's largest tractor maker and whose design New Holland carried into the 35, 60 and 70 series after the 1991 merger. The type logic: the first number gives the output in hp, the 90 the series, DT stands for Doppia Trazione, four-wheel drive, Turbo for the turbocharged versions. The 55-90 to 90-90 are the three- and four-cylinders from the Modena plant, the 100-90 to 140-90 the six-cylinders, the 160-90 and 180-90 the large tractors with 8.1-litre turbo engine – around 1985 the 180-90 with 180 hp was Italy's strongest standard tractor.
Read on 3 more paragraphs
The register lists 13 versions with 40.5 to 132.5 kW, 2,710 to 8,102 cm³ with three to six cylinders, torque from 175 to 622 Nm, unladen weights from 2,780 to 6,330 kg, lengths from 3,733 to 4,820 mm, widths from 1,710 to 2,100 mm and heights from 2,510 to 2,930 mm – all diesel.
The 90s brought the Comfort cab with flat floor, the shuttle transmission and from 1988 the version with electronic linkage control; the six-cylinders are regarded as the most durable Fiat engines, and many 110-90 and 130-90 still run in Italy and Eastern Europe today.
On used tractors, operating hours, engine condition, transmission and shuttle, hydraulics and front axle on DT models and the cab, whose sheet metal rusts on older examples, are what count.
Sources: SpecCodex register, model data: Fiatagri 90er-Baureihe, Fiat Trattori/Fiatagri (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 60 hp (44.2 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Torque | 194 Nmcorrect |
| Speed at max. torque | 1,290 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,931 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,733 mmcorrect |
|---|---|
| Width | 1,929 mmcorrect |
| Height | 2,540 mmcorrect |
| Wheelbase | 2,227 mmcorrect |
| Ground clearance | 445 mmcorrect |
| Unladen weight | 2,810 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/4 R, 20 V/8 R and 12 V/12 Rcorrect |
| Front tyres | 6.00-16 ASF (DT: 9.5-24 AS)correct |
| Rear tyres | 16.9 R 28 AScorrect |
| Top speed | 30 km/hcorrect |
Where this model stands
Power-to-weight ratio: 15.7 kW/t (44 kW / 2.8 t)
Power class: Universal (40–100 hp)
Stronger than 42% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fiatagri 60-90 (DT) have?
The Fiatagri 60-90 (DT) delivers 60 hp.
How much does the Fiatagri 60-90 (DT) weigh?
The unladen weight is 2,810 kg.
What engine does the Fiatagri 60-90 (DT) have?
3 cylinders, 2,931 cm³ displacement, Diesel.
How fast does the Fiatagri 60-90 (DT) go?
Top speed is 30 km/h.
What are the dimensions of the Fiatagri 60-90 (DT)?
3,733 mm × 1,929 mm × 2,540 mm.
When was the Fiatagri 60-90 (DT) built?
Production years: 1984–1992.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
